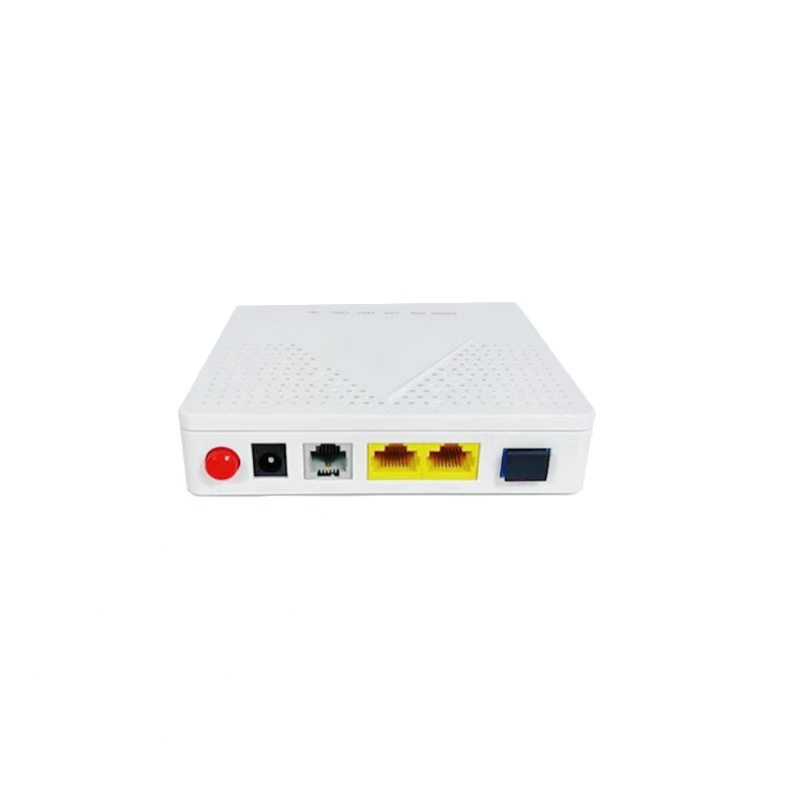

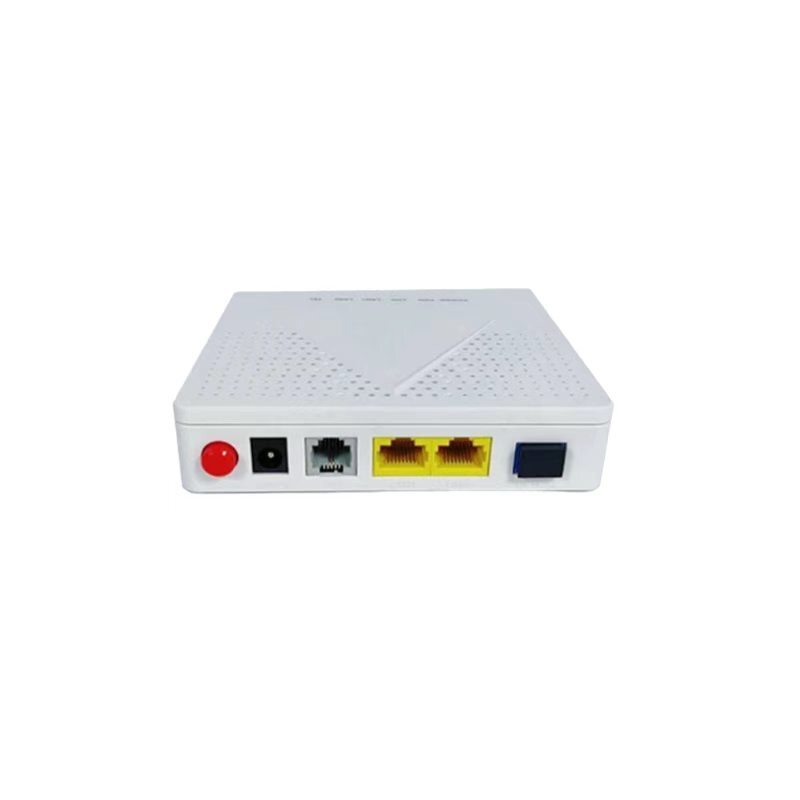

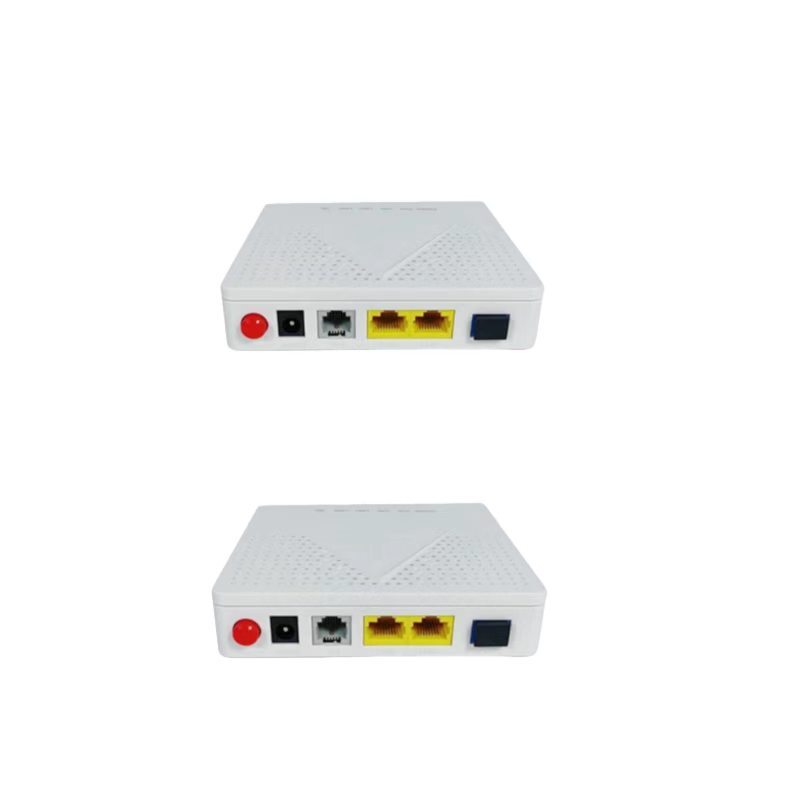

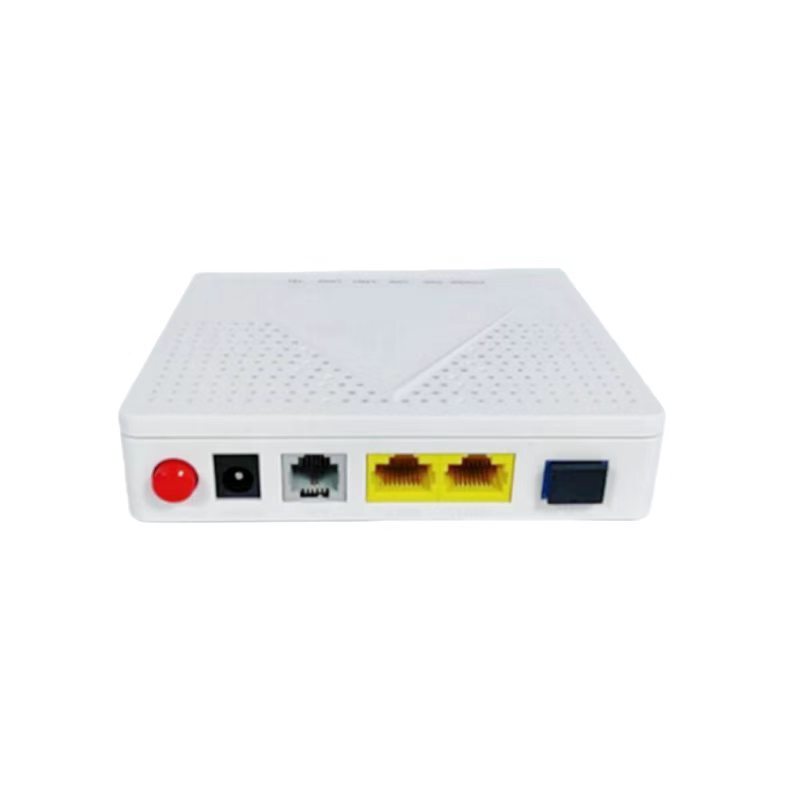

1GE+1FE+1Voice XPON ONU | Dual Mode GPON/EPON ONT with VoIP | SIP H.248

Description

The Flypon 1GE+1FE+1Voice XPON ONU is a versatile Optical Network Unit designed to deliver comprehensive triple-play services—high-speed internet and carrier-grade VoIP telephony—over a single fiber connection. Supporting both GPON and EPON modes with automatic detection, this XPON ONU features 1 Gigabit Ethernet port for high-bandwidth devices, 1 Fast Ethernet port for IPTV or secondary data, and 1 FXS voice port for analog telephone connectivity. It is the ideal CPE solution for ISPs and telecom operators deploying converged FTTH networks.

Key Features :

· True XPON Dual Mode: Built with a dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. One XPON ONU model simplifies inventory management for mixed-network deployments.

· Triple-Play Service Ready: Equipped with 1 x 10/100/1000Mbps GE port, 1 x 10/100Mbps FE port, and 1 x FXS POTS port. This 1GE+1FE+1Voice XPON ONU supports simultaneous high-speed data, IPTV streaming, and crystal-clear VoIP calling.

· Carrier-Grade VoIP Functionality: The integrated FXS port supports both SIP (Session Initiation Protocol) and H.248/MEGACO protocols, ensuring broad compatibility with major softswitch platforms. Features include G.711/G.729 codec support, T.38/T.30 fax over IP, caller ID, call waiting, and three-way conferencing.

· Comprehensive OLT Interoperability: Fully compatible with leading OLT vendors including Huawei, ZTE, Nokia, and FiberHome. Supports standard OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling remote provisioning and fault management.

• Product Features




  1.Plug and play, auto discovery, configuration and upgrade.

  2.Support OAM remote configuration management function.

  3.Optical port has the function of optical power detection,optical transmission cut off etc.

  4.Provide fail alarm interrupt signal.

  5.High speed forwarding: : 900 Mbit/ /s s forwarding in the NAT scenario.

  6.IPv6 6 Capability:support IPv6 6/ / IPv4 4 dual stack and DS - Lite.

  7.It can interflow well with Broadcom, PMC,Cortina and other OLT equpment .


•

•

•


· Model: 1GE+1FE+1Voice XPON ONU – Triple-Play Fiber Terminal for Data & Voice

· Optical Interface: SC/APC or SC/UPC (Single Fiber)

· XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

· Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up

· User Interfaces: 1 × 10/100/1000M RJ45 (GE) / 1 × 10/100M RJ45 (FE) / 1 × FXS RJ11 (Voice)

· VoIP Protocols: SIP (RFC 3261) / H.248

· Voice Codecs: G.711 a/μ-law, G.729, G.723.1

· Fax Support: T.38 / T.30 (G.711 Pass-through)

· Optical Budget: Class B+ (28dB typical)

· Power Consumption: < 6W

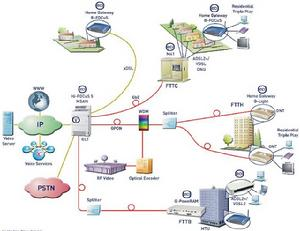

Application solution

Ordering Information

Looking for a reliable 1GE+1FE+1Voice XPON ONU to bundle with your FTTH voice and data packages? [Contact our sales team] for competitive wholesale pricing, samples, and interoperability documentation.

Q: Does this 1GE+1FE+1Voice XPON ONU work with my existing VoIP softswitch?

A: Yes. This XPON ONU supports both SIP and H.248 protocols, covering the vast majority of carrier softswitch platforms. We provide configuration guides for integration with BroadSoft, Metaswitch, Huawei IMS, and ZTE IMS platforms.

Q: Can I use both Ethernet ports simultaneously for different services?

A: Absolutely. The 1GE+1FE XPON ONU supports VLAN tagging (802.1Q) per port. Typically, the GE port is configured for high-speed internet data, while the FE port can be dedicated to IPTV or a separate VLAN for home office use. Each port operates independently at its maximum rated speed.

Q: Does the FXS port support fax and modem transmission?

A: Yes. The integrated FXS voice port on this XPON ONU supports T.38 FoIP (Fax over IP) as well as T.30 G.711 pass-through, ensuring reliable operation with standard fax machines, POS terminals, and analog modems.

Q: What is the difference between the GE port and the FE port on this device?

A: The GE (Gigabit Ethernet) port supports speeds up to 1000 Mbps, ideal for connecting to a high-speed WiFi router or gaming PC. The FE (Fast Ethernet) port supports speeds up to 100 Mbps, which is perfectly sufficient for IPTV set-top boxes or secondary devices that do not require gigabit throughput. This dual-port configuration on the 1GE+1FE+1Voice XPON ONU optimizes both performance and cost.
