10G 8 Port EPON OLT | Symmetric 10G EPON Optical Line Terminal | IEEE 802.3av Compact 8-PON Platform
Product Overview

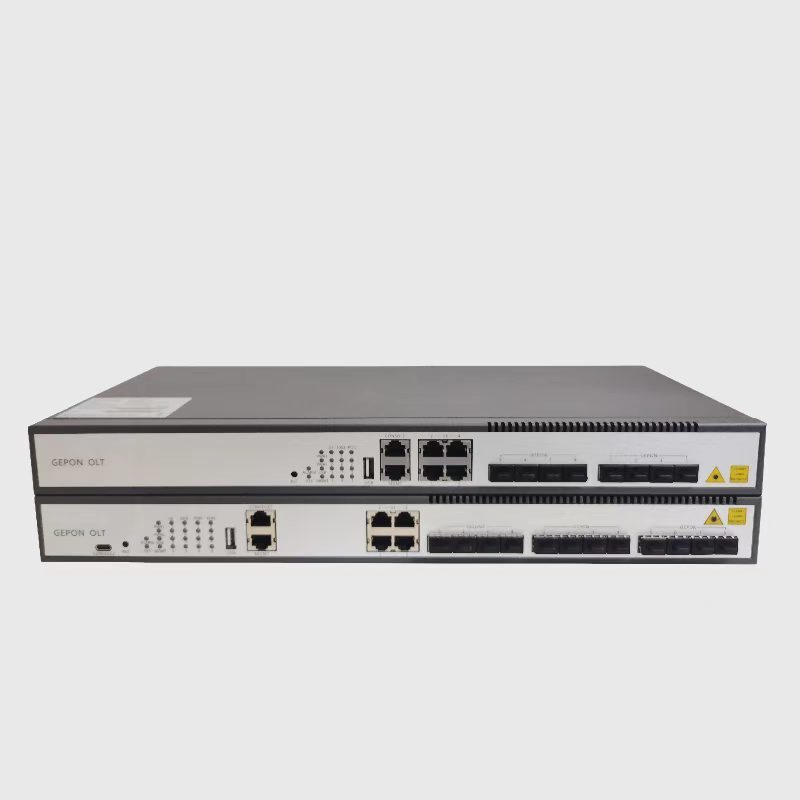

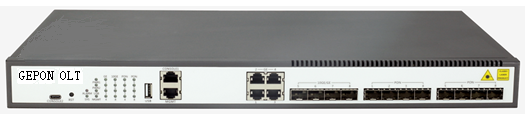

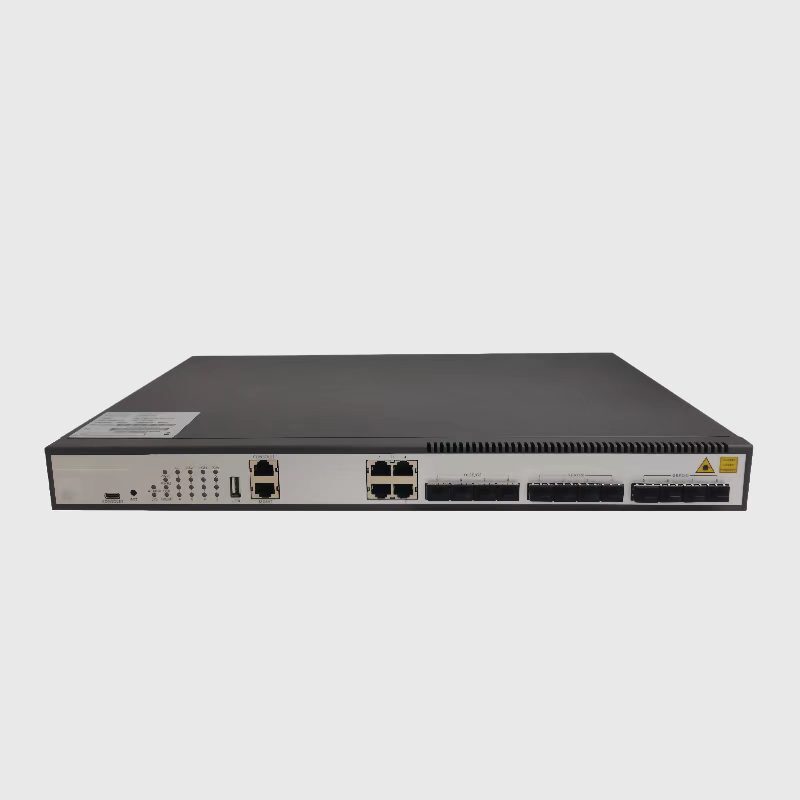

10G 8 Port EPON OLT – The Symmetric 10G Edge Platform for Next-Gen EPON Access
The Flypon 10G 8 Port EPON OLT is a compact yet powerful Optical Line Terminal built specifically for symmetric 10G Ethernet Passive Optical Network (10G-EPON) deployments. Fully compliant with the IEEE 802.3av standard, this 10G EPON OLT provides 8 independent 10G-EPON ports, each delivering full-duplex 10.3125 Gbps. Supporting a maximum split ratio of 1:128 per port, a single chassis can aggregate up to 1024 ONUs with true 10G upstream and downstream bandwidth. Designed for ISPs, mobile operators, and large campuses, this 8 port 10G EPON OLT is the ideal platform for future-proof services like 5G fronthaul/midhaul, ultra-high-definition IPTV, and multi-gigabit enterprise connectivity .
Key Features :
Full IEEE 802.3av 10G-EPON Compliance: Built on a dedicated 10G-EPON MAC, this 10G 8 port EPON OLT ensures seamless interoperability with all standard 10G-EPON ONUs. It supports dual-rate operation for backward compatibility with 1G EPON ONUs on the same PON, allowing a smooth, incremental migration from 1G to 10G .
Eight Symmetric 10G Ports, 1024 ONU Capacity: Each of the 8 ports on this 10G-EPON OLT supports up to a 1:128 split, enabling a massive 1024 high-speed ONUs per device. Symmetric 10 Gbps guarantees that every connected ONU can achieve true 10G upload and download speeds—crucial for 5G transport, cloud computing, and symmetric business services .
Flexible High-Capacity Uplinks: Equipped with multiple 10GE SFP+ and 40GE QSFP+ uplink ports, the 8-PON 10G EPON OLT connects effortlessly to core IP/MPLS networks. This non-blocking backhaul capacity easily absorbs aggregated traffic from hundreds of active 10G ONUs, ensuring zero congestion even during peak usage .
Carrier-Grade Redundancy & Modularity: The 10G EPON OLT features dual hot-swappable, load-sharing power supplies (AC/DC) and redundant fan modules. All line cards and management modules are hot-swappable, enabling maintenance and upgrades without service interruption—providing the 99.999% availability required for central office environments .
Advanced eOAM & Unified NMS: Fully supports eOAM (IEEE 802.3ah Clause 57) and extended OAM for remote ONU auto-discovery, bulk configuration, real-time performance monitoring, and silent firmware upgrades. Robust CLI, SNMP v1/v2/v3, and Web GUI manageability integrate seamlessly into existing NMS/OSS platforms, allowing operators to provision hundreds of ONUs in minutes .
- Product Advantage
1. 10G 8 Port EPON OLT series complies with IEEE802.3ah and YD/T 1475-2006 standard.
2. System capacity: Single PON port can support the access of 64 terminals, the overall unit can support 512 ONU terminals.
3. Uplink port: support many different types of metropolitan area network interface combination, according to network situation , select 1000M or 10000M port.
4. Device size: 1U, occupies little space in the computer room,less power consumption,reduces business operating cost.
5. High reliability guarantee, support dual power supply.
Product Feature
1.Provide a high density PON port, overall unit can support 512 ONU terminals, capacity is larger than regular cassette OLT, every PON port supports splitting ratio 1:64, PON optical transceiver is hot plug design, support 20km transmission distance.2.Support PON optical fiber redundancy protection,automatic link road protection switching in the case of optical fiber failure.
3.Support ethernet function, provide effective isolation guarantee mechanism, VLAN isolation, port protection,MAC address binding, IP address binding, port speed limit, queuing technique ,flow control technology etc provide technical guarantee for the development of multi service integration .
4.Perfect security protection mechanism,use hardware packet forwarding can detect and filter the characteristic packets effectively, MAC address that supports ARP attacks, automatic protection and automatic user blocking capabilities, prevent protocol messages from attacking.Support all kinds of anti DDoS, CPU over-current protection,VRRP and other equipment protection function, revent illegal or abnormal traffic from entering the network,against multiple viruses attack.Ensure the safety of equipment management.
5.Completely support 2 layer business function,achieve flexible QinQ and QoS function. ACL supports L2 to L7 ,deep into the IP message header and 80 bytes message of packet filtering. Provide high quality QoS service quality guarantee for multi service operation
6.Highly centralized operation management and maintenance, for business, provide a unified network transmission and interconnection protocol, address management, domain name management, security management, user access management. OAM function includes configuration, alarm, performance monitoring, fault isolation and security management etc.
Full IEEE 802.3av 10G-EPON Compliance: Designed from the ground up for symmetric 10G-EPON, this 8 port OLT ensures full interoperability with standard 10G-EPON ONUs. It supports advanced EPON mechanisms including MPCP, FEC, 128-bit AES encryption, and Dynamic Bandwidth Allocation (DBA) optimized for 10G line rates, delivering absolutely consistent low-latency performance .
Eight 10G-EPON Ports – 1024 Symmetric 10G ONUs: Each port on this 10G EPON OLT supports a 1:128 split ratio, enabling up to 1024 high-speed ONUs per chassis. Symmetric 10G per port guarantees that every subscriber can be offered true 10G upload and download speeds, making it perfect for symmetrical services like cloud computing, video conferencing, and 5G fronthaul/backhaul .
Flexible High-Capacity Uplinks: Equipped with multiple 10G SFP+ and 40G QSFP+ uplink ports, the 8-PON 10G-EPON OLT can easily aggregate traffic to core IP/MPLS networks without blocking. This provides a smooth migration path from 1G to 10G backhaul, ensuring no bottlenecks as subscriber data consumption grows exponentially .

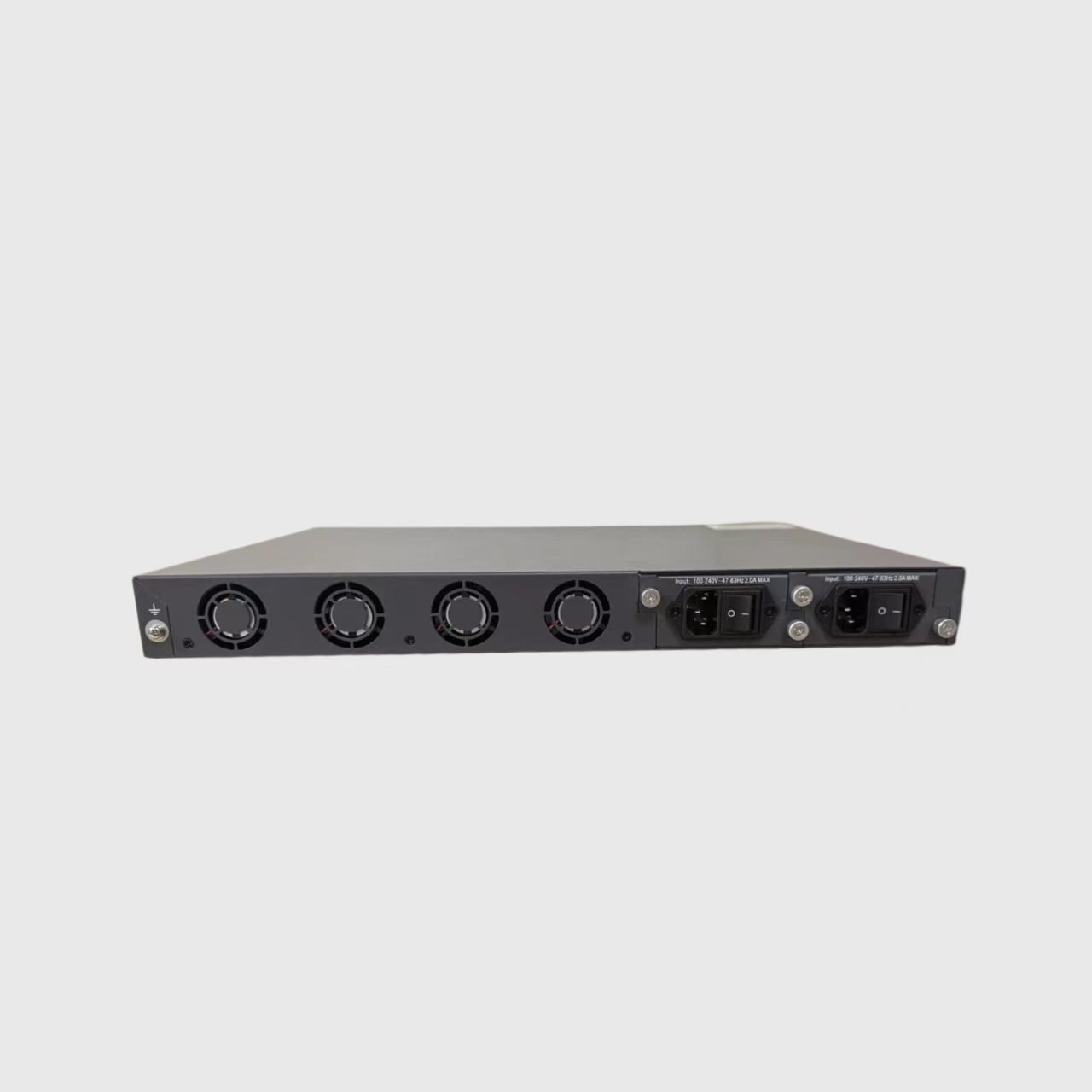

Carrier-Grade Redundancy & Reliability: The 8 port 10G EPON OLT supports dual hot-swappable, load-sharing power supplies and redundant fan modules. All line cards and management modules are field-replaceable without service interruption. This ensures 99.999% carrier-class availability for mission-critical services .
Advanced OAM+ and NMS Integration: Fully supports standard eOAM (IEEE 802.3ah Clause 57) and extended OAM for ONU discovery, configuration, performance monitoring, and remote firmware upgrades. Robust CLI, SNMP v1/v2/v3, and Web GUI management interfaces integrate seamlessly with existing carrier NMS/OSS platforms, enabling efficient bulk provisioning across hundreds of ONUs .
Product Specification
Parameters | 10G 8 Port EPON OLT | |
Exchange capacity | 96Gbps | 104Gbps |
Packet forwarding rate | 71.424Mpps | 77.376Mpps |
Memory and storage | memory：512MB, storage：32MB | memory：512MB, storage：32MB |
Management port | Console | Console， Type C |
Port | 4*GEPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 8*GEPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
PON | Comply with IEEE 802.3ah EPON standard 20KM transmission distance 1:64 Max splitting ratio | |
VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ | |
MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit | |
ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection | |
port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding | |
Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports | |
Mirroring | Support port mirroring Support stream mirroring | |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. | |
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR | |
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection | |
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP | |
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute | |
Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ | |
environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) | |
environment friendly | China RoHs,、EEE | |
weight | ≤3.5kg | ≤5kg |
fan | Fixed fans (two fans) | Fixed fans（three fans） |
power | AC： 100～240V 47/63Hz； DC： 36V～75V； | |
Power consumption | ≤38W | ≤49W |
Dimensions (Width * height * depth) | 440mm*44mm*200mm | 440mm*44mm*260mm |
10G-EPON Ports: 8 × 10G-EPON (SFP+, SC/UPC or SC/APC)
Standards: IEEE 802.3av (10G-EPON), 802.3ah OAM, eOAM
Data Rate per Port: 10.3125 Gbps Symmetric (Tx/Rx)
Max Split Ratio: 1:128 per port (1024 ONUs total)
Transmission Distance: Up to 20KM (PRX30) / 40KM (PRX40) per port
Uplink Ports: 4 × 10GE SFP+ + 2 × 40GE QSFP+ (or 8 × 10GE, model-dependent)
Management Ports: 1 × 10/100/1000Base-T RJ45 (Out-of-Band), 1 × RJ45 Console
Switching Capacity: > 320 Gbps non-blocking
VLAN: 802.1Q, QinQ, up to 4096 VLANs, VLAN Translation
Multicast: IGMP Snooping v1/v2/v3, IGMP Proxy, MLD Snooping
QoS: 802.1p/DSCP, per-ONU DBA profiles, 8 queues per port, SP/WRR/DRR
Security: 128-bit AES, ACL (L2/L3/L4), MAC Filtering, DHCP Snooping, ARP Inspection
Redundancy: Dual hot-swap AC/DC PSUs, redundant fan tray, hot-swap line cards
Management: eOAM, SNMP v1/v2/v3, CLI, Telnet, SSH, Web GUI, RADIUS, TACACS+
Form Factor: 2U 19-inch rack-mountable
Power Supply: AC 100-240V or DC -48V (redundant, load-sharing)
Power Consumption: < 200W (typical, fully loaded)
Operating Temperature: 0°C to 50°C
Order Information
Call to Action:
Ready to deliver symmetric 10G to your subscribers with an 8 port 10G EPON OLT? [Contact our technical sales team] for detailed specifications, interoperability reports, and pricing.
FAQ
Q: How many ONUs can the 8 port 10G EPON OLT support?
A: With a split ratio of up to 1:128 per port, this 8 port 10G EPON OLT supports a maximum of 1024 ONUs. In practice, operators often use 1:32 or 1:64 for higher per-subscriber bandwidth, still enabling 256–512 high-value subscribers per chassis with guaranteed symmetric 10G tiers.
Q: Is 10G-EPON backward compatible with 1G EPON ONUs?
A: Yes. The IEEE 802.3av standard defines a dual-rate mode. This 10G EPON OLT can operate in a mixed environment with 1G and 10G ONUs on the same PON port, automatically negotiating the correct rate. This smooth coexistence allows operators to incrementally upgrade ONUs without a flash cut.
Q: What uplink options does this OLT provide?
A: The 8 port 10G EPON OLT typically offers 4 × 10GE SFP+ and 2 × 40GE QSFP+ uplink ports (exact configuration may vary). These high-speed interfaces aggregate traffic from hundreds of 10G ONUs and connect directly to core routers or switches, ensuring no backhaul congestion.
Q: Can this OLT be used for 5G mobile backhaul?
A: Absolutely. Symmetric 10G, low latency, and precise eOAM-based management make this 10G-EPON OLT an excellent choice for aggregating 5G small cells, remote radio heads (RRH), or fixed wireless access (FWA) sites. It meets the strict timing and throughput requirements of CPRI/eCPRI and O-RAN front haul networks.
Q: How do I manage and provision hundreds of ONUs on this OLT?
A: The 8 port 10G EPON OLT supports extended OAM (eOAM) for batch ONU auto-discovery, configuration, and firmware upgrades. Use the CLI or SNMP-based NMS to create service templates, provision VLAN/QoS per ONU, and monitor real-time optical parameters and traffic statistics.
