16 Port XGS-PON OLT | High-Density Symmetric 10G GPON Terminal | ITU-T G.9807.1 Carrier Platform
Product Overview
FY-G1016P adopts advanced technology in the industry, splitting ratio up to 1:128, supports different types of ONU hybrid networking which minimizes network operator’s investment. It has powerful ethernet service and QoS guarantee, supports SLA and DBA.

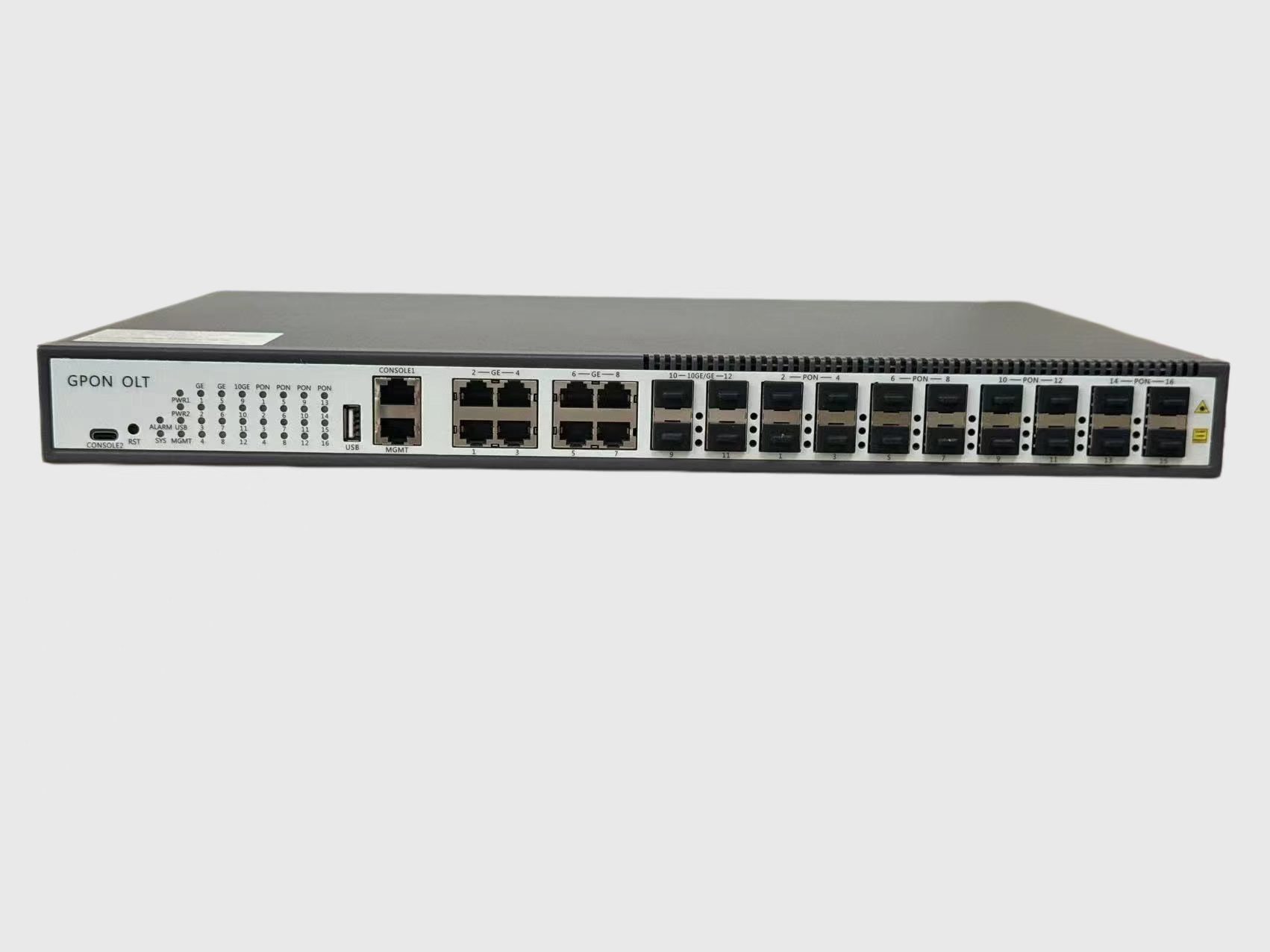

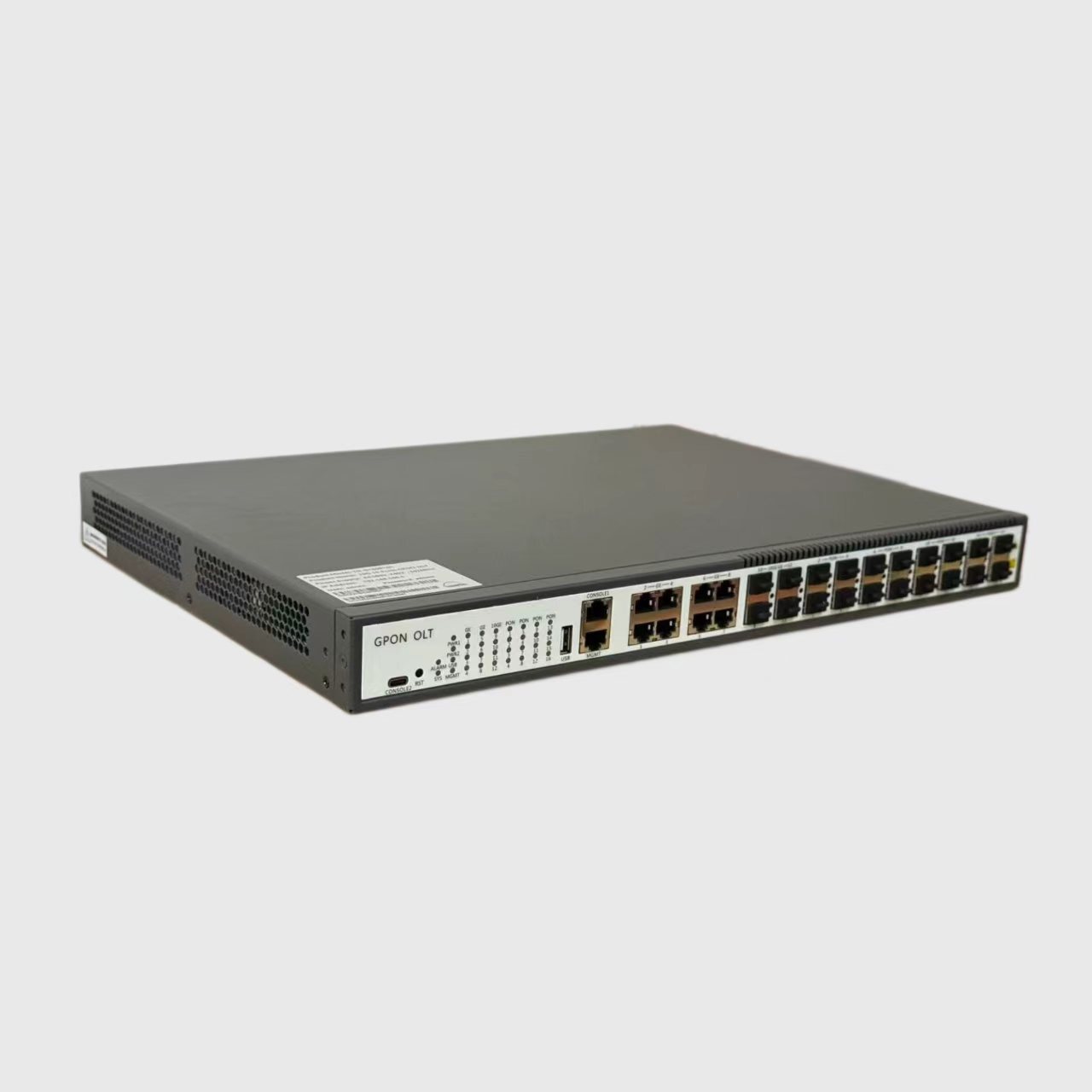

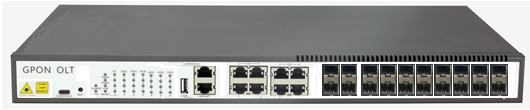

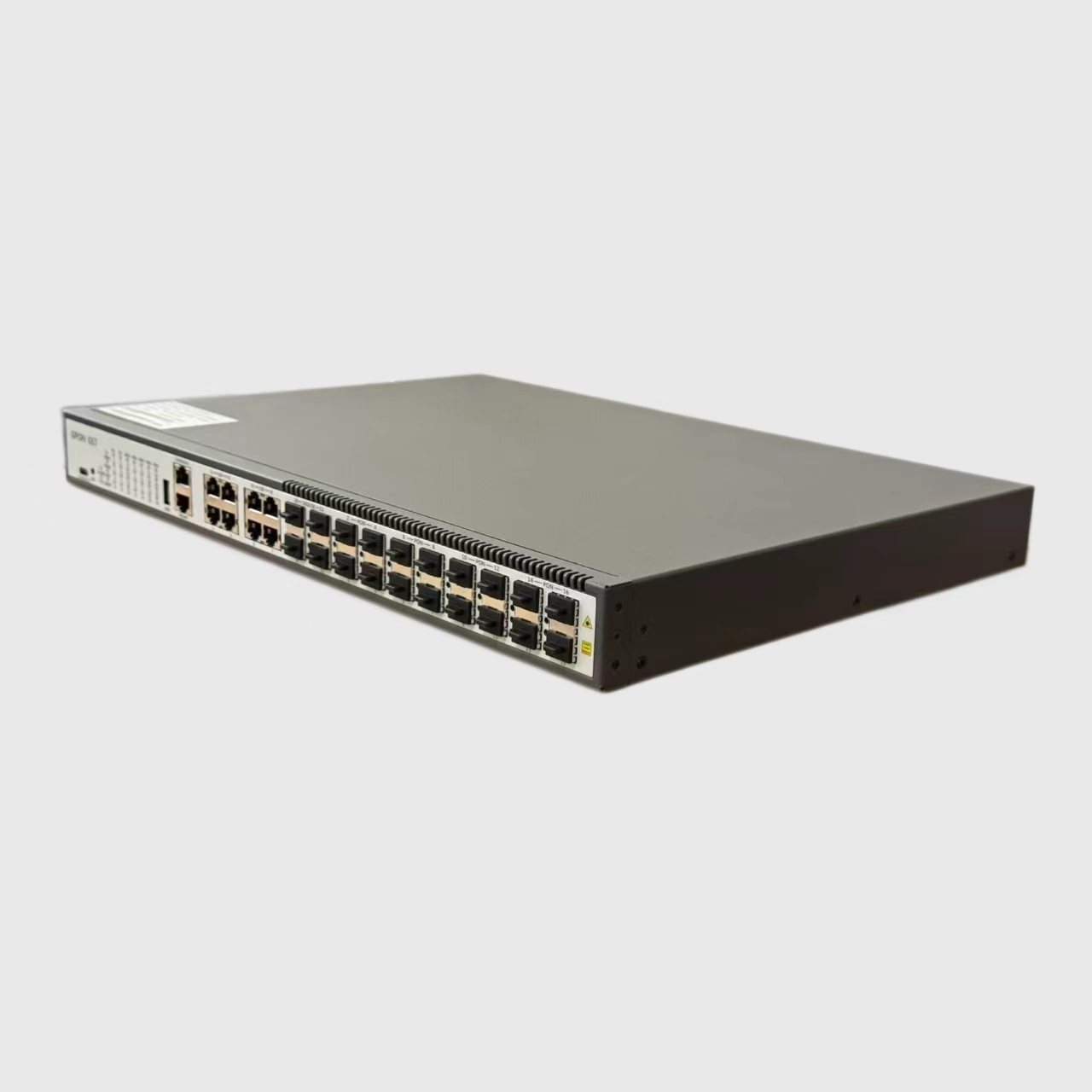

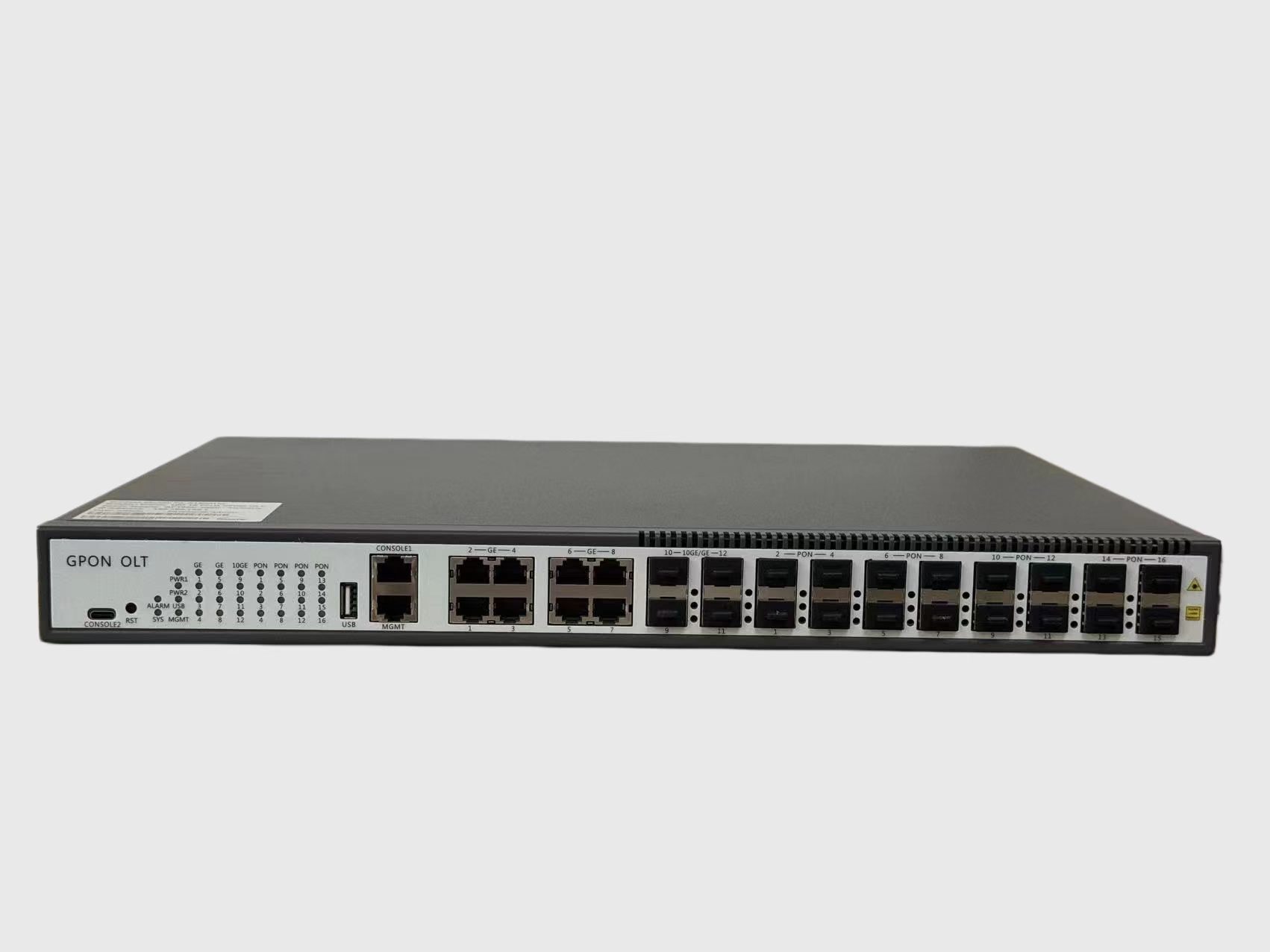

The Flypon 16 Port XGS-PON OLT is a high-capacity, next-generation Optical Line Terminal engineered for operators deploying hyper-scale Fiber-to-the-Home (FTTH), 5G mobile xHaul, and premium enterprise services. Compliant with ITU-T G.9807.1, this 16 port 10G GPON OLT delivers true symmetric 9.953 Gbps line rate on each of its 16 independent XGS-PON ports. Capable of supporting up to a 1:128 split ratio per port, a single chassis aggregates up to 2048 ONUs—providing an ideal convergence hub for city-wide rollouts, large multi-dwelling units, and converged fixed-mobile access networks. With redundant hardware, high-capacity uplinks, and comprehensive OMCI management, this XGS-PON OLT 16 port guarantees carrier-grade reliability for mission-critical symmetrical services .
- Product Advantage
1. GPON: FY-G1016P series complies with ITU.T G.984.x and YD/T 1475-2006 standard.
2. System capacity: single PON port can support the access of 128 terminals, the overall unit can supports 1024 ONU terminals.
3.Uplink port: support many different types of metropolitan area network interface combination, according to network situation , select 1G or 10M port.
4. Device size: 1U, occupies little space in the computer room,less power consumption, reduces business operating cost.
5. High reliability guarantee, support dual power supply.
Product Feature
1. Provide a high density PON port, overall unit can support 1024 ONU terminals, capacity is larger than regular cassette OLT, every PON port supports splitting ratio 1:128, PON optical transceiver is hot plug design,can select 4 10G ports, support 65km transmission distance.2. Support PON optical fiber redundancy protection,automatic link road protection switching in the case of optical fiber failure.
3. PON business capabilities support dynamic bandwidth allocation DBA algorithm, dynamic bandwidth allocation scheme (DBA) enables all users to share 2.5Gbps bandwidth more reasonably,achieving reliable quality of service.
4. Support ethernet function, provide effective isolation guarantee mechanism, VLAN isolation, port protection,MAC address binding,IP address binding, port speed limit, queuing technique, flow control technology etc provide technical guarantee for the development of multi service integration .
5. Perfect security protection mechanism, use hardware packet forwarding can detect and filter the characteristic packets effectively, MAC address that supports ARP attacks, automatic protection and automatic user blocking capabilities, prevent protocol messages from attacking. Support all kinds of anti DDoS, CPU over-current protection, VRRP and other equipment protection function, revent illegal or abnormal traffic from entering the network, against multiple viruses attack. Ensure the safety of equipment management.
6. Completely support 2 layer business function, achieve flexible QinQ and QoS function. ACL supports L2 to L7 , deep into the IP message header and 80 bytes message of packet filtering. Provide high quality QoS service quality guarantee for multi service operation
7.Highly centralized operation management and maintenance, for business, provide a unified network transmission and interconnection protocol, address management, domain name management, security management, user access management. OAM function includes configuration, alarm, performance monitoring, fault isolation and security management etc.
Full ITU-T G.9807.1 XGS-PON Compliance: Built on a dedicated 10G GPON chipset, the 16 port XGS-PON OLT seamlessly interoperates with standard XGS-PON ONUs from major vendors (Huawei, ZTE, Nokia, Calix). Advanced XGEM framing, 128-bit AES encryption, and latency-optimized DBA deliver symmetric 10G performance without compromise .
Sixteen Symmetric 10G Ports – 2048 ONUs Capacity: Each of the 16 ports on this 10G GPON OLT supports a 1:128 split, scaling up to 2048 subscribers from a single compact chassis. True symmetrical bandwidth ensures that upload-intensive applications—8K video conferencing, multi-cloud backup, 5G eCPRI, and real-time surveillance—receive uncompromised speed and stability .
Powerful Uplink Matrix: Equipped with multiple 10GE SFP+ and 40GE/100GE QSFP+ uplink ports, this 16-port XGS-PON OLT offers non-blocking backhaul to the core network. Whether aggregating 5G small cells or thousands of 10G residential ONUs, the abundant uplink capacity prevents congestion and future-proofs the network .
Carrier-Class Redundancy & Availability: The XGS-PON Optical Line Terminal features fully hot-swappable, load-sharing redundant power supplies (AC/DC) and fan trays. All service line cards support hot-swapping for maintenance without downtime, achieving 99.999% service availability for central office and headend environments .
Robust OMCI & Centralized Management: Fully supports OMCI (G.988) for bulk ONU auto-discovery, secure provisioning, performance monitoring, and remote firmware upgrades. Integrated CLI, SNMP v1/v2/v3, Web GUI, and RADIUS/TACACS+ facilitate seamless integration into existing OSS/BSS platforms, enabling rapid mass provisoning and real-time diagnostics .
Product Specification
Attributes | FY-G1016P | ||
Exchange capacity | 104Gbps | ||
Packet forwarding rate | 77.376Mpps | ||
Memory and storage | memory：512MB, storage：32MB | ||
Management port | Console， Type C | ||
Port | 4*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 8*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 16*GPON Port，8*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
PON | Comply with ITU-TG.984/G.988 standard 60KM transmission distance 1:128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade | ||
VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ | ||
MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit | ||
ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection | ||
port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding | ||
Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports | ||
Mirroring | Support port mirroring Support stream mirroring | ||
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. | ||
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR | ||
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection | ||
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP | ||
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute | ||
Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ | ||
environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) | ||
environment friendly | China RoHs,、EEE | ||
weight | FY5800-04/08P:≤5kg FY5800-16P :≤6.5kg | ||
fan | Fixed fans（three fans） | ||
power | AC： 100～240V 47/63Hz； DC： 36V～75V； | ||
Power consumption | FY5800-04/08P: 65W FY5800-16P : 100W | ||
Dimensions (Width * height * depth) | FY5800-04/08P: 440mm*44mm*260mm FY5800-16P : 440mm*44mm*320mm | ||
XGS-PON Ports: 16 × XGS-PON (SC/UPC or SC/APC, SFP+)
Standards: ITU-T G.9807.1 (XGS-PON), G.988 (OMCI)
Data Rate per Port: 9.953 Gbps Symmetric (Downstream / Upstream)
Max Split Ratio: 1:128 per Port (2048 ONUs Total)
Transmission Distance: Up to 20KM (N1 Class) / 40KM (N2 Class, optional)
Uplink Ports: 8 × 10GE SFP+ + 4 × 40GE QSFP+ (100GE optional)
Management Ports: 1 × RJ45 Out-of-Band Management, 1 × RJ45 Console
Switching Capacity: > 640 Gbps Non-blocking
VLAN/QoS: 802.1Q, QinQ, per-ONU DBA, 8 queues, SP/WRR/DRR, 4096 VLANs
Multicast: IGMP v1/v2/v3 Snooping & Proxy, MLD Snooping
Security: 128-bit AES, ACL, MAC Filtering, DHCP Snooping, ARP Inspection

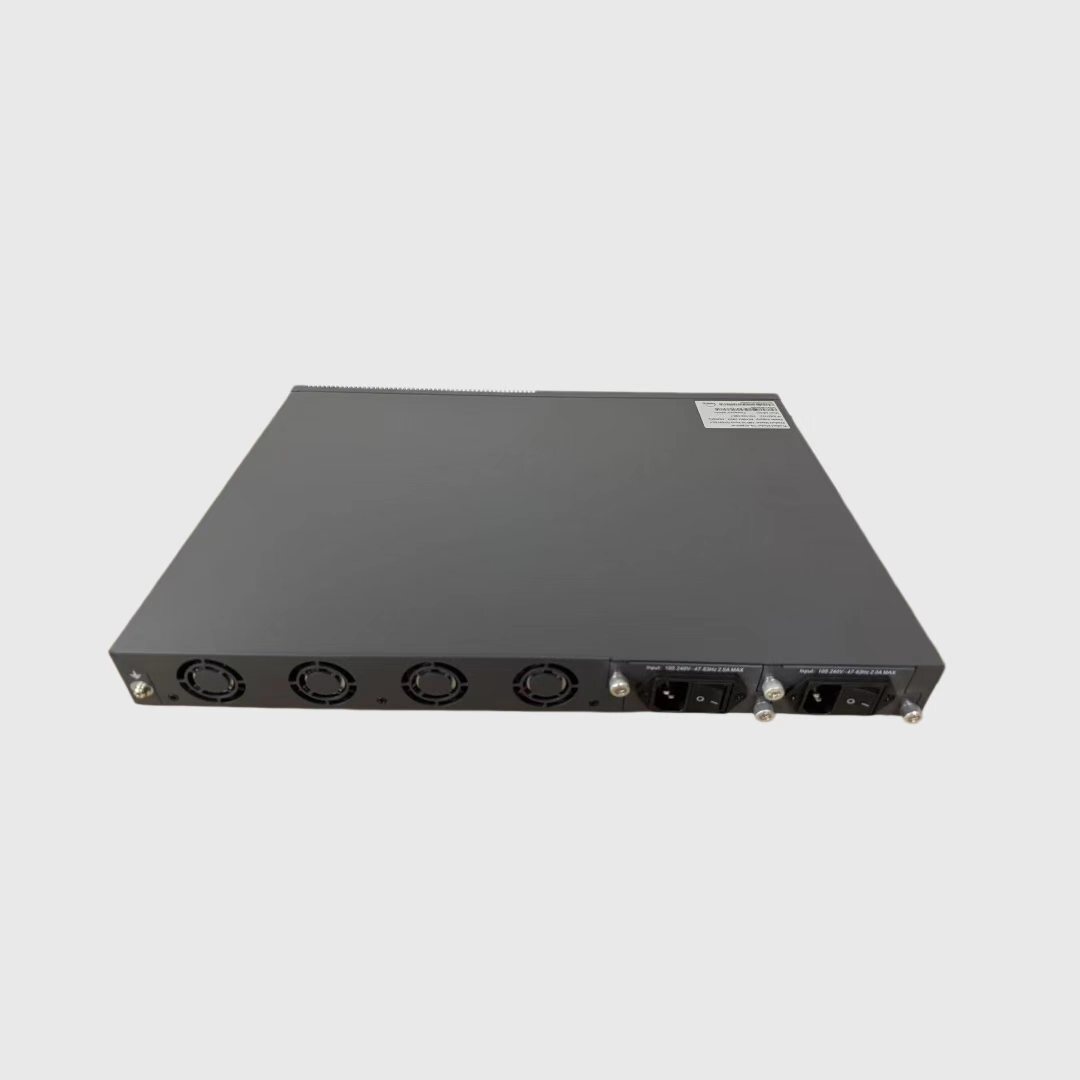

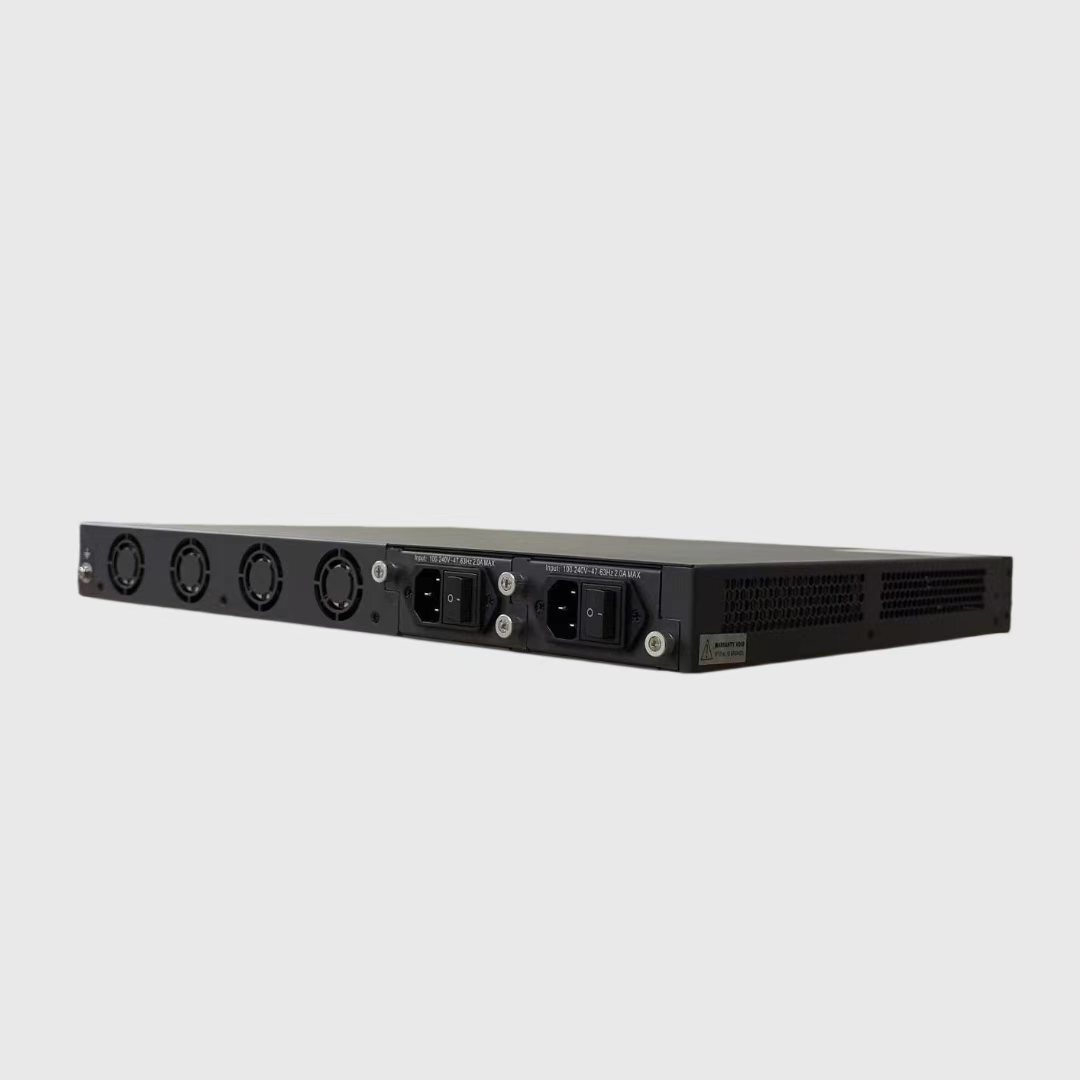

Redundancy: Dual hot-swap AC/DC PSUs, redundant hot-swap fan tray
Management: OMCI, SNMP v1/v2/v3, CLI, Telnet, SSH, Web GUI, RADIUS
Form Factor: 2U 19-inch Rack-Mountable
Power Consumption: < 400W (Typical, fully loaded)
Operating Conditions: 0°C to 50°C, 10%-90% RH
Order Information
Scaling your network to thousands of symmetrical 10G subscribers? The 16 port XGS-PON OLT is your high-density foundation. [Contact our sales team] for detailed specifications, a competitive quotation, and a live demonstration.
FAQ
Q: How does XGS-PON differ from standard GPON, and why choose it at this scale?
A: Standard GPON (G.984) offers 2.5 Gbps down / 1.25 Gbps up. XGS-PON (G.9807.1) delivers symmetric 9.953 Gbps. This symmetry is vital for 5G backhaul, business cloud services, and widespread video collaboration. The 16 port XGS-PON OLT ensures every subscriber connected to it receives true 10G symmetrical capability, future-proofing the network.
Q: Can this 16 port OLT coexist with my legacy GPON ONUs during migration?
A: Yes. With optional Combo XGS-PON/GPON modules, the XGS-PON OLT can simultaneously serve legacy GPON ONUs and new XGS-PON ONUs on the same fiber via WDM. This enables a smooth, incremental migration to 10G without a disruptive flash-cut of existing subscribers.
Q: What is the maximum split I can realistically achieve over 20km?
A: The 16 port 10G GPON OLT supports up to a 1:128 split per port (N1 optics), enabling a maximum of 2048 ONUs per chassis over 20km. Many operators deploy 1:32 or 1:64 splits to deliver premium symmetrical bandwidth per subscriber, supporting 512-1024 businesses or high-end residential users per OLT with guaranteed performance.
Q: Is this OLT suitable for dense 5G mobile transport?
A: Absolutely. The symmetric 10G throughput, low latency, and precise OMCI diagnostics make this 16-port XGS-PON OLT ideal for aggregating massive numbers of 5G remote radio units (O-RUs) and distributed units (O-DUs). It meets the stringent O-RAN transport requirements for both fronthaul and midhaul.
Q: How can I efficiently manage thousands of ONUs connected to this OLT?
A: The XGS-PON Optical Line Terminal leverages G.988 OMCI for zero-touch provisioning, auto-discovery, and bulk firmware upgrades. The CLI and SNMP interfaces can be integrated into your NMS to deploy service templates across hundreds of ONUs within minutes, dramatically reducing time-to-service and operational costs.
