1GE EPON ONU | Single Port Gigabit Optical Network Unit | IEEE 802.3ah Compliant FTTH Terminal

Product Overview

FY-E1G3F01 ONU series is a home network product designs by FLYPON ,which is a terminal device, in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON technology.2/3 layer ethernet switch technology,High reliability,easy to manage,flexible configuration and good quality of service (QoS) guarantee.
The technical performance of the product meets the requirements of IEEE802.3ah and the technical requirement of China Telecom EPON .

The Flypon 1GE EPON ONU is an ultra-compact, cost-optimized Optical Network Unit designed exclusively for Ethernet Passive Optical Network (EPON) Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) deployments. Fully compliant with the IEEE 802.3ah standard, this 1GE EPON ONU delivers symmetric 1.25 Gbps upstream and downstream via a single optical fiber. Featuring a single 1 Gigabit Ethernet LAN port, it terminates the optical signal and provides pure wire-speed internet directly to a router, PC, or switch. This EPON ONU is the definitive entry-level CPE for operators seeking a low-power, low-maintenance terminal for data-only subscribers .

• Product Feature




  1.Plug and play, auto discovery, configuration and upgrade.

  2.Support OAM remote configuration management function.

  3.Optical port has the function of optical power detection,optical transmission
   cut off etc.

  4.Rich VLAN and multicast functions.

  5.It can interflow well with Broadcom, PMC,Cortina and other OLT equipment .

  6.Support route,NAT and firewall functions.




  Key Features




  Full IEEE 802.3ah EPON Compliance: Built with a dedicated EPON MAC chip, this 1GE EPON ONU guarantees seamless interoperability with all standard EPON OLTs from ZTE, Huawei, FiberHome, and other vendors. It fully supports MPCP, FEC, and Dynamic Bandwidth Allocation (DBA) for efficient and stable data delivery .

  Single Gigabit Wire-Speed Port: The 1×10/100/1000Mbps auto-negotiation RJ45 port on this EPON ONU eliminates bandwidth bottlenecks at the subscriber end. It delivers true Gigabit fiber speeds directly to a high-performance router, gaming console, or desktop computer, ensuring smooth 4K streaming and fast downloads .

  Carrier-Grade Remote Management: The 1GE EPON ONU supports standard OAM (IEEE 802.3ah Clause 57) and extended OAM protocols. Operators can remotely configure the device, monitor performance, upgrade firmware, and isolate faults without any need for customer intervention—driving down operational costs significantly .

  Ultra-Compact & Energy-Efficient: With a footprint smaller than a credit card and typical power consumption below 2.5W, this EPON ONU can be discreetly installed on a desk, mounted on a wall, or hidden behind a TV. Its low heat output and silent operation make it perfect for any residential or SOHO environment .

  Robust Security & VLAN Support: The 1GE EPON ONU incorporates MAC address filtering, broadcast storm control, and supports 802.1Q VLAN tagging. These features enable service providers to maintain secure, segmented networks and deliver dedicated bandwidth profiles per subscriber .




Technical Parameter

Model: 1GE EPON ONU

Optical Interface: SC/PC or SC/UPC (Single Fiber)

EPON Standard: IEEE 802.3ah

Data Rate: 1.25 Gbps Upstream / 1.25 Gbps Downstream

Wavelength: TX 1310nm, RX 1490nm

Optical Budget: PX20+ (20KM typical reach)

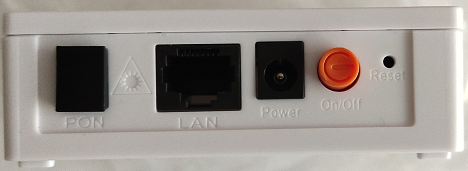

User Interface: 1 × 10/100/1000Base-T RJ45 (Auto MDI/MDIX)

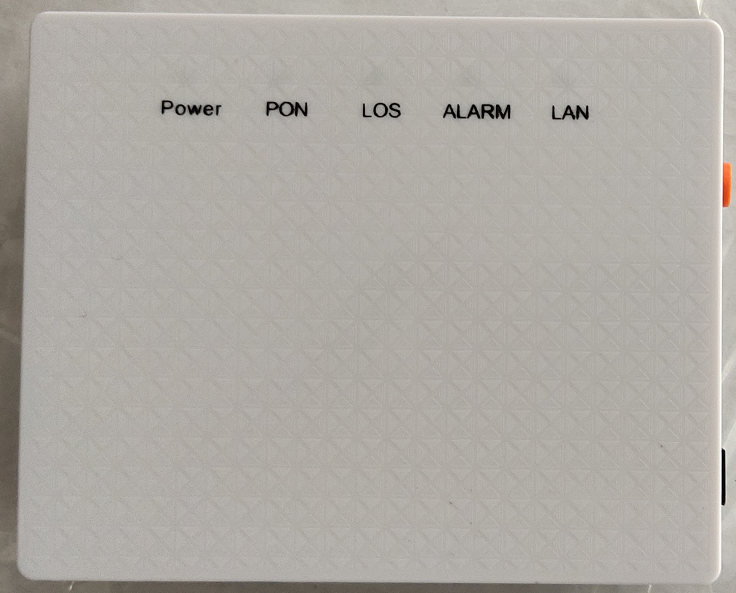

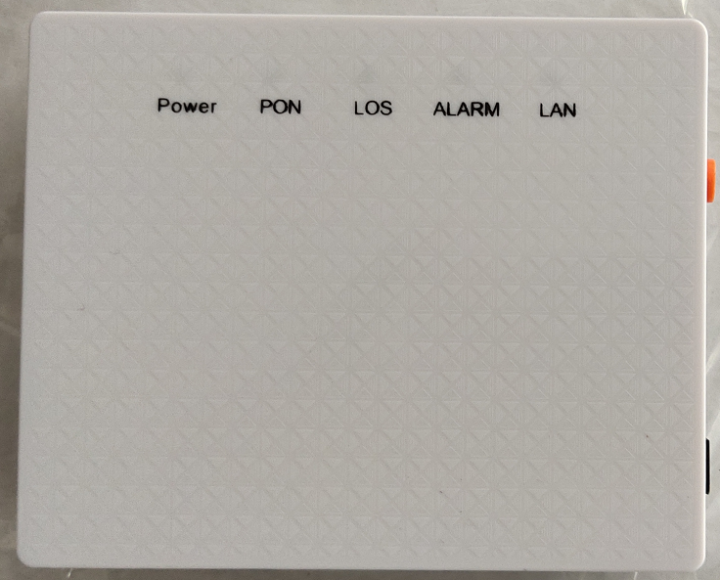

LED Indicators: PWR, PON/LINK, LOS, LAN

VLAN: 802.1Q Tag/Untag VLAN, VLAN Transparent

QoS: 802.1p Priority, Rate Limiting

Management: OAM (IEEE 802.3ah Clause 57), Extended OAM, Web GUI, Telnet

Security: MAC Address Filtering, Storm Control

Power Supply: External 5V DC Adapter

Power Consumption: < 2.5W

Dimensions (W×D×H): 82mm × 82mm × 25mm

Data service function

1.Full line speed ,non blocking switching.

2.MAC:1k.

3.Support 64 full VLAN ID.

4.Support VLAN QinQ, pass through,tag,translation,trunk etc.

5.Support port monitoring, port mirroring, port speed limit, port SLA etc.

6.Support auto MDIX.

7.Support IEEE802.1p,QoS.

8.Support IPv4 IGMP snooping and IPv6 MLD snooping.

9.Supports bridging connection , routing, bridging connection/ routing mixed mode.

10.Support NAT, virtual server etc.

11.Support firewall function.

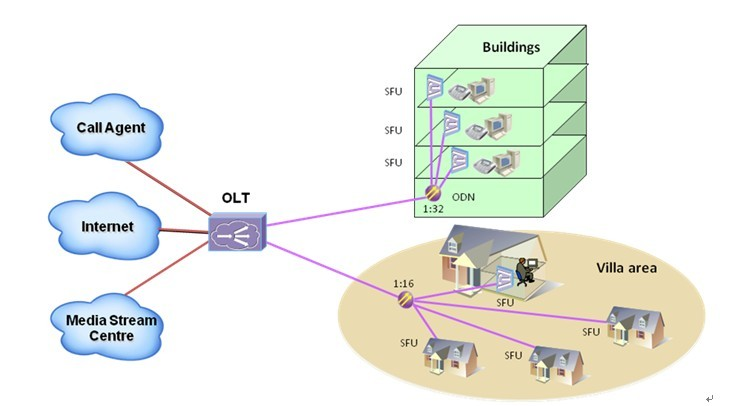

Application Solution

•


  Model	Description
  FY-E1G3F01	1GE+3FE ONU




  Looking to deploy a reliable, no-frills EPON data terminal at scale? The 1GE EPON ONU is your lowest-TCO endpoint for pure internet services. [Contact our sales team] for detailed datasheets and competitive bulk pricing.




  FAQ




  Q: Is this 1GE EPON ONU compatible with a GPON OLT?
  A: No. This is a dedicated EPON ONU device compliant with IEEE 802.3ah. EPON and GPON use different protocols and are not interoperable. This ONU will only register and operate with an EPON OLT. If you need dual-mode flexibility, please refer to our XPON ONU line.

  Q: Can I connect a WiFi router to this ONU?
  A: Absolutely. The single Gigabit Ethernet port on this 1GE EPON ONU is designed to connect directly to the WAN port of a third-party wireless router. The ONU itself operates in bridge mode, allowing your router to handle PPPoE dialing and provide WiFi throughout the home.

  Q: Does this EPON ONU support VLAN configuration?
  A: Yes. The EPON ONU supports 802.1Q VLAN tagging. ISPs can assign a specific VLAN for internet data on the GE port, ensuring clean service isolation and efficient bandwidth management from the OLT side.

  Q: How is this ONU managed after it's installed at a customer's home?
  A: The 1GE EPON ONU supports standard OAM and extended OAM protocols. The OLT can remotely discover the ONU, configure its parameters, monitor optical signal levels, and perform firmware upgrades—all without a technician visiting the premises.

  Q: Can this EPON ONU also provide IPTV or voice services?
  A: This specific model is a data-only EPON ONU with a single Gigabit Ethernet port. It is designed for pure high-speed internet delivery. For IPTV or VoIP, you would need a multi-port ONU with FE ports or voice interfaces. The single GE port can, of course, carry VLAN-tagged IPTV traffic to a connected router that supports VLAN separation.
