1GE EPON ONU | Single Port Gigabit Optical Network Unit | IEEE 802.3ah Compliant

Product Overview

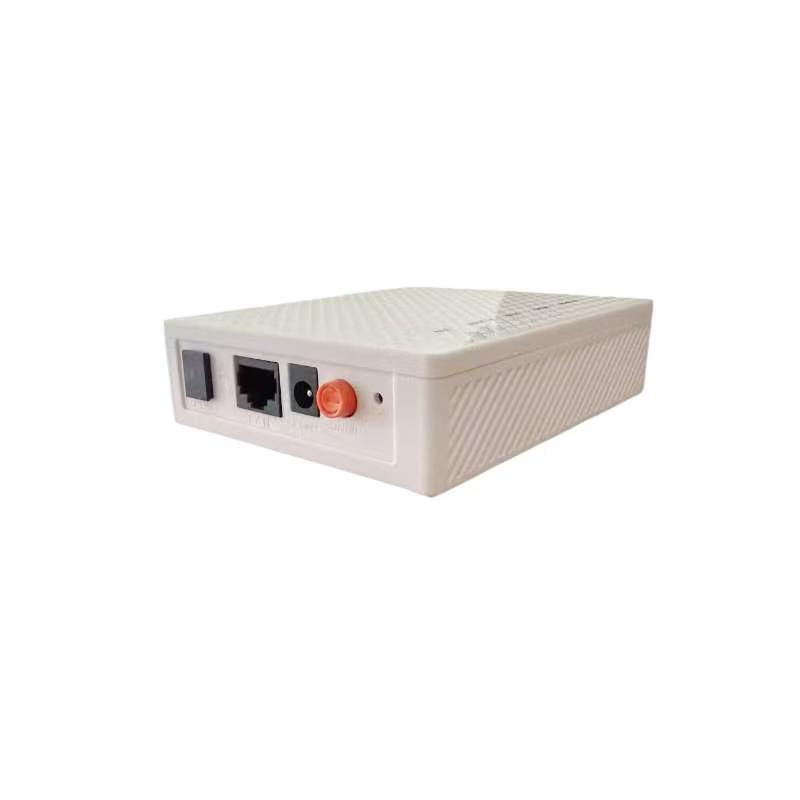

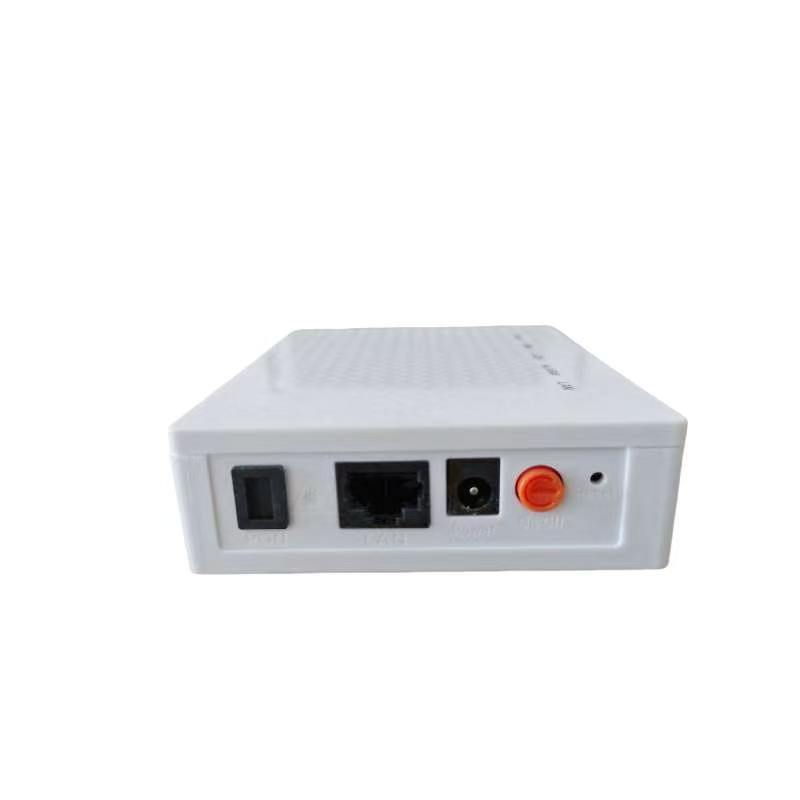

The Flypon 1GE EPON ONU is a compact, high-performance Optical Network Unit designed specifically for Ethernet Passive Optical Network (EPON) Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) applications. Fully compliant with the IEEE 802.3ah standard, this EPON ONU delivers symmetric 1.25 Gbps upstream and downstream transmission via a single fiber, providing a cost-effective bridge between the optical distribution network and end-user Gigabit Ethernet devices .

Key Feature:

· EPON Standard Compliance: Engineered to meet the IEEE 802.3ah EPON specification, ensuring seamless interoperability with mainstream OLTs from vendors like ZTE, Huawei, and FiberHome. This 1GE EPON ONU integrates smoothly into existing PON infrastructures .

· Gigabit Subscriber Interface: Equipped with 1 x 10/100/1000Mbps auto-negotiation RJ45 port, this EPON ONU eliminates bandwidth bottlenecks, delivering full fiber speeds directly to connected routers, PCs, or switches .

· Carrier-Grade Management & Security: Supports comprehensive OAM (Operations, Administration, and Maintenance) and remote management functions. Advanced features like Dynamic Bandwidth Allocation (DBA) and robust VLAN support (802.1Q) ensure optimal traffic prioritization and network security .

· Compact & Energy-Efficient Design: The 1GE EPON ONU features a minimalist, lightweight plastic housing with ultra-low power consumption (typically <3.5W). Ideal for desktop placement or wall-mounted installation in residential and SOHO environments .

• Technical Feature




  · Model: 1GE EPON ONU – Reliable Gigabit Fiber Access for FTTH Deployments

  · Uplink Interface: SC/PC or SC/UPC (Single Fiber)

  · Transmission Rate: 1.25 Gbps Upstream / 1.25 Gbps Downstream

  · Wavelength: TX 1310nm, RX 1490nm

  · Downlink Interface: 1 * 10/100/1000Base-T RJ45 (Auto MDI/MDIX)

  · Standards Compliance: IEEE 802.3ah, YD/T 1475-1475 (China Telecom CTC 2.1/3.0)

  · Max Transmission Distance: 20KM

  · Power Supply: External 12V DC Adapter

•

•

•


Technical Parameter

• Service




  Model	1GE EPON ONU
  EPON	Meet IEEE 802.3ah EPON standard Support GEM encapsulation mode Support DBA（Dynamic Bandwidth Assignment） Support 40 T-CONT and 256 GEM Ports Support Class B+ VLAN to GEM Port mapping Support FEC（Forward Error Correction） Flushbonading OAM（Operations，Administration and Maintenance），PLOAM（Physical Layer OAM），OMCI Support downlink 128 AES（Advanced Encryption Standard）encryption. Support fail alarm.
  LAN	Support Port rate limiting  Support Loop detection  Support Flow control  Support Storm control  Support Mac limiting(max mac limit 500)
  VLAN	Support port-based VLAN and IEEE 802.1Q VLAN Support VID and PVID Support port ＋VLAN ,set the tag property
  Multicast	Support IGMPv1/v2  Support IGMP Snooping  Max Multicast vlan 8  Max Multicast Group 255
  Broadcast storm suppression	Broadcast messages can be set
  STP	Support IEEE 802.1d/1s/1w
  Port aggregation	Support
  Bandwidth control	Support 64K to100M
  mirror image	Support port mirroring function
  QoS	Support 4 queues  Support SP and WRR  Support 802.1P  Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP
  upgrade	Support X modem, TFTP
  Manage	Support GN.Link cluster management and remote upgrade（Client side） Support Telnet remote configuration Support SNMP Support WEB management
  Security	Support administrator password centralized authentication Supports port locking and limits the number of MAC addresses per port Support 802.1x
  Maintain	Support debugging information output Support PING Support system logs Support ITUT984.x OMCI(GPON)  Support WEB  Support TELNET
  Alarm	Support Dying Gasp  Support PortLoopDetect  Support Eth Port Los Anti-DOS attack  Prevent The Rogue DHCP Server  Prevent The Rogue PPPoE Server  ONU Laser always-on detection  Powerful fire wall function
  Throughput	Upstream >900Mbps  Downstream >960Mbps
  Packet lost	14Hours /Lost 0







  Data service function

  1.Transmission rate:10M/100M/1000M full duplex/half duplex,self-adaption.


  2.Support automatic polarity recognition of network port,


  3.Support port monitoring、port rate-limiting,port SLA,port configuration.


  4. support NAT,firewall,port filtering.


  5.Provide 10Base-TX/100Base-TX/1000Base-TX port by double row pin,convenient to interconnect well with all kinds of embedded equipment.

•

•

•

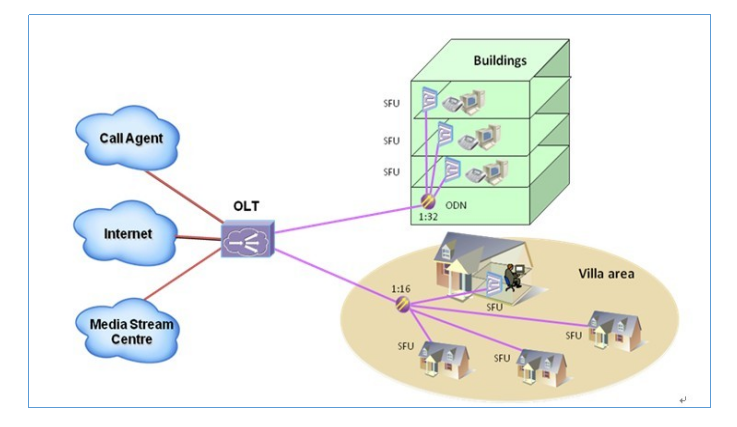

Application Solution

Q: Is this 1GE EPON ONU compatible with my existing GPON OLT?

A: No. This is a pure EPON ONU device compliant with IEEE 802.3ah. It is specifically designed to work with EPON OLTs. If your network uses GPON (ITU-T G.984), please refer to our GPON or XPON (dual-mode) ONU models. Mixing EPON and GPON devices on the same OLT port is not supported .

Q: What management protocols does this 1GE EPON ONU support?

A: This EPON ONU fully supports standard OAM (IEEE 802.3ah Clause 57 and extended OAM) as well as CTC OAM 2.0/2.1 specifications. This allows for remote configuration, performance monitoring, fault isolation, and firmware upgrades when paired with a compatible OLT management system .

Q: Can I use this 1GE EPON ONU for business or enterprise connections?

A: Yes. While ideally suited for residential FTTH, this 1GE EPON ONU is also perfect for FTTO scenarios. Its Gigabit Ethernet port provides sufficient bandwidth for small offices needing reliable high-speed data services. It operates in both bridge and router modes for flexible deployment .

• Order informaion

  Call to Action:

  Searching for a stable, standards-based 1GE EPON ONU for your next FTTH project? [Contact us] for detailed datasheets, interoperability test reports, and competitive wholesale pricing.




  Model	Description
  1GE EPON ONU	1GE EPON ONU, adaptor, packing box

•

•

•
