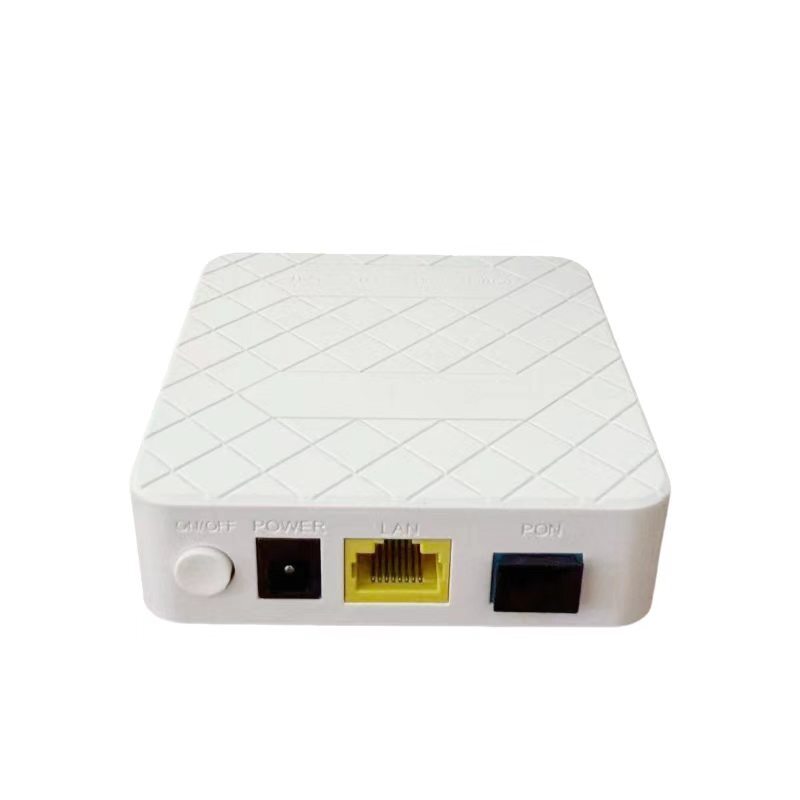

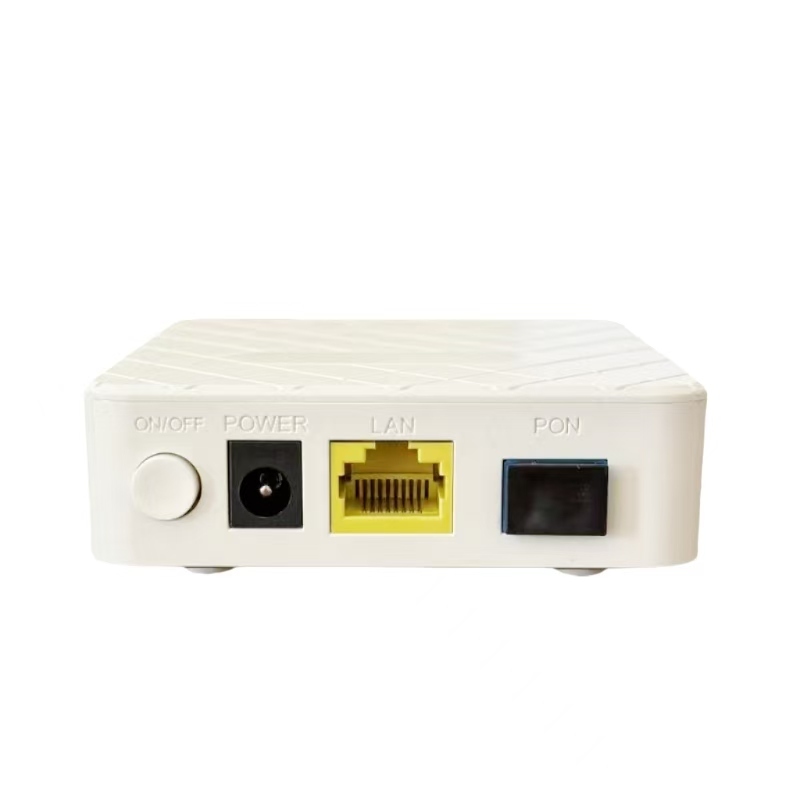

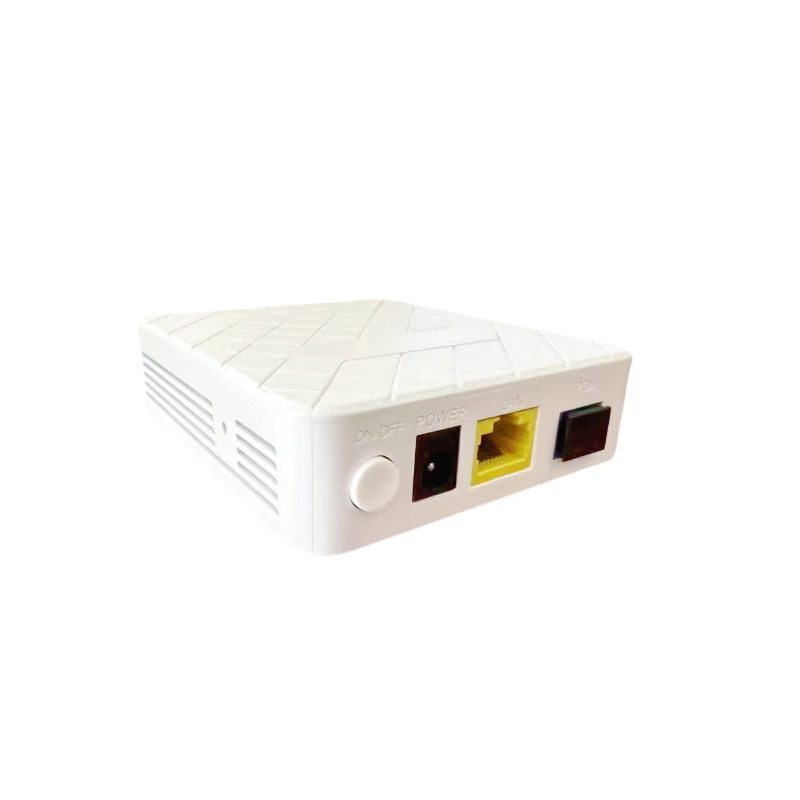

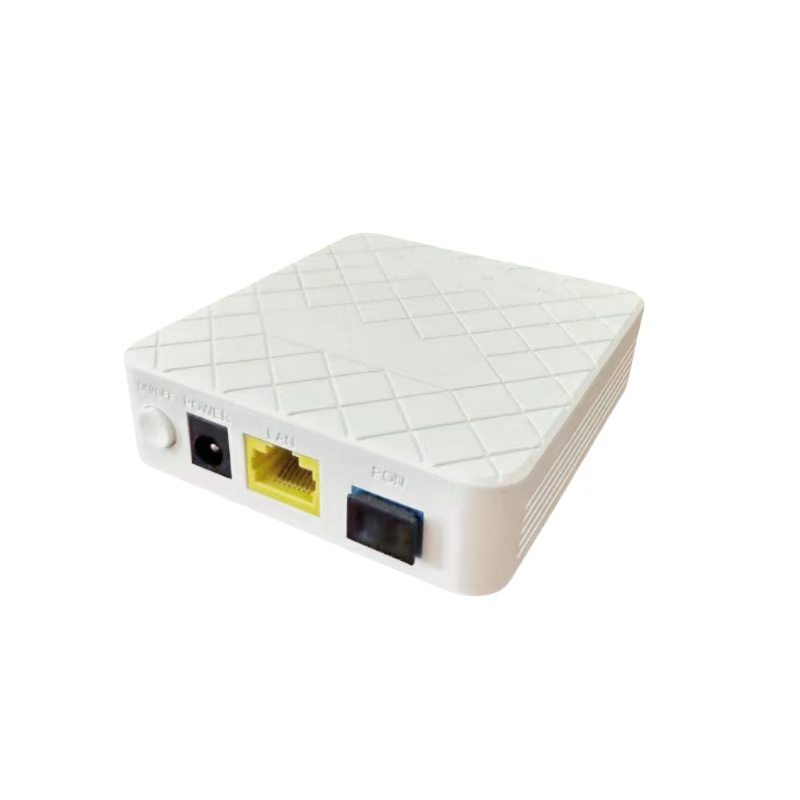

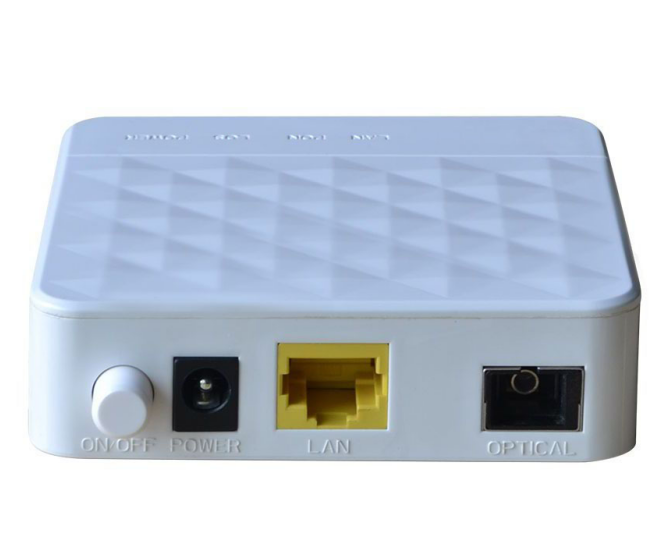

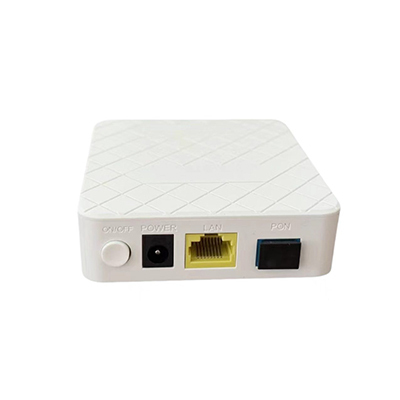

1GE XPON ONU | Single Port Gigabit Dual Mode ONT | GPON/EPON FTTH Terminal

Description

1GE XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

The Flypon 1GE XPON ONU is an ultra-compact, cost-optimized Optical Network Unit designed for pure high-speed internet delivery in Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) deployments. Supporting both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards with automatic detection and switching, this 1GE XPON ONU provides a full 1 Gigabit Ethernet LAN port for wire-speed data termination. With up to 2.488 Gbps downstream and a slim, low-power design, this XPON ONU is the perfect bridge between the optical distribution network and a single high-performance router, PC, or switch—delivering maximum fiber speeds at minimal cost for budget-conscious deployments .

• Product Features




  ● Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

  ● Completely compatible with GPON international standard IEEE802.3ah/802.3-2005

  ● Support China Telecom GPON CTC3.1 standard and expand OAM

  ● Support DBA reporting mechanism request

  ● Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

  ● Support to save configured parameters if power down

  ● Support to configure the work mode at the user port

  ● Support MDI-MDIX automatic-detection at the user port

  ● Support access authentication based on serial number

  ● Support access authentication based on MAC address

  ● Support 802.1Q VLAN

  ● Support traffic rule to modify the related priority

  ● Support to restore the factory settings

  ● Support the remote reset and reboot

  ● Support dying gasp outage alarm



  ● Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.







  Product Features




  True XPON Dual Mode: Built with a dual-mode chipset that auto-detects and seamlessly switches between GPON and EPON modes. One 1GE XPON ONU SKU covers both network architectures, dramatically simplifying inventory management and reducing logistics costs for operators with mixed PON environments .

  Gigabit Wire-Speed Performance: Equipped with 1 × 10/100/1000Mbps auto-negotiation RJ45 port, this XPON ONU eliminates bandwidth bottlenecks, delivering the full fiber line rate directly to a connected router, gaming console, or PC. True Gigabit throughput ensures seamless 4K streaming, large file downloads, and low-latency online activities .

  Ultra-Compact & Energy-Efficient Design: The 1GE XPON ONU features a minimalist white housing with ultra-low power consumption (typically under 2.5W). Its palm-sized form factor allows for discreet desktop placement or neat wall mounting in any residential or small office environment without adding clutter or heat .

  Carrier-Grade Management & Security: Despite its simplicity, this XPON ONT fully supports standard OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode. Remote provisioning, performance monitoring, fault isolation, and firmware upgrades are all handled centrally. Advanced security includes 128-bit AES encryption and MAC filtering .

  Broad Interoperability: Extensively tested for compatibility with all major OLT vendors—including Huawei, ZTE, Nokia, FiberHome, and VSOL—this 1GE XPON ONU ensures a seamless, plug-and-play experience across diverse network infrastructures .

Model: 1GE XPON ONU

Optical Interface: SC/APC or SC/UPC (Single Fiber)

XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

Data Rate: Up to 2.488 Gbps Downstream / 1.244 Gbps Upstream (GPON) / 1.25 Gbps Symmetric (EPON)

Wavelength: TX 1310nm, RX 1490nm

Optical Budget: Class B+ (28dB typical)

Transmission Distance: Up to 20KM

User Interface: 1 × 10/100/1000Base-T RJ45 (Auto MDI/MDIX)

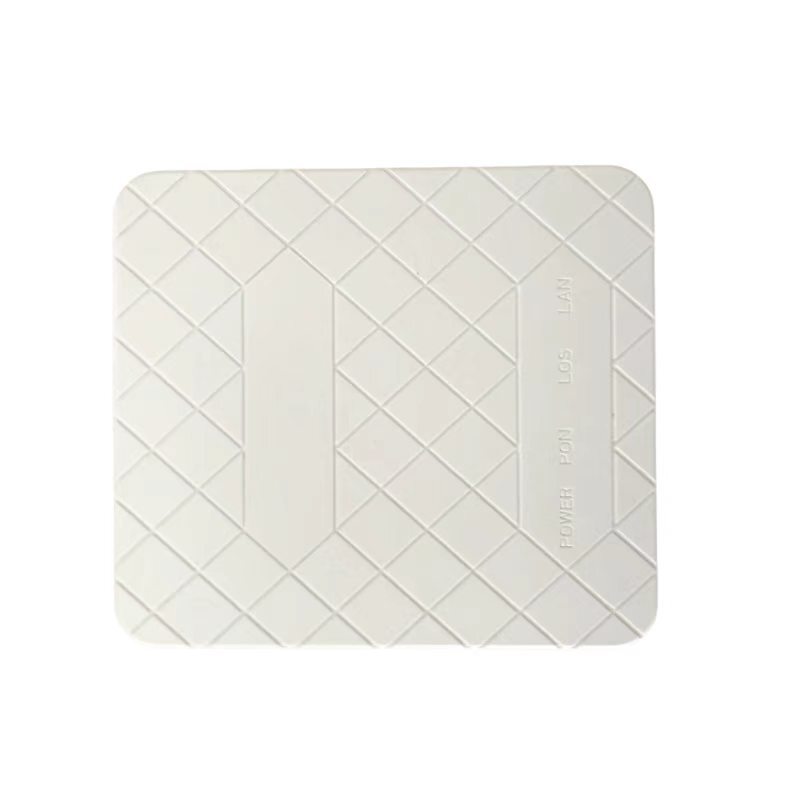

LED Indicators: PWR, PON, LOS, LAN

Management: OMCI (GPON), OAM (EPON), Web GUI, Telnet

Security: 128-bit AES Encryption, MAC Address Filtering

Power Supply: External 5V DC Adapter

Power Consumption: < 2.5W

Operating Temperature: -5°C to 50°C

Ordering Information

Looking for the simplest, most cost-effective way to deliver high-speed fiber internet? The 1GE XPON ONU is the reliable, low-maintenance CPE your FTTH project needs. [Contact our sales team] for a detailed datasheet and competitive bulk pricing.

Q: Is this 1GE XPON ONU just a media converter?
A: No. This is a full XPON ONU with an integrated PON MAC that terminates the GPON/EPON protocol, handles AES encryption, DBA, and OMCI/OAM. It functions as a complete optical network terminal, not merely a physical media converter. It authenticates with the OLT and delivers native Ethernet to the user’s device.

Q: Can I connect a WiFi router to this ONU?
A: Absolutely. The single Gigabit Ethernet port on this 1GE XPON ONU is designed to connect directly to the WAN port of any standard third-party wireless router. Simply plug your router into the ONU, and the router handles PPPoE dialing (if in bridge mode) to provide WiFi for the home or office.

Q: Will this ONU work with my existing GPON network?
A: Yes. This is a dual-mode XPON ONU, so it will automatically detect whether the OLT is operating in GPON or EPON mode and configure itself accordingly. It has been tested for interoperability with major OLT brands including Huawei, ZTE, Nokia, and FiberHome.

Q: What is the difference between this 1GE model and a 1GE+3FE model?
A: The 1GE XPON ONU provides a single Gigabit Ethernet port, perfect for deploying to a single user who will connect their own router or PC. The 1GE+3FE version adds three Fast Ethernet ports, useful when the subscriber has multiple wired devices like IPTV set-top boxes, but it comes at a slightly higher cost. For pure data BYOR scenarios, the 1GE XPON ONU is the most cost-efficient choice.

Q: How is the ONU managed after installation?
A: The XPON ONU is managed remotely by the OLT via standard OMCI (GPON) or OAM (EPON). Operators can remotely configure the device, monitor its optical signal strength, upgrade its firmware, and perform diagnostics without ever visiting the customer's premises.
