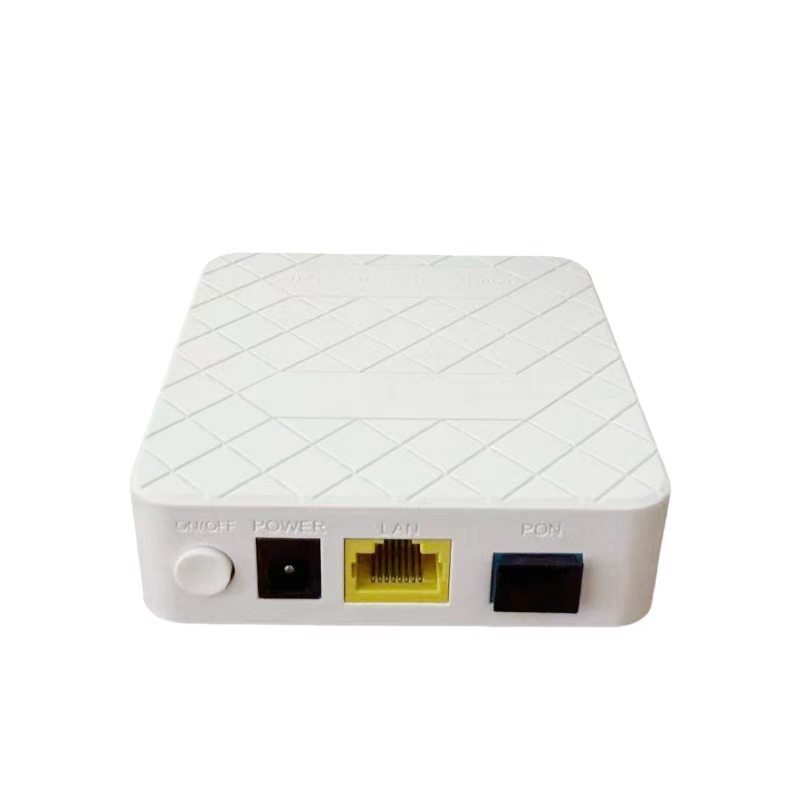

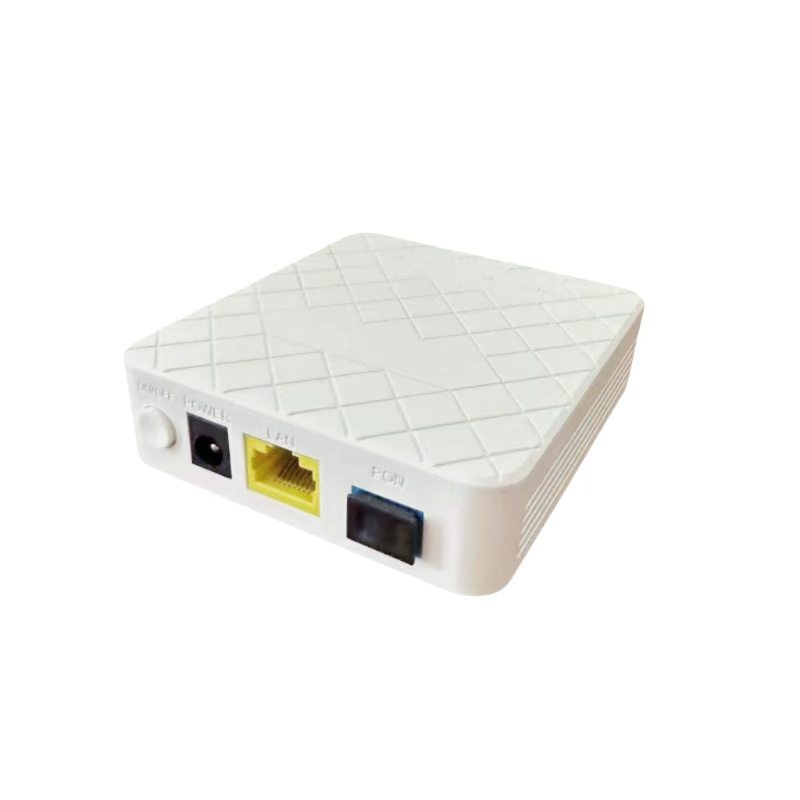

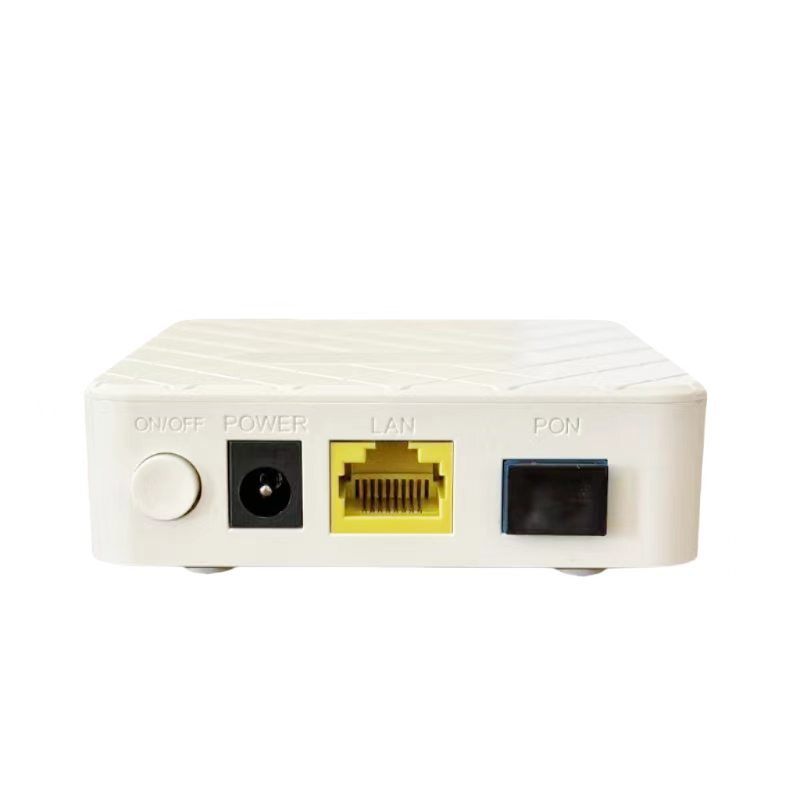

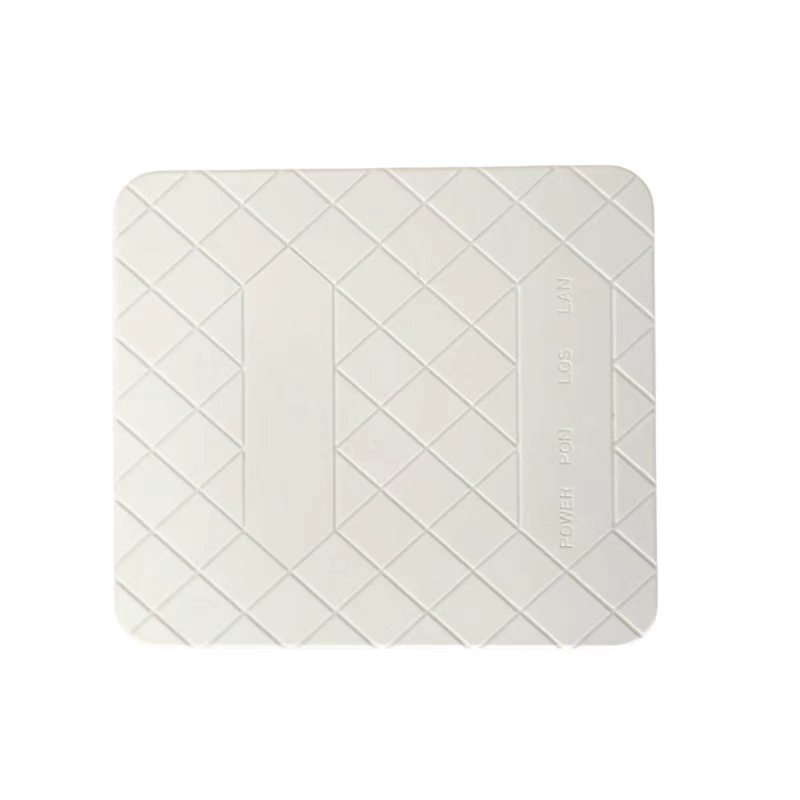

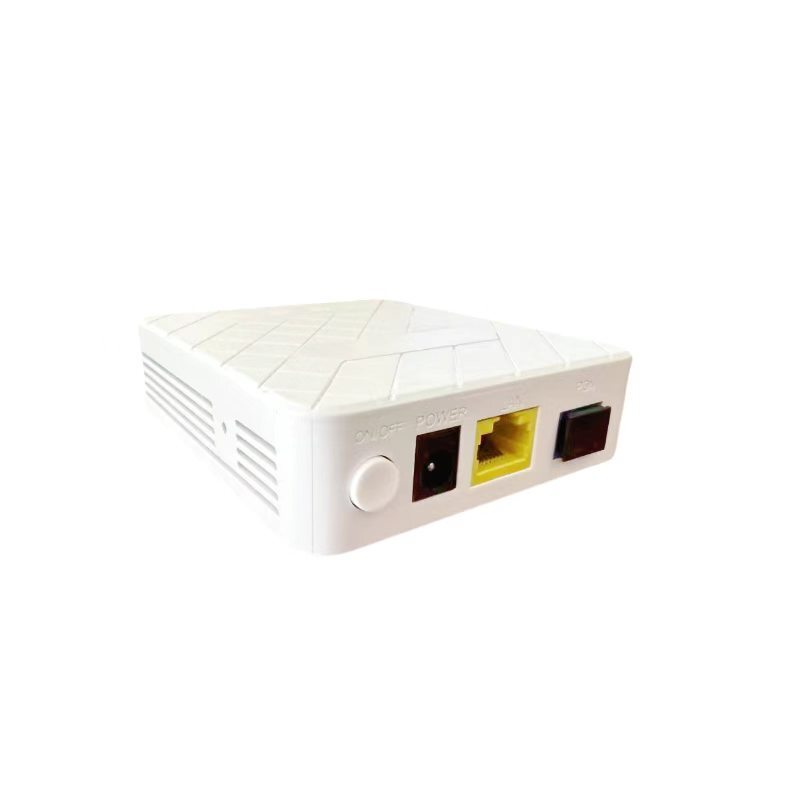

1GE XPON ONU | Single Port Gigabit Optical Network Unit | GPON/EPON Dual Mode
Description
The Flypon 1GE XPON ONU is a high-performance, single-user Optical Network Unit designed specifically for Fiber-to-the-Home (FTTH) deployments. Supporting both GPON and EPON modes automatically, this XPON ONU provides a seamless 1.25G/2.5G uplink and a full 1 Gigabit Ethernet (10/100/1000Mbps) LAN port. It is the perfect bridge solution for ISPs looking to deliver high-speed internet to residential users with minimal CPE cost.
Key Features:
· True XPON Dual Mode: Built with a chipset that auto-detects and switches between GPON (G.984) and EPON (802.3ah) standards. One XPON ONU fits all network infrastructures.
· Gigabit Wire-Speed Performance: Equipped with 1 x 10/100/1000Mbps RJ45 Port. No bottlenecks – enjoy full fiber speeds directly to your PC or home router.
· Compact & Green Design: The ultra-compact 1GE XPON ONU features a minimalist white housing with low power consumption (<2.5W), ideal for desktop or wall-mounted installation.
· Carrier-Class Management: Supports standard OMCI (ONT Management and Control Interface) and OAM protocols, ensuring this XPON ONT is fully compatible with major OLT vendors like ZTE, Huawei, and Nokia.
- Product Features
● Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
● Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
● Support China Telecom GPON CTC3.1 standard and expand OAM
● Support DBA reporting mechanism request
● Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
● Support to save configured parameters if power down
● Support to configure the work mode at the user port
● Support MDI-MDIX automatic-detection at the user port
● Support access authentication based on serial number
● Support access authentication based on MAC address
● Support 802.1Q VLAN
● Support traffic rule to modify the related priority
● Support to restore the factory settings
● Support the remote reset and reboot
● Support dying gasp outage alarm● Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
1GE EPON ONU – Reliable Gigabit Fiber Access for FTTH Deployments
· Uplink Interface: SC/APC or SC/UPC (Single Fiber)
· Downlink Interface: 1 * 10/100/1000Base-T (Auto MDI/MDIX)
· Standards: ITU-T G.984.x / IEEE 802.3ah
· Data Rate: Up to 2.488Gbps Downstream / 1.244Gbps Upstream
· Power Supply: External 5V DC Adapter
Tech parameters | Description |
Up-link interface | 1 XPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type：SC/UPC Optical power：0~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm，RX 1490nm |
Fiber connector | SC/UPC connector (SC / APC optional) |
Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 4 pcs |
DC supply interface | input＋12V 0.5A |
Power | ≤5W |
Operating temperature | -5～+55℃ |
Humidity | 5～95%（non-condensation） |
Storage temperature | -30～+70℃ |
Dimension（MM） | 85*85*28mm（mainframe） |
Weight | 0.24Kg（mainframe） |
FAQ
Q: Is this 1GE EPON ONU compatible with my existing GPON OLT?
A: No. This is a pure EPON ONU device compliant with IEEE 802.3ah. It is specifically designed to work with EPON OLTs. If your network uses GPON (ITU-T G.984), please refer to our GPON or XPON (dual-mode) ONU models. Mixing EPON and GPON devices on the same OLT port is not supported .
Q: What management protocols does this 1GE EPON ONU support?
A: This EPON ONU fully supports standard OAM (IEEE 802.3ah Clause 57 and extended OAM) as well as CTC OAM 2.0/2.1 specifications. This allows for remote configuration, performance monitoring, fault isolation, and firmware upgrades when paired with a compatible OLT management system .
Q: Can I use this 1GE EPON ONU for business or enterprise connections?
A: Yes. While ideally suited for residential FTTH, this 1GE EPON ONU is also perfect for FTTO scenarios. Its Gigabit Ethernet port provides sufficient bandwidth for small offices needing reliable high-speed data services. It operates in both bridge and router modes for flexible deployment .
Ordering Information
Searching for a stable, standards-based 1GE EPON ONU for your next FTTH project?
[Contact us] for detailed datasheets, interoperability test reports, and competitive wholesale pricing.
1GE XPON ONU (small type ) | 1*XPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,12V Power supply |
