1GE+3FE XPON ONU | 4-Port Dual Mode Gigabit ONT | GPON/EPON HGU Terminal

Product Overview

The Flypon 1GE+3FE XPON ONU is a versatile, high-performance Optical Network Unit designed for carriers and ISPs seeking a cost-effective multi-port CPE for Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) deployments. Supporting both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) modes with intelligent auto-detection, this XPON ONU delivers up to 2.488 Gbps downstream and 1.244 Gbps upstream via a single fiber connection. Equipped with 1 Gigabit Ethernet port and 3 Fast Ethernet ports, it provides flexible wired connectivity for routers, IPTV set-top boxes, desktop PCs, and other network devices—making it the ideal CPE for ISPs seeking a single SKU solution for mixed PON environments where multiple wired connections are required .

Key Features :

· XPON Dual Mode – One SKU for All PON Networks: Built with an advanced dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. A single XPON ONU model covers both network architectures, dramatically simplifying inventory management, reducing SKU proliferation, and future-proofing deployments for operators with mixed or evolving PON infrastructures .

· Flexible Multi-Port Wired Connectivity: The XPON ONU provides 1×10/100/1000Mbps auto-negotiation RJ45 port for gigabit-capable devices such as high-speed routers, gaming consoles, or NAS systems, plus 3×10/100Mbps RJ45 ports for IPTV set-top boxes, desktop computers, network printers, or smart home hubs. This 4-port configuration eliminates the need for an external switch in multi-device home and SOHO environments .

· Carrier-Grade Management & Security: Supports comprehensive OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling centralized remote configuration, performance monitoring, fault isolation, and firmware upgrades. Advanced features including port-based VLAN (802.1Q), QoS prioritization (802.1p), and IGMP snooping ensure optimal traffic management and service isolation .

· High Optical Power Budget (Class B+): The XPON ONU optics are designed for Class B+ performance, supporting a maximum optical path loss of up to 28dB and a transmission distance of 20KM. With support for up to 1:128 split ratio on GPON and 1:64 on EPON, this ensures reliable connectivity even at the edge of the PON distribution network .

· Compact & Energy-Efficient Design: The 1GE+3FE XPON ONU features a minimalist, lightweight plastic housing with ultra-low power consumption (typically < 4W). Ideal for desktop placement or wall-mounted installation in residential FTTH, SOHO, and small business environments where multiple wired connections are required without the complexity of additional networking equipment .

• Product Feature




  1.Plug and play, auto discovery, configuration and upgrade.

  2.Support OAM remote configuration management function.

  3.Optical port has the function of optical power detection,optical transmission
   cut off etc.

  4.Rich VLAN and multicast functions.

  5.It can interflow well with Broadcom, PMC,Cortina and other OLT equipment .

  6.Support route,NAT and firewall functions.

•

•

•


Technical Parameter

1GE+3FE XPON ONU – Multi-Port Dual Mode Fiber Terminal for Flexible FTTH Deployments

· Optical Interface: SC/APC or SC/UPC (Single Fiber)

· XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

· Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

· Wavelength: TX 1310nm, RX 1490nm

· Optical Budget: Class B+ (28dB typical), Max Distance 20KM

· User Interfaces:

  · 1 × 10/100/1000Base-T RJ45 (GE Port, Auto MDI/MDIX)

  · 3 × 10/100Base-T RJ45 (FE Ports, Auto MDI/MDIX)

· LED Indicators: PWR, PON, LOS, LAN1 (GE), LAN2-4 (FE)

· Management: OMCI (GPON), OAM (EPON), Web GUI, Telnet, TR-069 (Optional)

· VLAN: 802.1Q Tag/Untag VLAN, VLAN Transparent, Port-Based VLAN

· QoS: 802.1p Priority, SP/WRR Scheduling, Rate Limiting per Port

· Security: MAC Address Filtering, Broadcast Storm Control, 128-bit AES Encryption (GPON)

· Multicast: IGMP Snooping v1/v2/v3

· Power Supply: External 12V DC Adapter

· Power Consumption: < 4W

· Operating Temperature: -5°C to 50°C

· Operating Humidity: 10% to 90% RH (Non-condensing)

Data service function

1.Full line speed ,non blocking switching.

2.MAC:1k.

3.Support 64 full VLAN ID.

4.Support VLAN QinQ, pass through,tag,translation,trunk etc.

5.Support port monitoring, port mirroring, port speed limit, port SLA etc.

6.Support auto MDIX.

7.Support IEEE802.1p,QoS.

8.Support IPv4 IGMP snooping and IPv6 MLD snooping.

9.Supports bridging connection , routing, bridging connection/ routing mixed mode.

10.Support NAT, virtual server etc.

11.Support firewall function.

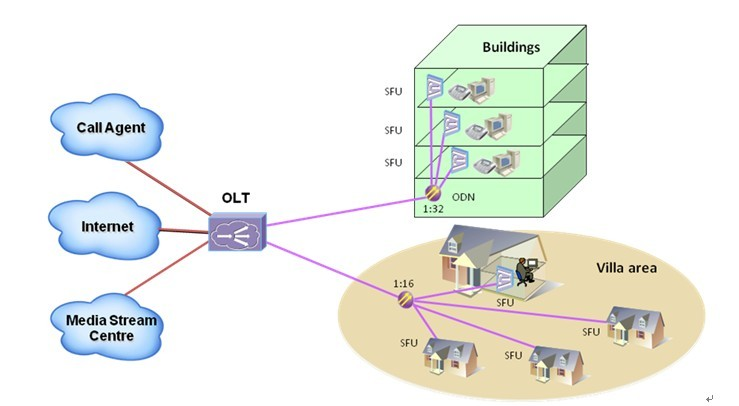

Application Solution

Call to Action:

Looking for a reliable, multi-port 1GE+3FE XPON ONU that works seamlessly in both GPON and EPON networks? [Contact our sales team] for detailed datasheets, interoperability test reports, and competitive wholesale pricing.

•


  Model	Description
  1GE+3FE XPON ONU	ONU ,adaptor ,packing box




  FAQ:

  Q: Is this 1GE+3FE XPON ONU compatible with both GPON and EPON OLTs?



  A: Yes. This XPON ONU features dual-mode auto-detection technology. It automatically identifies whether the connected OLT is operating in GPON (ITU-T G.984) or EPON (IEEE 802.3ah) mode and configures itself accordingly. This makes it a universal CPE solution for operators managing mixed PON environments or migrating from EPON to GPON .



  Q: Can I connect all four Ethernet ports simultaneously?



  A: Yes. All four ports on this XPON ONU can be used simultaneously. The GE port (LAN1) supports speeds up to 1000Mbps—ideal for connecting a WiFi router or high-performance PC. The three FE ports (LAN2-4) support speeds up to 100Mbps—perfect for IPTV set-top boxes, desktop computers, or network printers. Each port operates independently with auto MDI/MDIX support .



  Q: What management protocols does this XPON ONU support?



  A: This XPON ONU fully supports OMCI (ONT Management and Control Interface per ITU-T G.988) for GPON mode and OAM (IEEE 802.3ah Clause 57) for EPON mode. This dual management capability enables remote configuration, performance monitoring, fault isolation, and firmware upgrades regardless of the underlying PON technology .



  Q: Does this 1GE+3FE XPON ONU support VLAN configuration for service isolation?



  A: Yes. The XPON ONU supports comprehensive VLAN features including 802.1Q tag/untag VLAN, VLAN transparent transmission, and port-based VLAN. This allows ISPs to isolate different services—for example,assigning the GE port to internet data and one FE port to IPTV on separate VLANs for secure service delivery .



  Q: What is the difference between the GE port and the FE ports on this device?



  A: The GE (Gigabit Ethernet) port supports speeds up to 1000Mbps and is designed for high-bandwidth applications like connecting to a gigabit WiFi router, gaming console, or NAS device. The FE (Fast Ethernet) ports support speeds up to 100Mbps—more than sufficient for IPTV set-top boxes (which typically require only 10-20Mbps per HD stream), desktop PCs, or network printers. This port configuration on the 1GE+3FE XPON ONU optimizes both performance and cost .



  Q: Can this XPON ONU be used in a business or enterprise environment?



  A: Yes. While ideally suited for residential FTTH, this 1GE+3FE XPON ONU is also well-suited for FTTO and SOHO scenarios. Its multi-port design allows small offices to connect multiple wired devices directly without requiring an additional switch—ideal for connecting a primary router, desktop PC, network printer, and backup device simultaneously .

•

•

•
