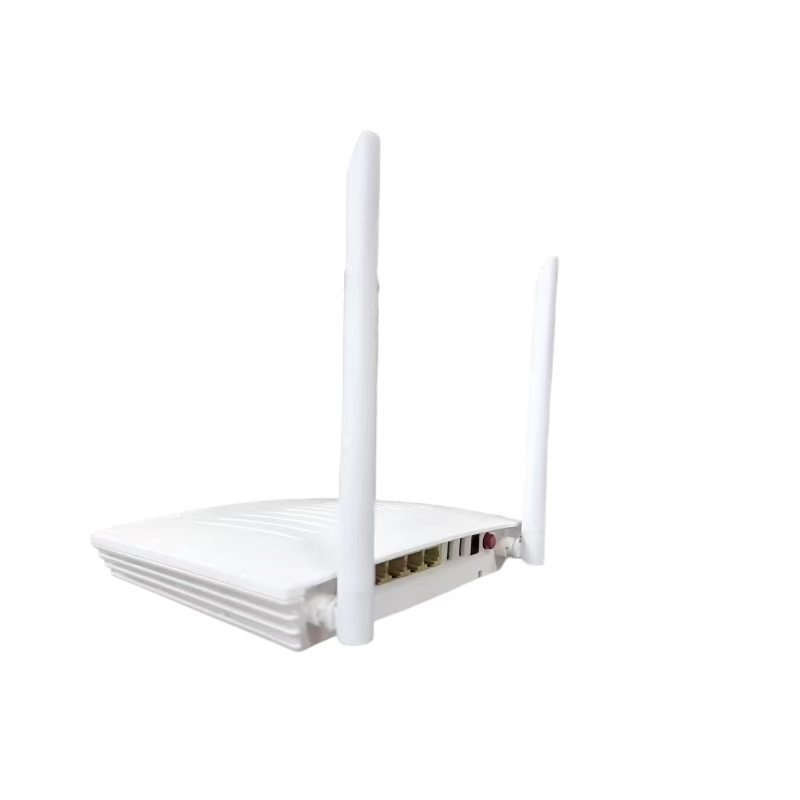

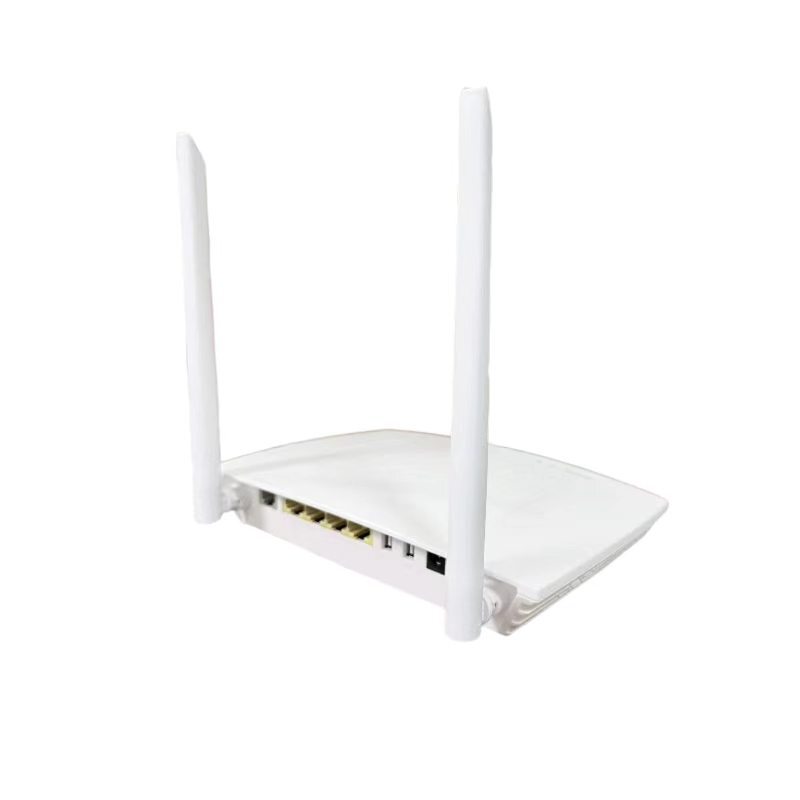

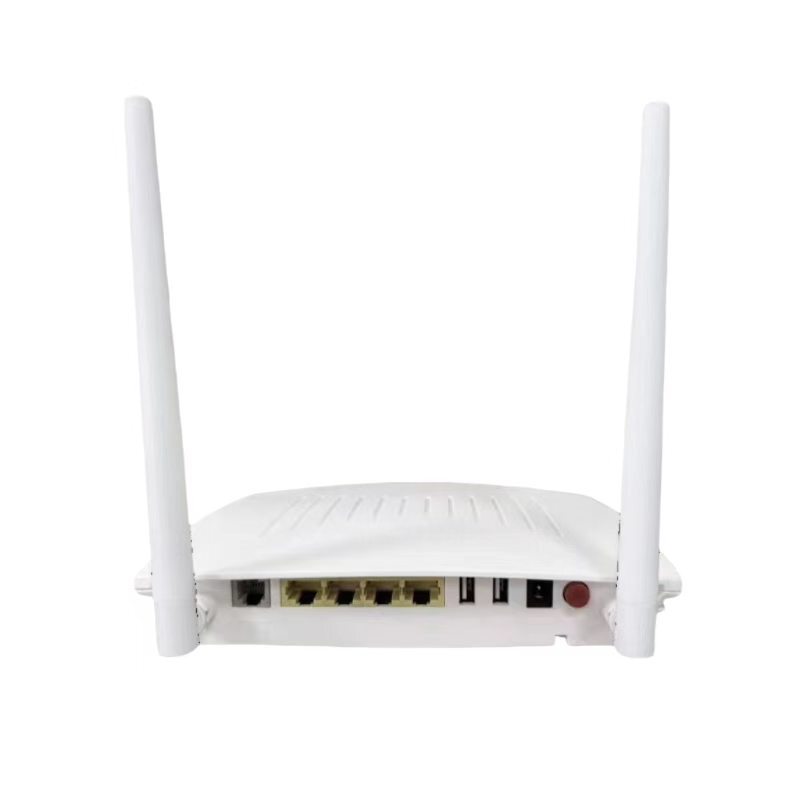

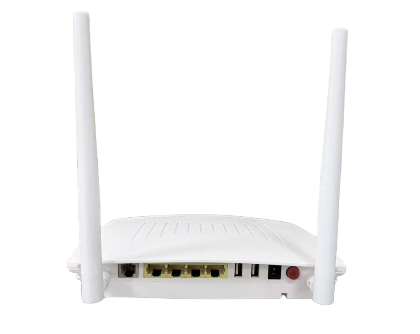

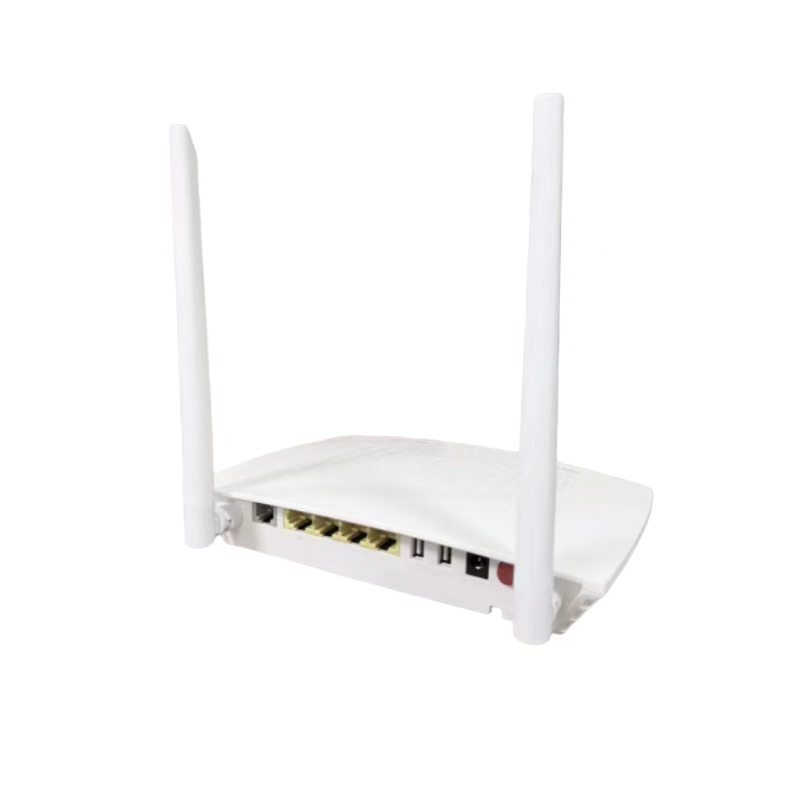

1GE+3FE+1Voice WiFi XPON ONU | Dual Band 2-Antenna ONT | GPON/EPON Triple-Play Gateway

Product Overview

The Flypon 1GE+3FE+1Voice Dual Band WiFi XPON ONU is a versatile, cost-optimized Optical Network Unit designed for ISPs and telecom operators delivering converged FTTH services to residential subscribers. Supporting both GPON and EPON modes with automatic detection, this XPON ONU integrates 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 FXS voice port, and a reliable dual-band WiFi module with 2 external high-gain antennas. It delivers high-speed internet, stable IPTV streaming, carrier-grade VoIP telephony, and whole-home wireless coverage at an attractive price point—making it the ideal CPE for mass-market triple-play deployments .

Key Features :

· XPON Dual Mode – One Device for All PON Networks: Equipped with a dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. A single XPON ONU model covers mixed-network environments, reducing inventory overhead and simplifying logistics for operators managing diverse OLT infrastructures

· Dual-Band WiFi with 2 External Antennas: Features 2 external 5dBi high-gain antennas with concurrent 2.4GHz + 5GHz dual-band WiFi. This WiFi XPON ONU delivers combined wireless speeds up to 1200Mbps (300Mbps @ 2.4GHz + 867Mbps @ 5GHz). Supports 2T2R MIMO, beamforming, and multi-SSID broadcasting—providing reliable whole-home coverage with reduced 2.4GHz congestion and a clean 5GHz band for high-bandwidth applications .

· Full Triple-Play Service Suite: The 1GE+3FE+1Voice XPON ONU offers comprehensive wired connectivity with 1×10/100/1000Mbps GE port for gigabit routers or high-speed devices, 3×10/100Mbps FE ports for IPTV set-top boxes or wired peripherals, and 1×FXS RJ11 voice port for traditional analog telephones. VLAN tagging and QoS per port ensure service isolation and traffic prioritization .

· Carrier-Grade VoIP Telephony: The built-in FXS port supports both SIP and H.248/MEGACO protocols, ensuring seamless interoperability with major softswitch platforms including BroadSoft, Huawei IMS, ZTE IMS, and Metaswitch. Comprehensive voice features include G.711/G.729 codecs, T.38/T.30 fax over IP, caller ID, call waiting, call forwarding, three-way conferencing, and GR-909 line testing for remote fault diagnosis .

· Robust Remote Management & Provisioning: Supports standard OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling centralized remote configuration, firmware upgrades, performance monitoring, and fault isolation. Optional TR-069 support facilitates seamless integration with ACS platforms for true zero-touch deployment

• Technical Specification




  1.Power adapter input：12V DC，1.5A.
  2.System power supply:  See the nameplate on the device.
  3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：
  10% ~ 4.95%(non-condensing).
  5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).

•

•

•


Hardware Specification

Software Specification

· Model: 1GE+3FE+1Voice Dual Band WiFi XPON ONU – Cost-Effective Triple-Play Fiber Gateway

· Optical Interface: SC/APC or SC/UPC (Single Fiber)

· XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

· Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

· Wavelength: TX 1310nm, RX 1490nm

· Optical Budget: Class B+ (28dB typical), Max Distance 20KM

· User Interfaces:

  · 1 × 10/100/1000M RJ45 (GE Port)

  · 3 × 10/100M RJ45 (FE Ports)

  · 1 × FXS RJ11 (Voice Port)

· Wireless Specifications:

  · Standards: IEEE 802.11a/b/g/n/ac

  · Dual Band Concurrent: 2.4GHz + 5GHz

  · Combined Speed: Up to 1200Mbps (300Mbps @ 2.4GHz + 867Mbps @ 5GHz)

  · Antennas: 2 × 5dBi External High-Gain Antennas

  · MIMO: 2T2R with Beamforming Support

  · Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

  · Multi-SSID: Up to 4 SSIDs per band

  · Max Clients: 32+ Concurrent Users

· VoIP Protocols: SIP (RFC 3261) / H.248

· Voice Codecs: G.711 a/μ-law, G.729, G.723.1, G.726

· Fax Support: T.38 FoIP / T.30 G.711 Pass-through

· Management: OMCI (GPON), OAM (EPON), TR-069 (Optional), Web GUI, Telnet, SSH

· Power Consumption: < 8W

· Operating Temperature: -5°C to 50°C

Applicant

Deploying a cost-sensitive FTTH triple-play service? The 1GE+3FE+1Voice Dual Band WiFi XPON ONU delivers the perfect balance of features and affordability. [Contact our sales team] for bulk pricing, sample requests, and detailed interoperability documentation.

•


•


  Model	Description
  4GE+1 PORTS+4 Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,4 *1000M LAN ports, 1 voice ports WIFI ONU
  1GE+3FE+1PORTS+4Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,1*1000M+ 3*100M LAN ports, 1 voice ports WIFI ONU




  FAQ

  Q: What is the difference between the 2-antenna and 4-antenna versions of this XPON ONU?

  A: The primary difference lies in WiFi MIMO configuration and coverage capability. The 2-antenna version uses 2T2R MIMO with two spatial streams, delivering up to 867Mbps on 5GHz—sufficient for standard apartments and small homes. The 4-antenna version uses 4T4R MIMO, offering better signal penetration and higher throughput for larger spaces. This 2-antenna WiFi XPON ONU provides excellent performance at a lower cost, making it ideal for mass-market residential deployments .

  Q: Does this dual-band XPON ONU support separate SSIDs for 2.4GHz and 5GHz?

  A: Yes. The dual-band WiFi XPON ONU allows you to broadcast separate SSIDs for the 2.4GHz and 5GHz bands, or combine them under a single SSID with band steering. Additionally, up to 4 SSIDs per band can be configured—enabling separate networks for home data, guest access, and IPTV wireless distribution, each with independent VLAN binding and security settings .

  Q: Can the FXS voice port function when the ONU is in Bridge Mode?

  A: Yes. Even when the data channel is configured for Bridge Mode (with PPPoE handled by the subscriber's router), the FXS voice port operates independently and registers directly with the VoIP softswitch. Voice and data services are logically isolated within the XPON ONU, ensuring both function relaibly without mitual interface.

  Q: Is this 1GE+3FE+1Voice XPON ONU compatible with major OLT vendors?

  A: Absolutely. This XPON ONU is tested for interoperability with OLTs from Huawei (MA5600 series), ZTE (C300/C320 series), Nokia (7360 ISAM series), FiberHome (AN5500 series). Standard OMCI/OAM protocols ensure seamless discovery, provisioning, and management across mixed-vendor GPON and EPON environments .

  Q: What WiFi coverage area can I expect from the two external antennas?

  A: With 2×5dBi external high-gain antennas and beamforming support, this WiFi XPON ONU typically provides reliable coverage for apartments and single-family homes up to 100-120 square meters (approximately 1000-1300 square feet) . Actual coverage depends on wall materials, interference sources, and device placement. The dual-band capability allows bandwidth-intensive devices to connect via the less congested 5GHz band for optimal performance .

  Q: Does this device support IPTV over WiFi?

  A: Yes. The XPON ONU supports VLAN-to-SSID binding, allowing a dedicated SSID to be mapped to the IPTV VLAN. This enables wireless set-top boxes to receive IPTV streams without interfering with the primary internet data network .

•

•

•
