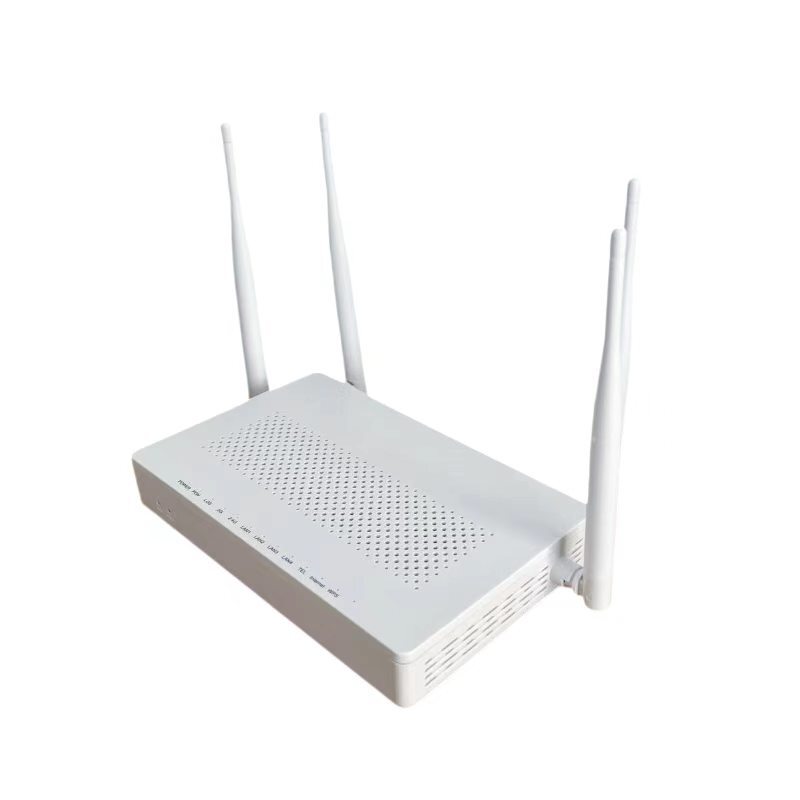

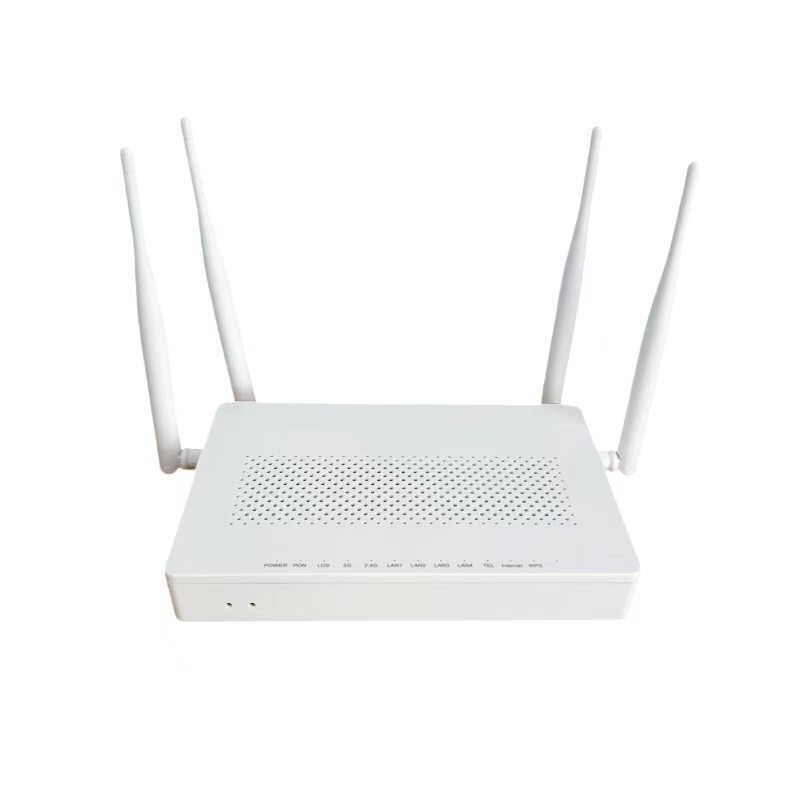

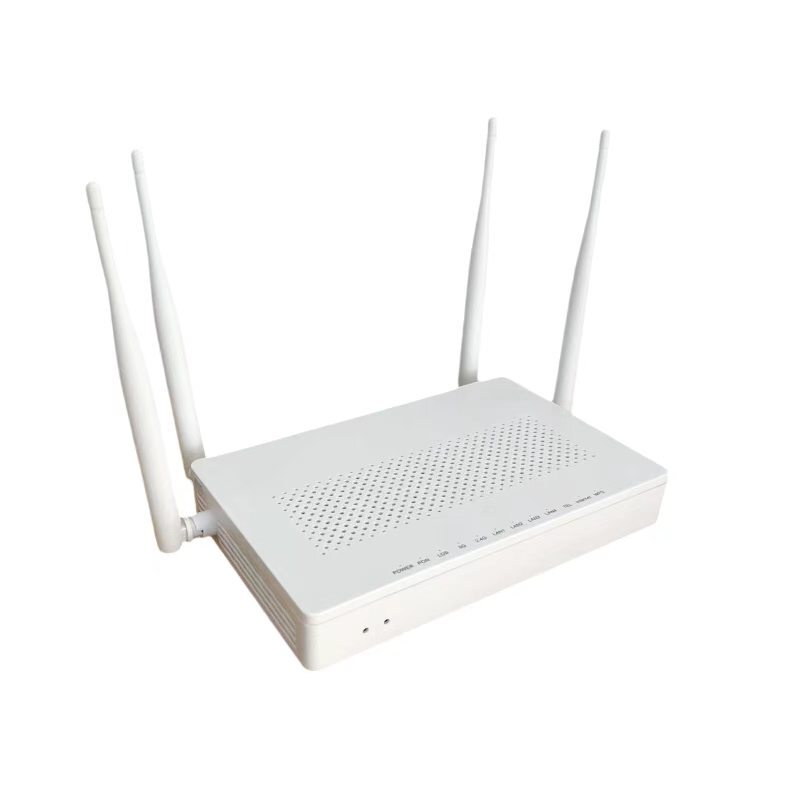

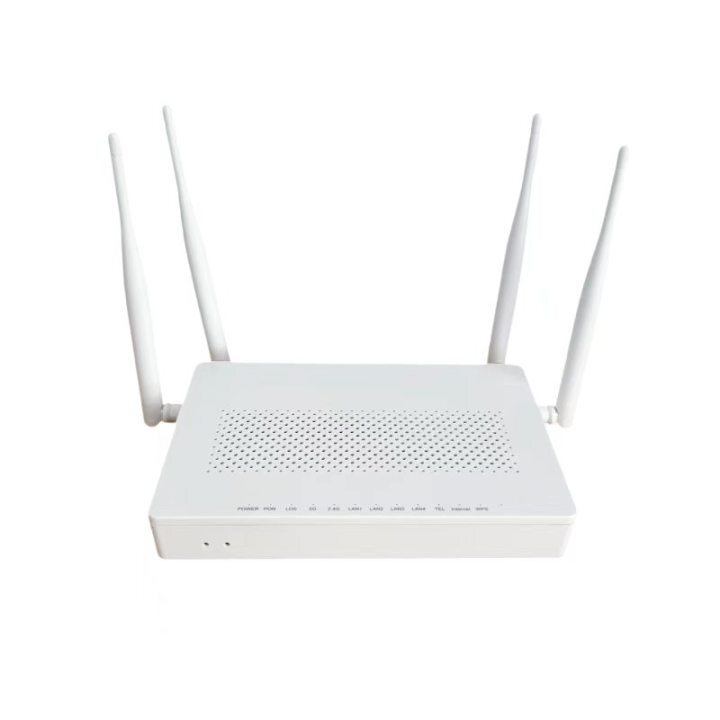

1GE+3FE+1Voice WiFi XPON ONU | Dual Band 4-Antenna ONT | GPON/EPON Triple-Play Gateway

Product Overview

1GE+3FE+1 PORTS+4 Antennas dual band WIFI XPON ONU series is a broadband terminal device ,in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON/GPON  technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah ，ITU-TG.984.x standard .

The Flypon 1GE+3FE+1Voice Dual Band WiFi XPON ONU is a feature-rich Optical Network Unit engineered for operators and subscribers who demand superior wireless coverage alongside full triple-play services. Supporting both GPON and EPON modes with intelligent auto-detection, this XPON ONU packs 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 FXS voice port, and a powerful dual-band WiFi module with 4 external high-gain antennas. With combined wireless speeds of up to 1200Mbps and 4T4R MIMO beamforming, this 4-antenna WiFi XPON ONU eliminates dead zones and delivers robust, whole-home connectivity—making it the premium CPE choice for modern FTTH deployments, home offices, and multi-device households .

Key Features

XPON Dual Mode – Universal PON Compatibility: Built with an advanced dual-mode chipset, this XPON ONU automatically detects and switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah). A single SKU covers both network architectures, dramatically reducing inventory complexity for operators managing mixed or evolving PON environments .

Dual-Band WiFi with 4 High-Gain Antennas: Equipped with 4 external 5dBi antennas and simultaneous 2.4GHz + 5GHz dual-band WiFi, this WiFi XPON ONU delivers combined speeds up to 1200Mbps (300Mbps on 2.4GHz + 867Mbps on 5GHz). The 4T4R MIMO architecture and beamforming technology provide exceptional signal penetration, extended range, and stable connections for dozens of devices simultaneously—perfect for 4K streaming, online gaming, and video conferencing throughout larger homes .

Full Triple-Play Service Suite: The 1GE+3FE+1Voice XPON ONU provides flexible wired connectivity: 1×10/100/1000Mbps GE port for high-bandwidth devices (gigabit routers, gaming PCs, NAS), 3×10/100Mbps FE ports for IPTV set-top boxes or secondary wired devices, and 1×FXS RJ11 voice port for carrier-grade VoIP telephony. VLAN tagging and QoS per port ensure strict service isolation and traffic prioritization across data, video, and voice .

Carrier-Grade VoIP with Dual-Protocol Support: The integrated FXS port supports both SIP and H.248/MEGACO protocols, ensuring seamless interoperability with major softswitch platforms (BroadSoft, Huawei IMS, ZTE IMS). Voice features include G.711/G.729 codecs, T.38/T.30 fax over IP, caller ID, call waiting, three-way conferencing, and GR-909 line testing for remote diagnostics.

Comprehensive Remote Management: Fully supports OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling centralized remote configuration, bulk firmware upgrades, real-time performance monitoring, and rapid fault isolation. Optional TR-069 support facilitates ACS integration for true zero-touch deployment .

• Technical Specification




  1.Power adapter input：12V DC，1.5A.
  2.System power supply:  See the nameplate on the device.
  3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：
  10% ~ 4.95%(non-condensing).
  5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).




  Model: 1GE+3FE+1Voice Dual Band WiFi XPON ONU

  Optical Interface: SC/APC or SC/UPC (Single Fiber)

  XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

  Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

  Wavelength: TX 1310nm, RX 1490nm

  Optical Budget: Class B+ (28dB typical), Max Distance 20KM

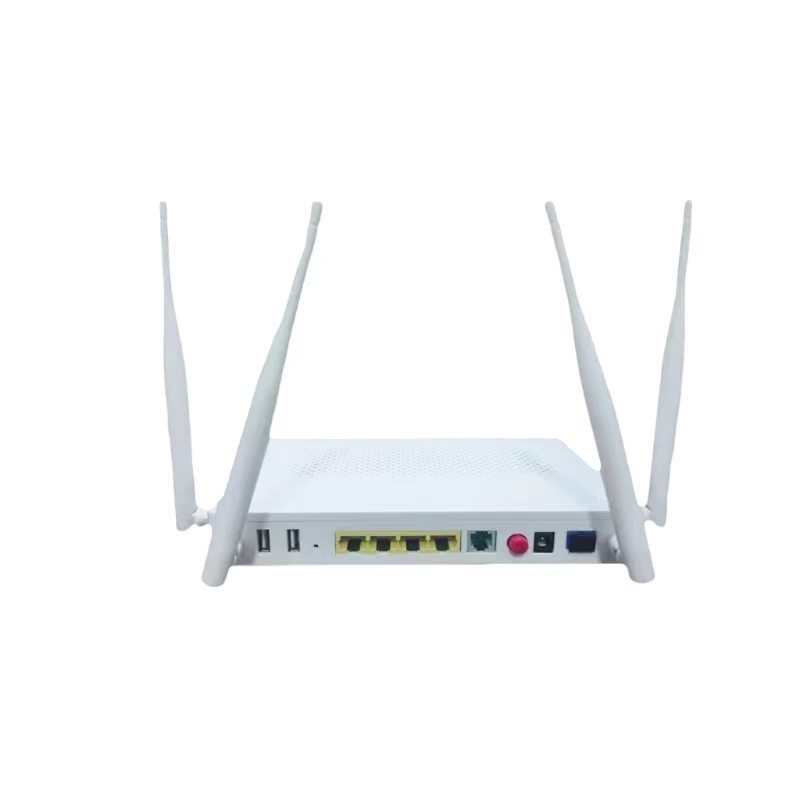

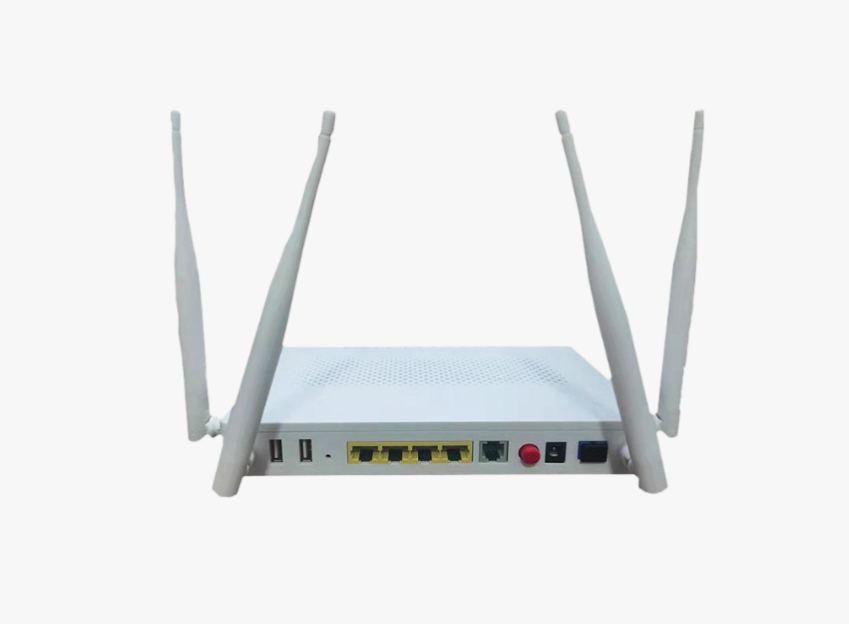

  User Interfaces:

  1 × 10/100/1000M RJ45 (GE Port)

  3 × 10/100M RJ45 (FE Ports)

  1 × FXS RJ11 (Voice Port)

  Wireless Specifications:

  Standards: IEEE 802.11a/b/g/n/ac

  Dual Band Concurrent: 2.4GHz + 5GHz

  Combined Speed: Up to 1200Mbps (300Mbps + 867Mbps)

  Antennas: 4 × 5dBi External High-Gain Antennas

  MIMO: 4T4R with Beamforming

  Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

  Multi-SSID: Up to 4 SSIDs per band

  Max Clients: 64+ Concurrent Users

  VoIP Protocols: SIP (RFC 3261) / H.248

  Voice Codecs: G.711 a/μ-law, G.729, G.723.1, G.726

  Fax Support: T.38 FoIP / T.30 G.711 Pass-through

  Management: OMCI (GPON), OAM (EPON), TR-069 (Optional), Web GUI, Telnet, SSH

  Power Consumption: < 10W

  Operating Temperature: -5°C to 50°C




•

•

•


Hardware Specification

• Software Specification




  Parameter Name	Software Parameter
  	EPON/GPON
  LAN	Support Port rate limiting Support Loop detection
  VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode
  Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
  QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
  L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server
  DHCP	Support DHCP Server
  VOIP	Support SIP protocol， Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent， Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length， Support high/low speed fax/Modem, bypass fax, and T38 fax， Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing ， Support Line testing according to GR-909.
  Wireless	Support 802.11b/g/n/ac and Mixed mode, Support 2 SSID , Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES,TKIP encryption.
  USB	DLNA DMS File/Printer Sharing USB backup/Restore confguration  3G dongle
  Performance	Data loss: <1*10E-12. Call loss: <0.01%.
  Security	Support Firewall Support Mac filter Support ACL Support URL filter
  Management	Support OMCI(ITU-T G.984.x).
  	Support WEB. Support TR069. Support TELNET. Support CLI.




•

•

•


Applicant

•


  Model	Description
  4GE+1 PORTS+4 Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,4 *1000M LAN ports, 1 voice ports WIFI ONU
  1GE+3FE+1PORTS+4Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,1*1000M+ 3*100M LAN ports, 1 voice ports WIFI ONU




  Delivering premium whole-home WiFi to your FTTH subscribers? The 1GE+3FE+1Voice Dual Band WiFi XPON ONU with 4 high-gain antennas provides the coverage and performance your customers expect. [Contact our sales team] for competitive wholesale pricing, evaluation samples, and full interoperability documentation.




  FAQ




  Q: What makes the 4-antenna design better than a 2-antenna ONU?
  A: This XPON ONU uses 4T4R MIMO with four external 5dBi antennas. Compared to 2-antenna (2T2R) models, it provides superior spatial diversity—delivering better signal penetration through walls, wider coverage, and higher throughput for multiple simultaneous devices. This makes it ideal for larger homes and offices where consistent WiFi in every room is critical.

  Q: Can the two WiFi bands be used simultaneously?
  A: Yes. The dual band WiFi XPON ONU broadcasts both 2.4GHz and 5GHz concurrently. The 2.4GHz band offers extended range for IoT devices and basic browsing, while the 5GHz band provides high-speed, low-interference connectivity for 4K streaming, gaming, and video conferencing. Devices can seamlessly connect to the optimal band.

  Q: Does the voice port work when the ONU is in Bridge Mode?
  A: Absolutely. Even when the data channel is set to Bridge Mode (PPPoE on a downstream router), the FXS voice port operates independently and registers directly with the VoIP softswitch via SIP or H.248. Voice and data services are fully isolated within the XPON ONU.

  Q: Is this ONU compatible with my existing OLT?
  A: This 1GE+3FE+1Voice XPON ONU is tested for interoperability with OLTs from Huawei, ZTE, Nokia, FiberHome, and VSOL. Its dual-mode capability ensures it works on both GPON and EPON networks using standard OMCI/OAM protocols.

  Q: Can I use all four Ethernet ports and WiFi simultaneously?
  A: Yes. The GE port, three FE ports, and dual-band WiFi all operate concurrently. VLAN tagging per port and SSID ensures that services like IPTV, VoIP, and internet can be securely separated while sharing the same PON fiber link.

•

•

•
