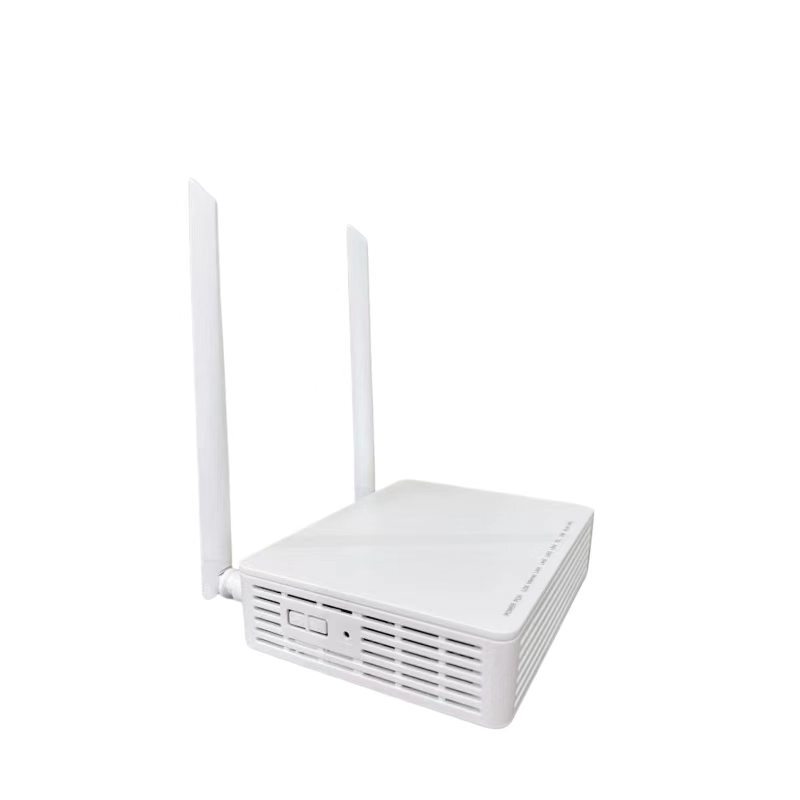

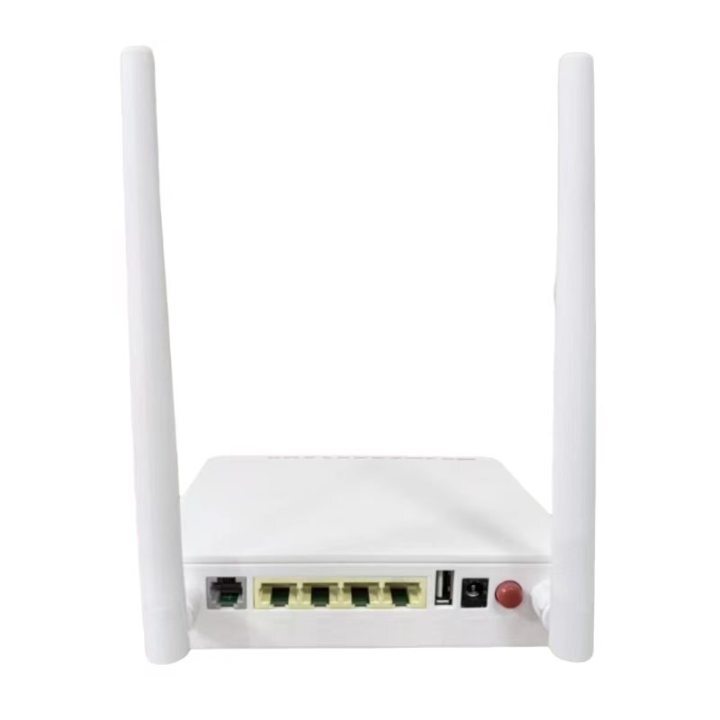

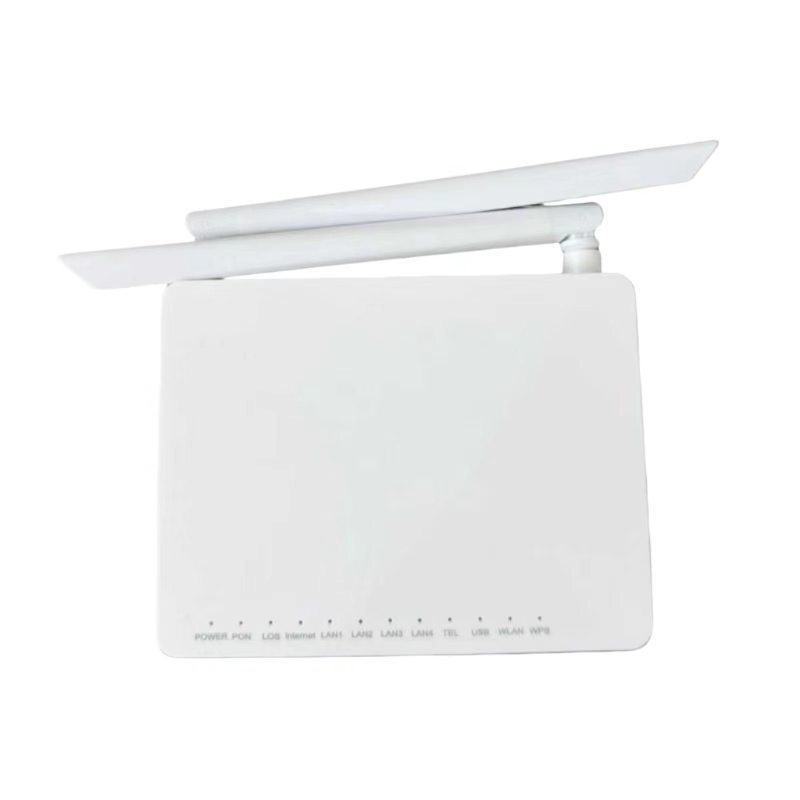

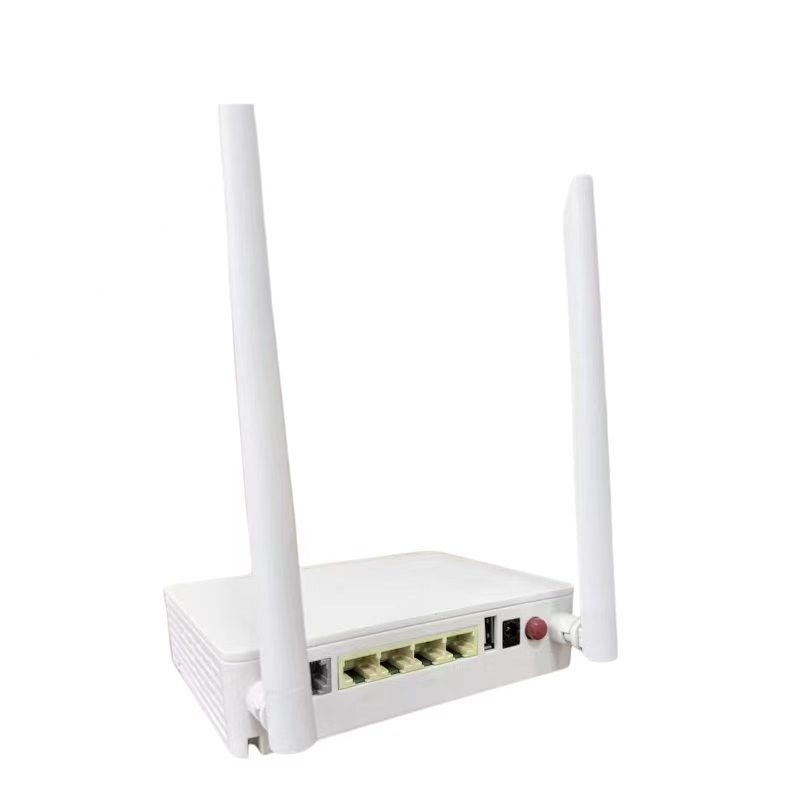

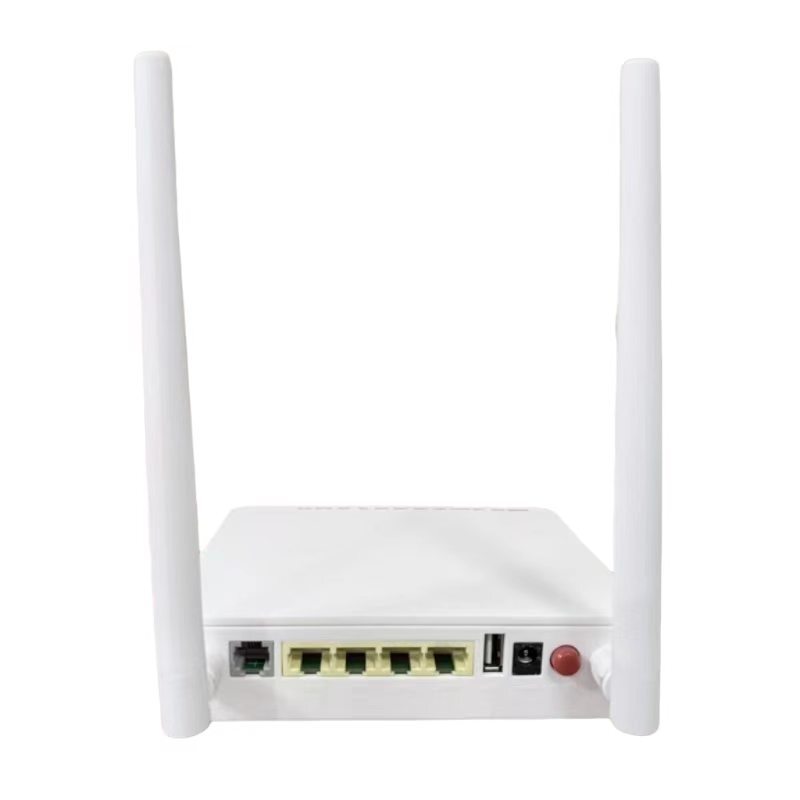

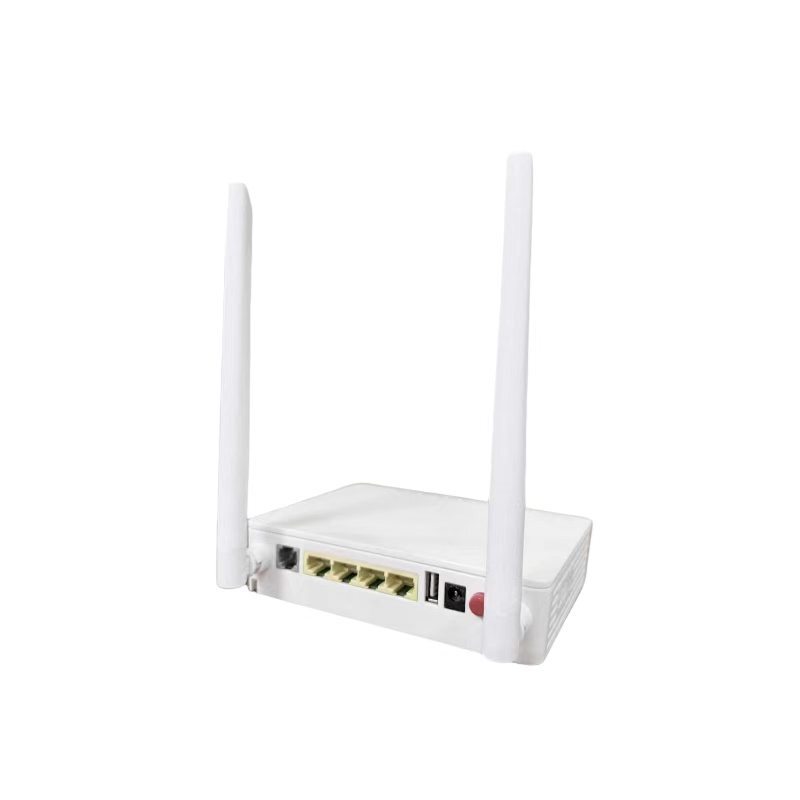

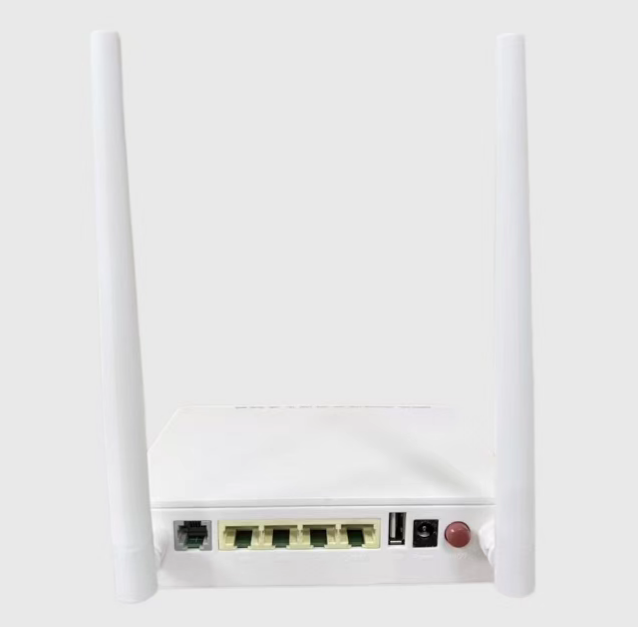

1GE+3FE+1Voice WiFi XPON ONU | Single Band 2-Antenna ONT | GPON/EPON Triple-Play Terminal

Product Overview

The Flypon 1GE+3FE+1Voice Single Band WiFi XPON ONU is a cost-effective, all-in-one Optical Network Unit designed for ISPs and telecom operators delivering essential FTTH triple-play services to budget-conscious residential subscribers. Supporting both GPON and EPON modes with automatic detection, this XPON ONU combines 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 FXS voice port, and a reliable single-band 2.4GHz WiFi module with 2 external high-gain antennas. It provides stable high-speed internet access, IPTV connectivity, carrier-grade VoIP telephony, and fundamental wireless coverage—all at the most competitive price point for mass-market fiber deployments .

Key Features :

XPON Dual Mode – Universal PON Compatibility: Built with a dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. A single XPON ONU SKU covers both network types, dramatically reducing inventory complexity and deployment costs for operators managing heterogeneous OLT environments .

Single-Band 2.4GHz WiFi with 2 External Antennas: Features 2 external 5dBi high-gain antennas delivering stable 2.4GHz single-band WiFi with speeds up to 300Mbps (802.11n). This WiFi XPON ONU provides reliable whole-home coverage for everyday internet activities—web browsing, social media, email, and video streaming. Supports 2T2R MIMO technology for improved signal quality and reduced dead zones .

Complete Triple-Play Connectivity Suite: The 1GE+3FE+1Voice XPON ONU delivers comprehensive wired and wireless access with 1×10/100/1000Mbps GE port for gigabit-capable devices, 3×10/100Mbps FE ports for IPTV set-top boxes, desktop PCs, or other wired peripherals, and 1×FXS RJ11 voice port for traditional analog telephone service. VLAN tagging per port ensures proper service isolation and QoS enforcement .

Carrier-Grade VoIP Telephony: The integrated FXS port supports both SIP and H.248/MEGACO protocols, ensuring seamless interoperability with major softswitch platforms including BroadSoft, Huawei IMS, ZTE IMS, and Metaswitch. Full voice feature set includes G.711/G.729 codecs, T.38/T.30 fax over IP, caller ID, call waiting, call forwarding, three-way conferencing, and GR-909 line testing for efficient remote diagnostics .

Robust Remote Management & Provisioning: Supports standard OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling centralized remote configuration, firmware upgrades, performance monitoring, and fault isolation. Optional TR-069 support facilitates seamless integration with ACS platforms for true zero-touch deployment and reduced truck rolls .

• Technical Specification




  Model: 1GE+3FE+1Voice Single Band WiFi XPON ONU – Entry-Level Triple-Play Fiber Gateway

  Optical Interface: SC/APC or SC/UPC (Single Fiber)

  XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

  Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

  Wavelength: TX 1310nm, RX 1490nm

  Optical Budget: Class B+ (28dB typical), Max Distance 20KM

  User Interfaces:

  1 × 10/100/1000M RJ45 (GE Port)

  3 × 10/100M RJ45 (FE Ports)

  1 × FXS RJ11 (Voice Port)

  Wireless Specifications:

  Standards: IEEE 802.11b/g/n

  Frequency Band: 2.4GHz Single Band

  Maximum Speed: Up to 300Mbps (802.11n)

  Antennas: 2 × 5dBi External High-Gain Antennas

  MIMO: 2T2R

  Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

  Multi-SSID: Up to 4 SSIDs

  Max Clients: 32 Concurrent Users

  VoIP Protocols: SIP (RFC 3261) / H.248

  Voice Codecs: G.711 a/μ-law, G.729, G.723.1, G.726

  Fax Support: T.38 FoIP / T.30 G.711 Pass-through

  Management: OMCI (GPON), OAM (EPON), TR-069 (Optional), Web GUI, Telnet, SSH

  Power Consumption: < 6W

  Operating Temperature: -5°C to 50°C

  Dimensions: 170mm × 120mm × 32mm (L×W×H)

  Net Weight: ~0.25Kg

  Call to Action:

  Building an entry-level FTTH triple-play offering? The 1GE+3FE+1Voice Single Band WiFi XPON ONU delivers essential features without unnecessary cost. [Contact our sales team] for aggressive volume pricing, sample evaluation units, and full technical documentation.



•

•

•


Hardware Specification

• Software Specification




  Parameter Name	Software Parameter
  	EPON/GPON
  LAN	Support Port rate limiting Support Loop detection
  VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode
  Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
  QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
  L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server
  DHCP	Support DHCP Server
  VOIP	Support SIP protocol， Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent， Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length， Support high/low speed fax/Modem, bypass fax, and T38 fax， Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing ， Support Line testing according to GR-909.
  Wireless	Support 802.11b/g/n/ac and Mixed mode, Support 2 SSID , Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES,TKIP encryption.
  USB	DLNA DMS File/Printer Sharing USB backup/Restore confguration  3G dongle
  Performance	Data loss: <1*10E-12. Call loss: <0.01%.
  Security	Support Firewall Support Mac filter Support ACL Support URL filter
  Management	Support OMCI(ITU-T G.984.x).
  	Support WEB. Support TR069. Support TELNET. Support CLI.




•

•

•

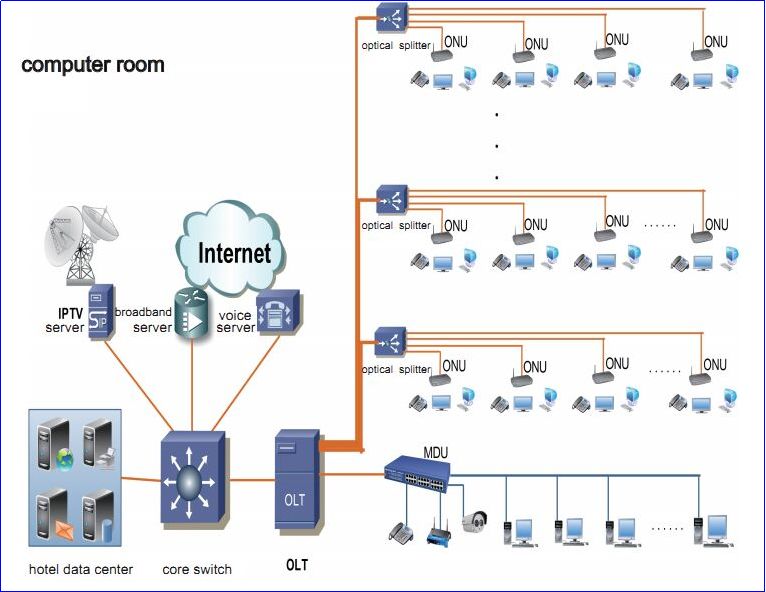

Applicant

•


  Model	Description
  1GE+3FE+1PORTS+ WIFI XPON ONU 2 Antennas single band	1 GPON/EPON ports,1*1000M+ 3*100M LAN ports, 1 voice ports WIFI ONU




  FAQ:
  Q: What is the difference between single-band and dual-band WiFi on this XPON ONU?

  A: The single-band WiFi XPON ONU operates exclusively on the 2.4GHz frequency band, delivering speeds up to 300Mbps. This is sufficient for everyday internet activities like web browsing, email, social media, and standard-definition video streaming. Dual-band models add a 5GHz band that offers faster speeds (up to 867Mbps) and less interference—ideal for HD streaming and online gaming. For cost-sensitive deployments where basic WiFi coverage is the priority, this single-band XPON ONU provides the best value .

  Q: Does the 2.4GHz single-band WiFi provide sufficient coverage for a typical home?

  A: Yes. With 2×5dBi external high-gain antennas and 2T2R MIMO technology, this WiFi XPON ONU delivers reliable coverage for apartments and homes up to approximately 80-100 square meters. The 2.4GHz band also offers better wall penetration than 5GHz, making it effective for multi-room coverage in standard residential layouts .

  Q: Can the FXS voice port function when the ONU is configured in Bridge Mode?

  A: Absolutely. Even when the data channel is set to Bridge Mode (where the subscriber's own router handles PPPoE authentication), the FXS voice port operates independently and registers directly with the VoIP softswitch. Voice and data services are logically isolated within the XPON ONU, ensuring both function reliably without mutual interference .

  Q: Is this 1GE+3FE+1Voice XPON ONU compatible with my existing OLT infrastructure?

  A: Yes. This XPON ONU is tested and verified for interoperability with OLTs from Huawei (MA5600 series), ZTE (C300/C320 series), Nokia (7360 ISAM series), FiberHome (AN5500 series), and other vendors using standard OMCI (GPON) and OAM (EPON) protocols. The dual-mode capability ensures it works seamlessly whether your network is GPON or EPON-based .

  Q: Does this single-band ONU support IPTV over WiFi?

  A: Yes. The XPON ONU supports VLAN-to-SSID binding, allowing a dedicated SSID to be mapped to the IPTV VLAN. This enables wireless IPTV set-top boxes to receive video streams without competing with general internet traffic. Note that for multiple simultaneous HD IPTV streams over WiFi, the available 2.4GHz bandwidth should be considered in network planning .

  Q: What VoIP protocols are supported, and is fax transmission reliable?

  A: The built-in FXS port supports both SIP and H.248 protocols, covering virtually all carrier softswitch platforms. For fax transmission, it supports T.38 FoIP (Fax over IP) as well as T.30 G.711 pass-through, ensuring reliable operation with standard fax machines, POS terminals, and legacy analog devices .




•

•

•
