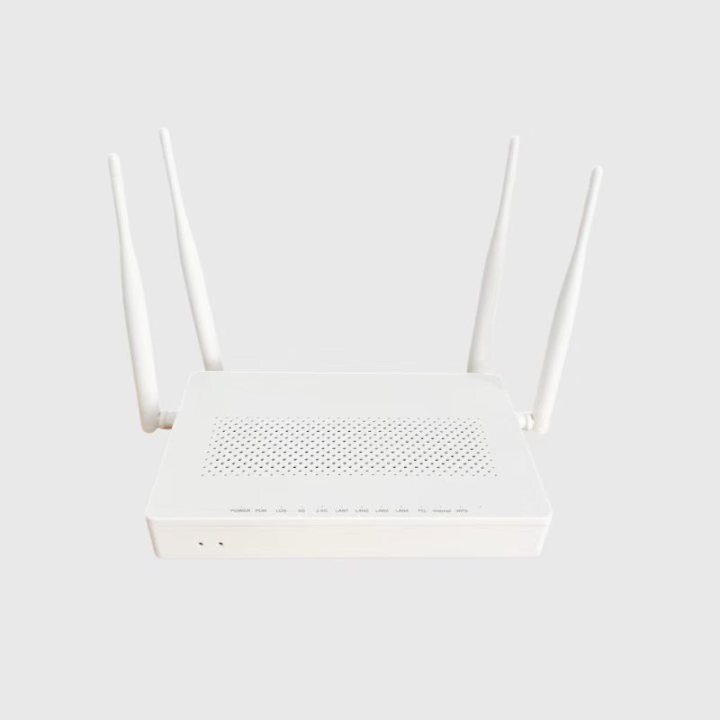

1GE+3FE+1Voice WiFi XPON ONU | Dual Band 4-Antenna ONT | GPON/EPON Triple-Play Terminal

Product Overview

The Flypon 1GE+3FE+1Voice Dual Band WiFi XPON ONU is a high-performance Optical Network Unit engineered for carriers and ISPs delivering premium FTTH triple-play packages. Supporting GPON and EPON dual-mode auto-detection, this XPON ONU integrates 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 1 FXS voice port, and a powerful dual-band WiFi module with 4 external high-gain antennas. It provides simultaneous high-speed internet access, IPTV streaming, carrier-grade VoIP telephony, and whole-home wireless coverage—all from a single compact device. Ideal for residential and SOHO deployments requiring both wired reliability and wireless convenience .

Key Features:

· XPON Dual Mode with Universal OLT Compatibility: Built with a dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. One XPON ONU model covers both network architectures, simplifying inventory and reducing SKU complexity. Fully interoperable with mainstream OLTs from Huawei, ZTE, Nokia, and FiberHome .

· Dual-Band WiFi with 4 High-Gain Antennas: Equipped with 4 external 5dBi antennas and concurrent 2.4GHz + 5GHz dual-band WiFi, this WiFi XPON ONU delivers combined wireless speeds of up to 1200Mbps (300Mbps @ 2.4GHz + 867Mbps @ 5GHz). Supports 4T4R MIMO, beamforming, and multiple SSID broadcasting for superior coverage, reduced interference, and seamless roaming throughout the home or office .

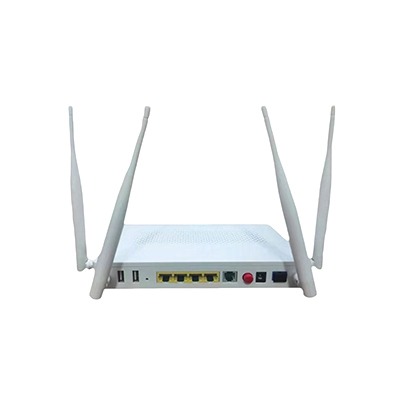

· Complete Triple-Play Service Support: The 1GE+3FE+1Voice XPON ONU provides 1×10/100/1000Mbps GE port for high-bandwidth devices (gaming PC, NAS), 3×10/100Mbps FE ports for IPTV set-top boxes or secondary wired connections, and 1×FXS RJ11 voice port for analog telephone service. VLAN tagging per port ensures service isolation and QoS prioritization .

· Carrier-Grade VoIP Functionality: The integrated FXS port supports SIP and H.248/MEGACO protocols, ensuring broad compatibility with major softswitch platforms (BroadSoft, Huawei IMS, ZTE IMS). Voice features include G.711/G.729 codecs, T.38/T.30 fax over IP, caller ID, call waiting, three-way conferencing, and GR-909 line testing for remote diagnostics .

· Comprehensive Remote Management: Supports standard OMCI (ONT Management and Control Interface) for GPON mode and OAM for EPON mode, enabling remote provisioning, firmware upgrades, performance monitoring, and fault isolation. Optional TR-069 support for seamless ACS integration and zero-touch deployment .

• Technical Specification




  1.Power adapter input：12V DC，1.5A.
  2.System power supply:  See the nameplate on the device.
  3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：
  10% ~ 4.95%(non-condensing).
  5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).

Hardware Specification

· Model: 1GE+3FE+1Voice Dual Band WiFi XPON ONU – All-in-One Fiber Terminal for Premium Triple-Play Services

· Optical Interface: SC/APC or SC/UPC (Single Fiber)

· XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

· Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

· Wavelength: TX 1310nm, RX 1490nm

· Optical Budget: Class B+ (28dB typical), Max Distance 20KM

· User Interfaces:

  · 1 × 10/100/1000M RJ45 (GE)

  · 3 × 10/100M RJ45 (FE)

  · 1 × FXS RJ11 (Voice)

· Wireless Specifications:

  · Standards: IEEE 802.11a/b/g/n/ac

  · Dual Band Concurrent: 2.4GHz + 5GHz

  · Combined Speed: Up to 1200Mbps (300Mbps + 867Mbps)

  · Antennas: 4 × 5dBi External High-Gain Antennas

  · MIMO: 4T4R with Beamforming

  · Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

  · Multi-SSID: Up to 4 SSIDs per band

· VoIP Protocols: SIP (RFC 3261) / H.248

· Voice Codecs: G.711 a/μ-law, G.729, G.723.1, G.726

· Fax Support: T.38 FoIP / T.30 G.711 Pass-through

· Management: OMCI, OAM, TR-069 (Optional), Web UI, Telnet

· Power Consumption: < 10W

· Operating Temperature: -5°C to 50°C

· Dimensions: 205mm × 140mm × 37mm (L×W×H)

· Net Weight: ~0.34Kg

• Software Specification




  Parameter Name	Software Parameter
  	EPON/GPON
  LAN	Support Port rate limiting Support Loop detection
  VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode
  Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
  QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
  L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server
  DHCP	Support DHCP Server
  VOIP	Support SIP protocol， Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent， Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length， Support high/low speed fax/Modem, bypass fax, and T38 fax， Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing ， Support Line testing according to GR-909.
  Wireless	Support 802.11b/g/n/ac and Mixed mode, Support 2 SSID , Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES,TKIP encryption.
  USB	DLNA DMS File/Printer Sharing USB backup/Restore confguration  3G dongle
  Performance	Data loss: <1*10E-12. Call loss: <0.01%.
  Security	Support Firewall Support Mac filter Support ACL Support URL filter
  Management	Support OMCI(ITU-T G.984.x).
  	Support WEB. Support TR069. Support TELNET. Support CLI.




Applicant

Ready to upgrade your FTTH offerings with a premium 1GE+3FE+1Voice Dual Band WiFi XPON ONU? [Contact our sales team] for competitive wholesale pricing, sample evaluation units, and full interoperability documentation.

•


  Model	Description
  4GE+1 PORTS+4 Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,4 *1000M LAN ports, 1 voice ports WIFI ONU
  1GE+3FE+1PORTS+4Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,1*1000M+ 3*100M LAN ports, 1 voice ports WIFI ONU




  FAQ

  Q: What WiFi speeds can I expect from this 1GE+3FE+1Voice XPON ONU?

  A: This dual-band WiFi XPON ONU supports concurrent 2.4GHz and 5GHz operation with combined throughput up to 1200Mbps (300Mbps on 2.4GHz 802.11n + 867Mbps on 5GHz 802.11ac). The 4 external 5dBi antennas with 4T4R MIMO and beamforming technology provide enhanced signal strength, wider coverage, and better performance through walls compared to 2-antenna designs .

  Q: Does this XPON ONU support separate WiFi networks for different services?

  A: Yes. The device supports multiple SSIDs (up to 4 per frequency band). ISPs can configure separate WiFi networks—for example, one private SSID for home data, one for guest access, and one dedicated to IPTV wireless distribution—each with independent security and VLAN binding settings .

  Q: Can the FXS voice port work while the ONU is in Bridge Mode?

  A: Absolutely. Even when the data channel is configured in Bridge Mode (letting the downstream router handle PPPoE), the FXS voice port operates independently and can register directly with the VoIP softswitch. Voice and data services are logically isolated within the XPON ONU, ensuring both function reliably without interference .

  Q: Is this device compatible with my existing OLT and VoIP platform?

  A: This XPON ONU is designed for broad interoperability. It works with GPON/EPON OLTs from Huawei, ZTE, Nokia, FiberHome and others using standard OMCI/OAM protocols. For VoIP, it supports both SIP and H.248 protocols and is compatible with BroadSoft, Metaswitch, and major IMS platforms. Configuration guides are available upon request.

  Q: How do the four antennas improve performance compared to two-antenna models?

  A: The 4×5dBi external antenna configuration with 4T4R MIMO provides:

  · Stronger signal gain: Each 5dBi antenna amplifies transmission power for extended range.

  · Better spatial diversity: Multiple antennas reduce dead spots and improve signal stability.

  · Higher throughput: 4T4R enables more simultaneous data streams (up to 4 spatial streams on 5GHz), maximizing the 867Mbps 802.11ac capability .
