1GE+3FE+CATV GPON ONU | Triplexer Optical Network Terminal | ITU-T G.984 Data + CATV HGU

Product Overview

The Flypon 1GE+3FE+CATV GPON ONU is a high-performance triplexer Optical Network Terminal designed for operators delivering converged broadband data and cable television (CATV) services over a single optical fiber. Fully compliant with the ITU-T G.984 GPON standard, this GPON ONU provides robust 2.488 Gbps downstream and 1.244 Gbps upstream data transmission alongside high-quality RF video overlay via the 1550nm CATV wavelength. Equipped with 1 Gigabit Ethernet port, 3 Fast Ethernet ports, and an RF coaxial output, it offers a complete triple-play access solution for FTTH, FTTB, and multi-tenant environments—eliminating the need for separate data modems and RF signal splitters .

Key Features :

· Triplexer WDM Technology – Data + CATV Over Single Fiber: Built with an integrated WDM (Wavelength Division Multiplexing) device, this GPON ONU simultaneously handles 1310nm upstream data, 1490nm downstream data, and 1550nm CATV broadcast signals over a single optical fiber. This triplexer design dramatically simplifies ODN cabling and reduces deployment costs for operators offering combined internet and cable TV packages .

· Full GPON Compliance (ITU-T G.984): Engineered with a dedicated GPON MAC chipset, this 1GE+3FE+CATV GPON ONU ensures seamless interoperability with leading OLT vendors including Huawei, ZTE, Nokia, FiberHome, and Calix. Supports advanced GPON features including FEC (Forward Error Correction), 128-bit AES encryption, and Dynamic Bandwidth Allocation (DBA) for efficient network utilization .

· Flexible Multi-Port Wired Connectivity: Provides 1×10/100/1000Mbps auto-negotiation RJ45 GE port for gigabit-capable routers or high-performance devices, plus 3×10/100Mbps RJ45 FE ports for IPTV set-top boxes, desktop PCs, or network peripherals. This 4-port configuration eliminates the need for external switches in multi-device environments .

· Carrier-Grade CATV Receiver with AGC: The integrated CATV RF module operates at 1550nm with Automatic Gain Control (AGC) functionality, maintaining stable RF output levels across a wide optical input range (typically +2dBm to -18dBm). Features include remote CATV port power-down capability via OMCI management, high optical return loss (≥45dB), and MER ≥32dB for superior video quality. RF output covers 47-1000MHz, supporting analog and digital TV channels simultaneously .

· Comprehensive OMCI Management & Security: Supports standard OMCI (ONT Management and Control Interface per ITU-T G.988) for remote configuration, performance monitoring, fault isolation, and firmware upgrades. Advanced features including port-based VLAN (802.1Q), QoS prioritization (802.1p), IGMP snooping, and broadcast storm suppression ensure optimal service delivery .

• Product Feature




  1GE+3FE+CATV GPON ONU – Converged Gigabit Data and CATV Fiber Terminal for Triple-Play Deployments:

  1.Built in WDM, single fiber access,provide broadband ,CATV etc services.

  2.CATV service can be managed.

  3.GPON meet the standard of ITU-T G.984 GPON standard and China Telecom GPON equipment technical requirements (V2.1).

  4.Transmission distance 20km,support data encryption.

  5.Support VLAN and multicast

  6.Different data ports are isolated from each other.

  7.Support OAM remote configuration management.

  8.Communicate well with third party OLT platform.

  9.Plug and play, with automatic discovery, automatic configuration, automatic updates and other functions.

  10.Support SNMP protocol,EMS WEB management etc.

•

•

•


Data Service Function

1.Full line speed ,non blocking switching.
2.Support port monitoring, port speed limit, port SLA and other functions.
3.support auto MDIX.

 CATV Service Function

1.Support remote turn off function for CATV services.

2.Working wavelength：1550 +/- 10nm.

3.Optical reflection loss：>45dB.

4.input optical power ：--15dBm～0dBm

5.RF bandwidth range：47MHz~1000MHz

6.RF output level：84dBuV (@-5dBm@85MHz)

7.CNR:>47dB (@-5dBm@ DS22Hz)

8.CSO: >60dBc (@-5dBm@ DS22Hz)

9.CTB: >60dBc (@-5dBm@ DS22Hz)

10.Output reflection loss： >14dB.

11.Output impedance： 75Ω.

· Optical Interface: SC/APC or SC/UPC (Single Fiber Triplexer)

· GPON Standards: ITU-T G.984.1/2/3/4, G.988 OMCI

· Data Rate: 2.488 Gbps Downstream / 1.244 Gbps Upstream

· Wavelengths: TX 1310nm (Data Up), RX 1490nm (Data Down), RX 1550nm (CATV)

· Optical Budget (Data): Class B+ (28dB typical), Max Distance 20KM

· Max Split Ratio: 1:128 (Class B+)

· User Interfaces:

  · 1 × 10/100/1000Base-T RJ45 (GE Port, Auto MDI/MDIX)

  · 3 × 10/100Base-T RJ45 (FE Ports, Auto MDI/MDIX)

  · 1 × RF Coaxial (F-Type Female, 75Ω) for CATV

· CATV Specifications:

  · Optical Wavelength: 1550±10nm

  · Optical Input Range: +2 ~ -18dBm

  · Optical Return Loss: ≥45dB

  · RF Bandwidth: 47~1000MHz

  · RF Output Level: ≥78dBuV (AGC controlled, @ -7dBm input)

  · RF Output Impedance: 75Ω

  · MER: ≥32dB (@ -14dBm input)

  · CNR: >46dB / CSO: >58dBc / CTB: >58dBc

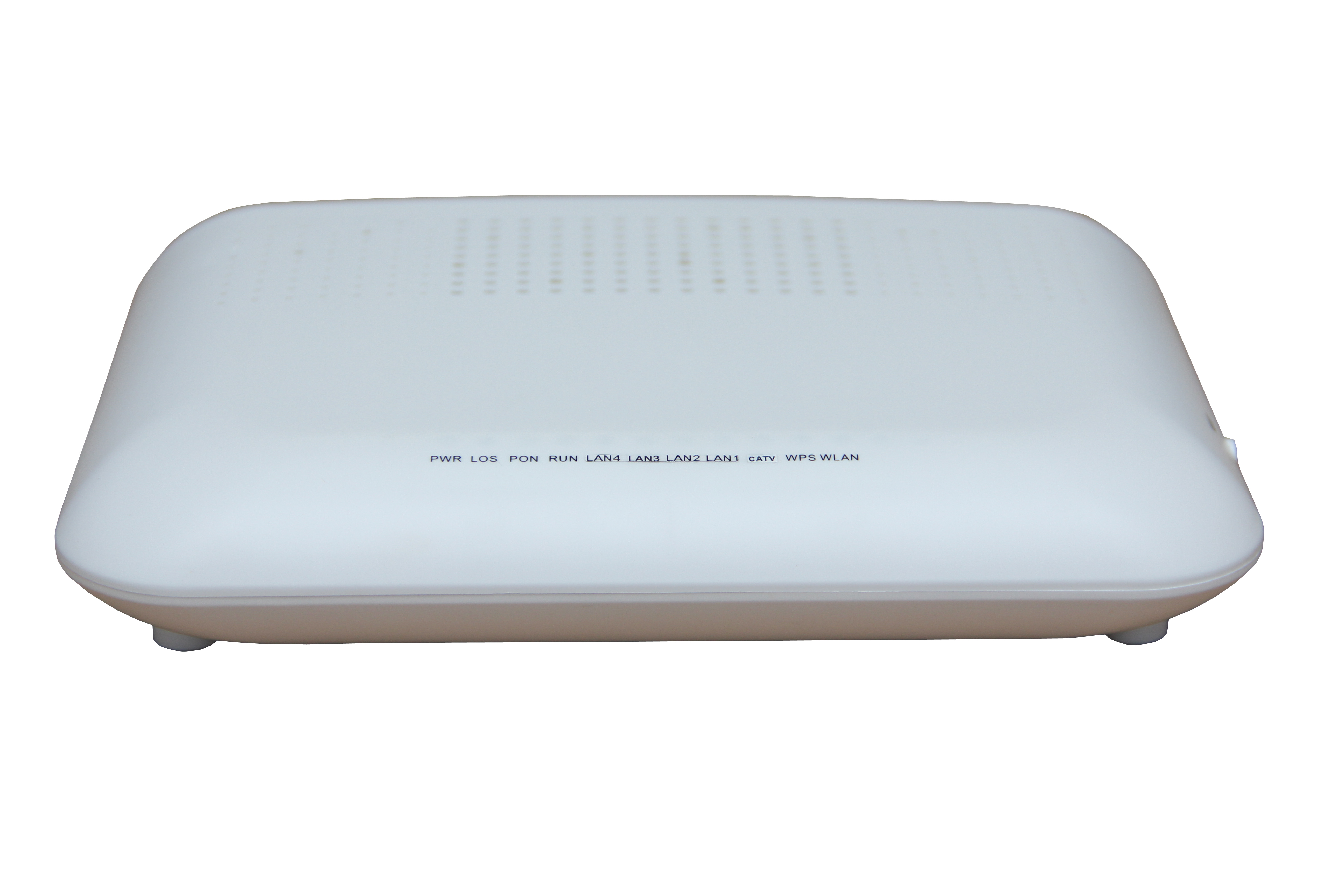

· LED Indicators: PWR, PON, LOS, LAN1~LAN4, CATV (OPT/RF)

· Management: OMCI (G.988), Web GUI, Telnet, TR-069 (Optional)

· VLAN: 802.1Q Tag/Untag, VLAN Transparent, Port-Based VLAN

· QoS: 802.1p Priority, Rate Limiting per Port

· Multicast: IGMP Snooping v1/v2/v3

· Security: 128-bit AES Encryption, MAC Filtering, Storm Control

· Power Supply: External 12V DC Adapter

· Power Consumption: < 7W (Data only), < 8W (with CATV active)

· Operating Temperature: -5°C to 50°C

· Operating Humidity: 10% to 90% RH (Non-condensing)

 WIFI Technical Parameter

Looking for a converged data and CATV 1GE+3FE+CATV GPON ONU for your next FTTH triple-play deployment? [Contact our sales team] for detailed datasheets, CATV performance reports, and competitive wholesale pricing.

•


  Model	Description
  1GE+3FE+CATV GPON ONU	ONU ,adaptor , packing box







•

•

•
