2 Port EPON OLT | Mini Dual-PON Optical Line Terminal | IEEE 802.3ah Compact OLT for SMB & Lab
Product Overview
FY-E1002P adopts advanced technology in the industry, splitting ratio up to 1:64, supports different types of ONU hybrid networking which minimizes network operator’s investment. It has powerful ethernet service and QoS guarantee, supports SLA and DBA.
The Flypon 2 Port EPON OLT is a miniaturized, cost-effective Optical Line Terminal engineered for small-scale Ethernet Passive Optical Network (EPON) Fiber-to-the-Home (FTTH) and Fiber-to-the-Office (FTTO) deployments. Fully compliant with the IEEE 802.3ah standard, this 2 port EPON OLT provides two independent EPON ports, each delivering symmetric 1.25 Gbps. With a maximum split ratio of 1:64 per port, this dual-PON EPON OLT can aggregate up to 128 ONUs from a single compact desktop or 1U unit. It is the optimal solution for small ISPs launching pilot projects, hotels upgrading in-room connectivity, campus dormitory networks, research labs conducting interoperability tests, and multi-dwelling units (MDUs) requiring a dedicated, low-cost fiber aggregation node without the complexity of larger chassis systems .
- Product Advantage
FY-E1002P series is an optical network device that meet current market demand , one OLT can support 4 EPON system, it has below advantages:
1. EPON FY-E1002P series complies with IEEE802.3ah and YD/T 1475-2006 standard etc.
2. System capacity:Modular PON card configuration can support 2 EPON systems and 128 ONUs at the same time,support splitting ratio 1:64.
3. Uplink port: support many different types of metropolitan area network interface combination, according to network situation , select optical port or electrical port.
4. Device size: 1U, occupies little space in the computer room, less power consumption, reduces business operating cost.
5. Fiber optical trunk line protection: support automatic link protection switching in case of fiber optical failure.
6. High reliability guarantee,support dual power supply.
Product Feature
1.Using point to multi point network topology, effectively collect dispersed user ethernet business then converged in the metropolitan area network node. Use GE port to connect upper device, achieve smooth interconnection with existing networks .2.Dynamic bandwidth allocation(DBA) enables all users to share 1Gbps bandwidth more reasonably, achieve a reliable quality of service guarantee (QoS).
3.Rapid spanning tree protocol(RSTP) function to ensure the redundant interconnection between OLT and backbone network. EAPS fast looped network protection protocol achieves 50ms high reliability looped network support.
4.Support IGMP multicast and VLAN multicast ,can efficiently use bandwidth.
5.Support IPTV, voice and data broadcast.
6.OAM Function includes configuration, performance monitoring, fault isolation and security management,can support CLI and GUI management , easy to use.
Key Features
Full IEEE 802.3ah EPON Compliance: Built with a dedicated EPON OLT chipset, the 2 port EPON OLT ensures seamless interoperability with standard-compliant ONUs from ZTE, Huawei, FiberHome, and other third-party vendors. It supports MPCP (Multi-Point Control Protocol), FEC, and Dynamic Bandwidth Allocation (DBA) for efficient, secure, and high-performance data transmission .
Two Independent EPON Ports – 128 ONUs Capacity: Each of the two EPON ports on this mini EPON OLT supports up to a 1:64 split ratio, enabling a maximum of 128 ONUs per device. This provides ideal capacity for small communities, boutique hotels with 50-120 rooms, or a campus dormitory building without over-provisioning expensive, unused ports .
Flexible Gigabit Uplink Connectivity: Equipped with multiple Gigabit Ethernet uplink ports (copper RJ45 and optical SFP slots), the 2-port EPON OLT easily connects to your existing core router, switch, or firewall. Link aggregation (LACP) is supported to increase backhaul bandwidth and ensure uplink redundancy for uninterrupted service delivery .
Comprehensive OAM & Local Management: The EPON OLT fully supports standard OAM (IEEE 802.3ah Clause 57) and extended OAM for remote ONU auto-discovery, configuration, performance monitoring, and firmware upgrades. Additionally, a built-in Web GUI, CLI (via console, Telnet, and SSH), and optional SNMP provide intuitive local and remote management—no expensive NMS license required for day-to-day operation .
Advanced Service & Security Features: The 2-PON EPON OLT supports robust Layer 2 features including 802.1Q VLAN, QinQ, port-based VLAN, IGMP Snooping for efficient IPTV multicast delivery, and comprehensive QoS (802.1p/DSCP priority) to prioritize voice and video traffic. Advanced security features such as ACL, MAC filtering, and broadcast storm control safeguard the network from unauthorized access and malicious attacks .
Technical Parameter
Model | FY-E1002P |
System Capacity | Splitting ratio :up to 1:64, Backboard bandwidth 32G. |

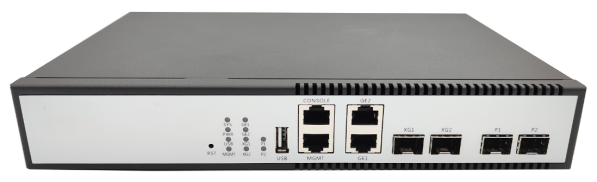

Interface | 2 EPON ports+4*10/100/1000M RJ45 ports+2 SFP slots |
PON Ports | Uplink and downlink symmetric, transmission rate : 1Gbps, PON port average optical power :+2dbm ~ +7dbm, PON port Rx Sensitivity :no less than -30dBm, Security: ONU authentication mechanism, Network coverage radius: 20km. |
Standard | IEEE802.3ah, IEEE 802.1D, Spanning Tree, IEEE 802.1Q, VLAN, IEEE 802.1w, RSTP, IEEE 802.3ad physical link static / dynamic aggregation(LACP), Ethernet – II, Ethernet-SNAP, IEEE 802.3ad VLAN Stacking( Q in Q). |
Service Quality | Back pressure flow control (half duplex), IEEE 802.3x flow control (full duplex), IEEE p802.1p, CoS, WRR, SP and FIFO queue scheduling algorithm, Support 802.1P/DSCP priority Mark/Remark, Be base on every ONU uplink and downlink rate-limiting function, support DBA and SLA function. |
VLAN | Be base on port VLAN GVRP, IEEE802.1Q VLAN relay QinQ，and support flexible QinQ. |
Multicast | IGMP v1/v2/v3, IGMP Snooping, Multicast VLAN, controlled multicast function. |
Reliability | Single direction link detection protocol,prevent survival tree loop. Expansion slot, EPON optical module hot plug. EAPS fast ring road protection function. EPON optical road protection. |
Network-Security | Limits the maximum number of users per port . Port isolation. Message storm control. ACL access control function based on data stream. PON port transmission data encryption |
Configuration Management | CLI, Web, SNMP, TELNET, cluster and other management methods. RMON v1, 1,2,3,9 group SSHv1/v2, Software upgrades and bootrom upgrades can be made by TFTP and FTP, Local or server records system logs. Chinese and English command order . Ping, traceroute and other network-testing tools to debug and output. |
Physical Characteristics | 442mm(W) x315mm(D) x 44mm(H) |
Install: 1U 19 inches | |
Weight：2Kg | |
Environmental Requirement | Working environment: -55℃～65℃；10%～85% non-condensing . |
Storage environment: -40℃～80℃；5%～95% non-condensing . | |

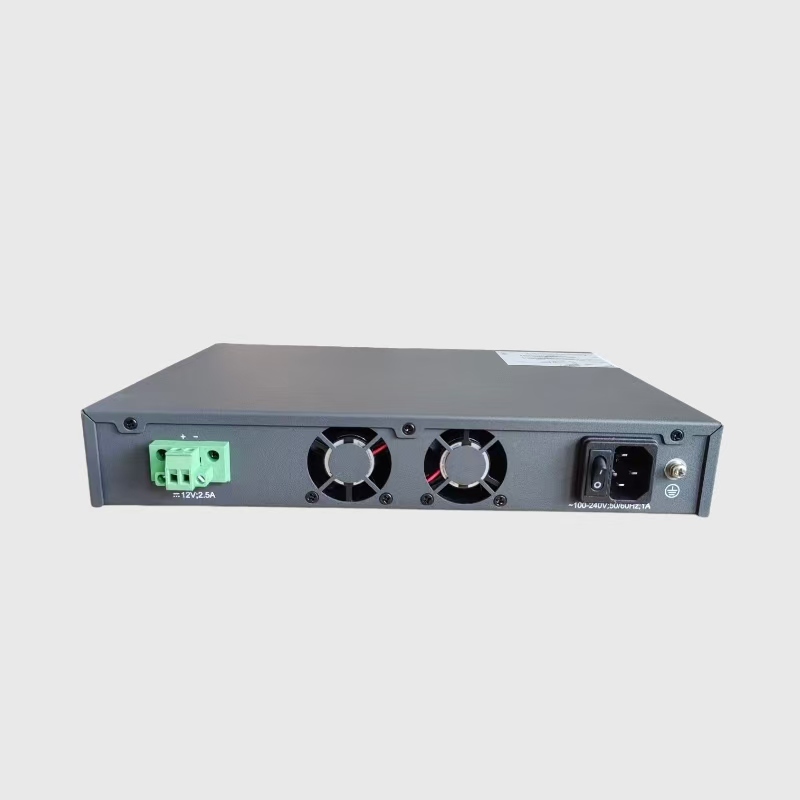

Power Supply | Input voltage: AC100～240V, input frequency 47～63Hz , Support dual power supply input . Input current : 1A/230V Power : maximum 48W |

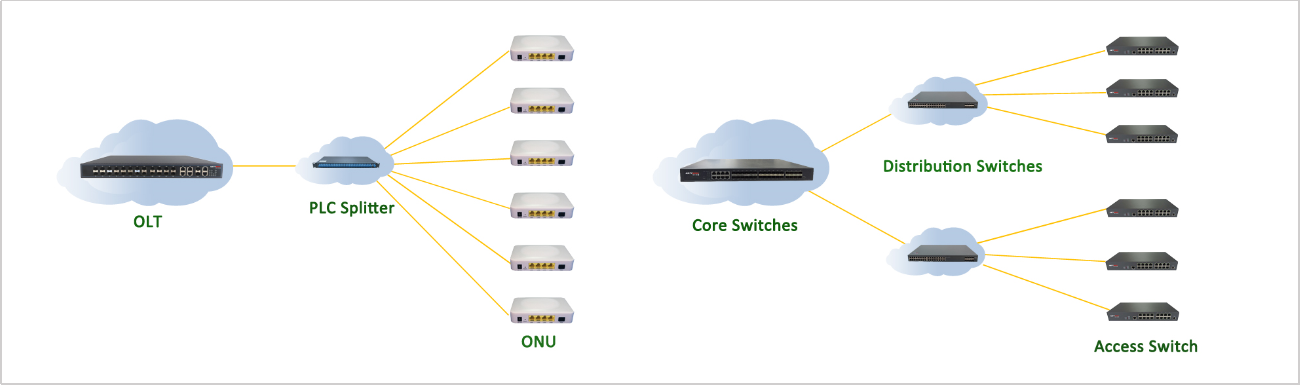

- XPON system and switch system solutions comparison
Advantages in the security industry for XPON
1.Low cost ,easy to maintain and expand as well as upgrade.
2.single line cost is low for large capacity and long distance.
3.High reliability data for security communication can be applied to high security level security defense.
4.Multi system simultaneous access.EPON access voice ,monitoring ,video intercom,access control,parking lot system simultaneously,avoid each system need a single line.
5.Complete product form ,suitable for all area of the business applications ,realize to be the service provider ultimately.
(1). EPON ONU cover forms:SFU,HGU,MDU,MXU.
(2). Cover ports :FE ,GE ,RF,XDSL,T1,E1,WIFI,USB,POE etc.Technical Specifications Snapshot:
Model: 2 port EPON OLTEPON Ports: 2 × EPON (SC/UPC or SC/APC, SFP-based)
Standards Compliance: IEEE 802.3ah, OAM, Extended OAM
EPON Speed: 1.25 Gbps Symmetric (Up/Down) per Port
Max Split Ratio: 1:64 per Port (128 ONUs Total)
Transmission Distance: Up to 20KM (PX20+)
Uplink Ports: 2 × 10/100/1000Base-T RJ45 + 2 × GE SFP (Combo or Dedicated)
Management Port: 1 × RJ45 Console, 1 × 10/100Base-T Out-of-Band Management (Optional)
Switching Capacity: Non-blocking wire-speed forwarding across all PON and uplink ports
VLAN: 802.1Q Tag/Untag, Port-Based VLAN, QinQ, up to 4096 VLANs
QoS: 802.1p/DSCP Priority, per-ONU Rate Limiting, SP/WRR Scheduling
Multicast: IGMP Snooping v1/v2/v3, IGMP Proxy
Security: ACL, MAC Filtering, DHCP Snooping, Broadcast Storm Control
Management: OAM (IEEE 802.3ah Clause 57), Extended OAM, Web GUI, CLI (Console/Telnet/SSH), SNMP v1/v2 (Optional)
Power Supply: AC 100-240V (Internal or External Adapter)
Power Consumption: < 20W (Typical)
Form Factor: Compact Desktop or 1U Rack-Mountable
Order information
Deploying a small but reliable EPON network? The 2 port EPON OLT provides the exact scale you need with carrier-grade features in a compact form factor. [Contact our sales team] for detailed datasheets, competitive pricing, and fast evaluation sample delivery.
FAQQ: How many ONUs can the 2 port EPON OLT support?
A: With a split ratio of up to 1:64 per port, this 2 port EPON OLT supports a maximum of 128 ONUs (2 ports × 64 ONUs). This scale is perfect for a small hotel, a campus dormitory wing, or an ISP proof-of-concept deployment serving a pilot neighborhood with 50-120 homes.Q: Is this OLT compatible with GPON ONUs?
A: No. This is a dedicated EPON OLT compliant with IEEE 802.3ah. EPON and GPON use different protocols, line rates, and encryption methods and are not interoperable. If your network uses GPON, please refer to our 2 Port GPON OLT product line.Q: Can I manage this OLT without buying an expensive NMS?
A: Absolutely. The 2-port EPON OLT includes a fully functional built-in Web GUI and CLI (Console/Telnet/SSH). For a network of this scale, you can perform all daily operational tasks—ONU discovery, VLAN configuration, bandwidth profile creation, and firmware upgrades—directly from these local management interfaces at no additional cost.Q: What uplink options does this device have, and can I use LACP?
A: The mini EPON OLT typically features 2 × Gigabit RJ45 copper ports and 2 × Gigabit SFP fiber slots. You can configure Link Aggregation (LACP) across multiple uplink ports to increase the total backhaul bandwidth to your core network and provide redundant failover paths.Q: Is this OLT suitable for a lab testing environment?
A: Yes, this is one of its primary use cases. The 2 port EPON OLT provides a stable, isolated EPON signal for ONU interoperability testing, DBA performance analysis, and OAM compliance verification. Its compact desktop form factor and low power consumption make it the ideal bench-top companion for R&D and QA teams.Q: Can I configure separate VLANs for internet and IPTV on this EPON OLT?
A: Yes. The built-in 802.1Q VLAN and QinQ features allow you to tag and isolate services. For example, you can assign VLAN 10 for high-speed internet and VLAN 20 for IPTV. The OLT will ensure these are forwarded correctly to the respective ONU ports, keeping services separate and secure.
