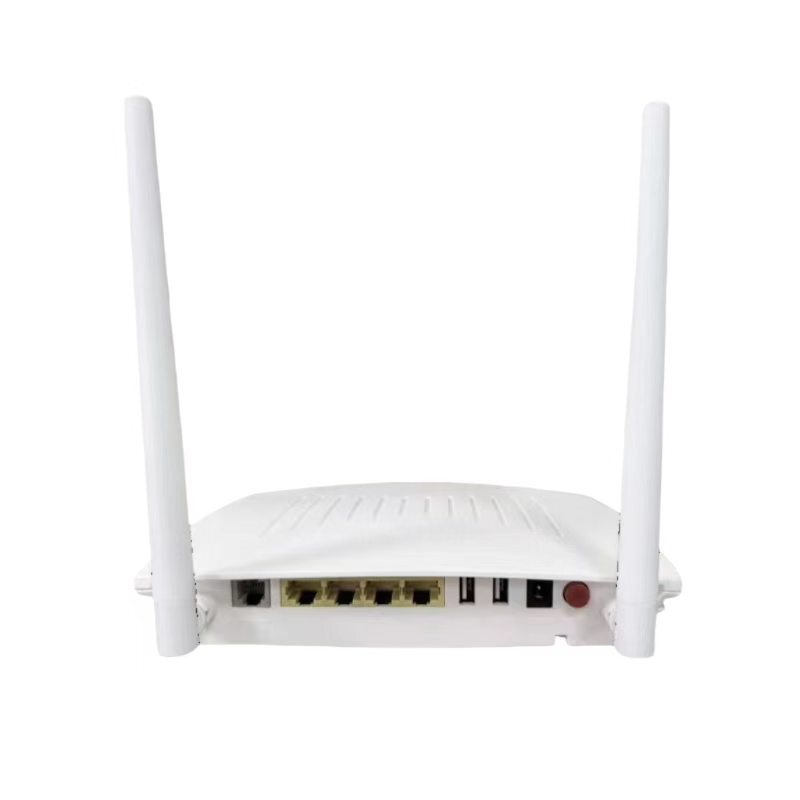

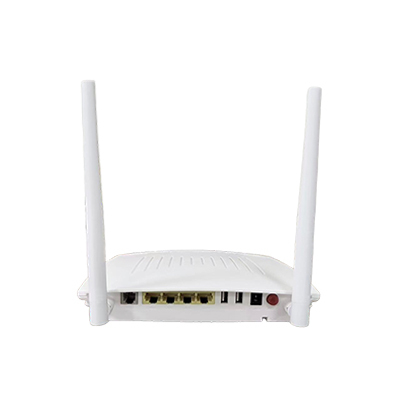

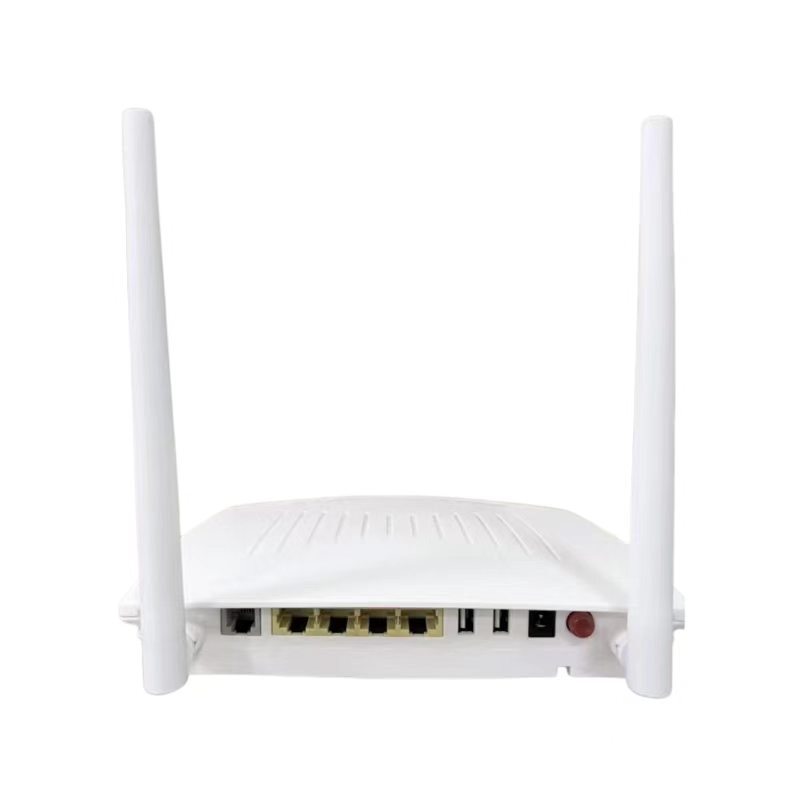

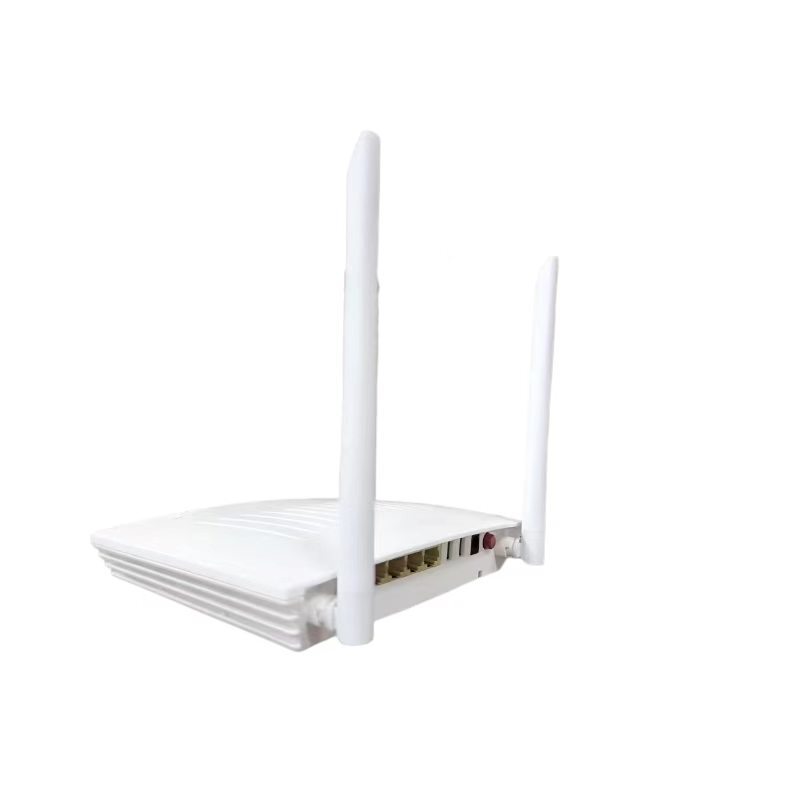

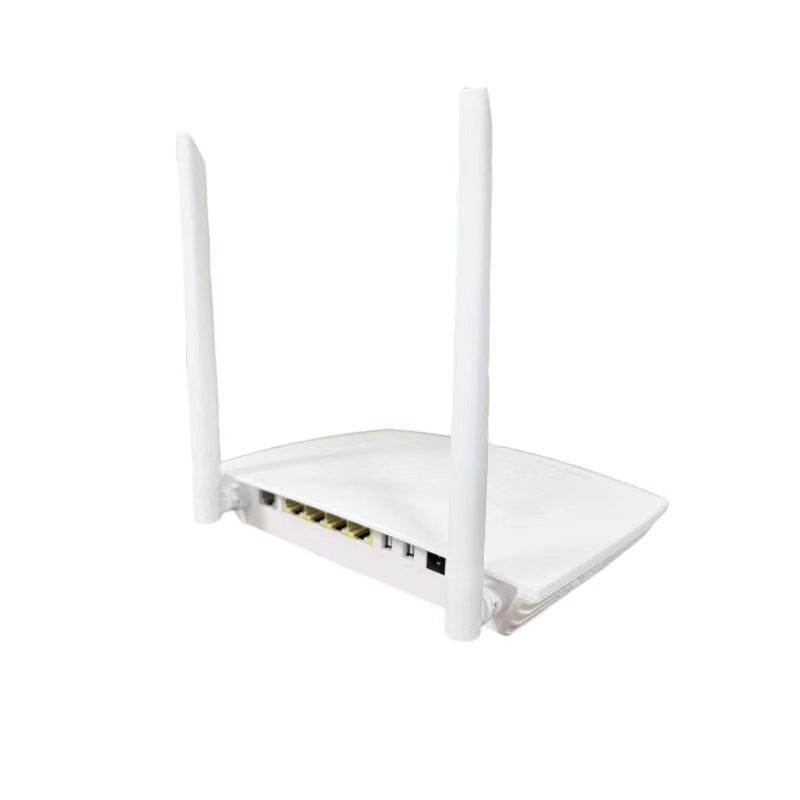

4GE+1Voice WiFi XPON ONU | 4-Port Gigabit VoIP ONT with Single Band WiFi | GPON/EPON Terminal

Product Overview

1GE+3FE+1 PORTS+2 Antennas dual band WIFI XPON ONU series is a broadband terminal device ,in order to meet the needs of telecom operator,SOHO broadband access,broadband speed increase,FTTH/FTTO,it adopts mature,stable and cost-effective gigabit EPON/GPON  technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.It meets IEEE802.3ah ，ITU-TG.984.x standard .

The Flypon 4GE+1Voice Single Band WiFi XPON ONU is a versatile, high-performance Optical Network Unit built for subscribers who need extensive wired connectivity alongside reliable wireless and voice services. Supporting both GPON and EPON with intelligent auto-detection, this XPON ONU integrates 4 Gigabit Ethernet ports, 1 FXS voice port, and a stable single-band 2.4GHz WiFi module with 2 external high-gain antennas. It delivers true gigabit wired speeds for multiple high-bandwidth devices, clear VoIP telephony, and fundamental whole-home wireless coverage—all from a single compact device. This makes it the perfect CPE for modern multi-device households, home offices, and small businesses requiring wired reliability, wireless convenience, and a dedicated phone line .

• Technical Specification




  1.Power adapter input：12V DC，1.5A.
  2.System power supply:  See the nameplate on the device.
  3.Ambient temperature：-5 ~ +55℃(V2801W 0 ~ +40℃ )Ambient humidity：
  10% ~ 4.95%(non-condensing).
  5.Store temperature：-30 ~ +60℃Store humidity：10% ~ 95%(non-condensing).










  Key Features




  XPON Dual Mode – Universal PON Compatibility: Built with an advanced dual-mode chipset, this XPON ONU automatically detects and switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah). One 4GE+1Voice WiFi XPON ONU SKU covers both network standards, dramatically simplifying inventory for operators and ensuring seamless deployment across mixed PON infrastructures .

  Four Gigabit Ethernet Ports – No Bottlenecks: Unlike models with a single GE port and Fast Ethernet companions, this 4GE XPON ONU is equipped with 4 × 10/100/1000Mbps auto-negotiation RJ45 ports. Connect a high-speed WiFi mesh system, gaming PC, NAS, and IPTV set-top box simultaneously—all at wire-speed gigabit throughput with zero LAN congestion .

  Carrier-Grade VoIP Telephony: The integrated 1 FXS port supports both SIP and H.248/MEGACO protocols, ensuring broad compatibility with softswitches from BroadSoft, Huawei IMS, ZTE IMS, and Metaswitch. Voice features include G.711/G.729 codecs, T.38 fax over IP, caller ID, call waiting, and three-way conferencing, enabling a reliable home phone service without additional equipment .

  Single-Band 2.4GHz WiFi with 2 External Antennas: The 2 external 5dBi high-gain antennas deliver stable 2.4GHz single-band WiFi with speeds up to 300Mbps (802.11n). Employing 2T2R MIMO technology, this WiFi XPON ONU provides reliable coverage for everyday activities—web browsing, social media, video streaming, and smart home devices—at an optimized cost .

  Comprehensive Remote Management & Security: Supports standard OMCI (ONT Management and Control Interface) for GPON and OAM for EPON, enabling centralized remote configuration, firmware upgrades, and fault diagnostics. Advanced security includes 128-bit AES encryption, port-based VLAN (802.1Q), and QoS prioritization (802.1p) to ensure secure and smooth triple-play service delivery .










  Technical Specifications Snapshot




  Model: 4GE+1Voice Single Band WiFi XPON ONU

  Optical Interface: SC/APC or SC/UPC (Single Fiber)

  XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

  Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

  Wavelength: TX 1310nm, RX 1490nm

  Optical Budget: Class B+ (28dB typical), Max Distance 20KM

  User Interfaces:

  4 × 10/100/1000M RJ45 (GE Ports, Auto MDI/MDIX)

  1 × FXS RJ11 (Voice Port)

  Wireless Specifications:

  Standard: IEEE 802.11b/g/n

  Frequency Band: 2.4GHz Single Band

  Max Speed: 300Mbps

  Antennas: 2 × 5dBi External High-Gain Antennas

  MIMO: 2T2R

  Security: WPA/WPA2, WPA-PSK/WPA2-PSK

  Multi-SSID: Up to 4 SSIDs

  VoIP Protocols: SIP (RFC 3261) / H.248

  Voice Codecs: G.711 a/μ-law, G.729, G.723.1

  Fax Support: T.38 FoIP / T.30 G.711 Pass-through

  Management: OMCI (GPON), OAM (EPON), Web GUI, Telnet, TR-069 (Optional)

  VLAN/QoS: 802.1Q VLAN, 802.1p Priority, Rate Limiting

  Power Consumption: < 6W

  Operating Temperature: -5°C to 50°C

Hardware Specification

Software Specification

Applicant

•


  Model	Description
  4GE+1 PORTS+4 Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,4 *1000M LAN ports, 1 voice ports WIFI ONU
  1GE+3FE+1PORTS+4Antennas dual band WIFI XPON ONU	1 GPON/EPON ports,1*1000M+ 3*100M LAN ports, 1 voice ports WIFI ONU




  Looking for a powerful multi-gigabit ONU with VoIP and wireless coverage for your triple-play packages? The 4GE+1Voice Single Band WiFi XPON ONU delivers the wired performance, voice clarity, and wireless convenience your subscribers demand. [Contact our sales team] for competitive wholesale pricing and evaluation samples.










  FAQ




  Q: Can I use all four Gigabit ports simultaneously at full speed?
  A: Yes. This 4GE XPON ONU features a non-blocking switch architecture across its four Gigabit LAN ports. You can connect a WiFi router, a gaming PC, a smart TV, and a NAS all simultaneously, and each port negotiates independently up to 1000 Mbps. The total throughput is limited by the PON uplink, but within the LAN they can exchange data at wire speed.

  Q: How does the single-band WiFi compare to dual-band models?
  A: The single-band 2.4GHz WiFi on this XPON ONU provides up to 300Mbps, which is perfectly suitable for web browsing, email, social media, and smart home devices. It also offers excellent wall penetration. Dual-band models add a 5GHz channel for higher throughput and less interference, but this single-band model is an excellent cost-effective choice for subscribers who primarily use wired connections for speed-critical tasks.

  Q: Does the voice port work if the ONU is in Bridge Mode?
  A: Absolutely. Even if the data ports are configured in Bridge Mode (with the subscriber's router handling PPPoE), the FXS voice port on this XPON ONU operates independently. It registers directly with the VoIP softswitch via SIP or H.248, ensuring your home phone service remains active regardless of the data configuration.

  Q: Is this ONU compatible with my existing OLT?
  A: This 4GE+1Voice WiFi XPON ONU is extensively tested for interoperability with OLTs from Huawei, ZTE, Nokia, FiberHome, and VSOL. Its dual-mode capability means it works on both GPON and EPON networks using standard OMCI/OAM management protocols.

  Q: Can I configure different VLANs for the voice and data ports?
  A: Yes. The built-in 802.1Q VLAN feature allows operators to tag voice traffic on a dedicated VLAN (e.g., VLAN 30) and data traffic on another (e.g., VLAN 10). This ensures strict service isolation and QoS for crystal-clear VoIP calls even when the data network is under heavy load.
