1GE+3FE+2Voice WiFi XPON ONU | Dual POTS Single Band ONT | GPON/EPON Triple-Play Terminal

Product Overview

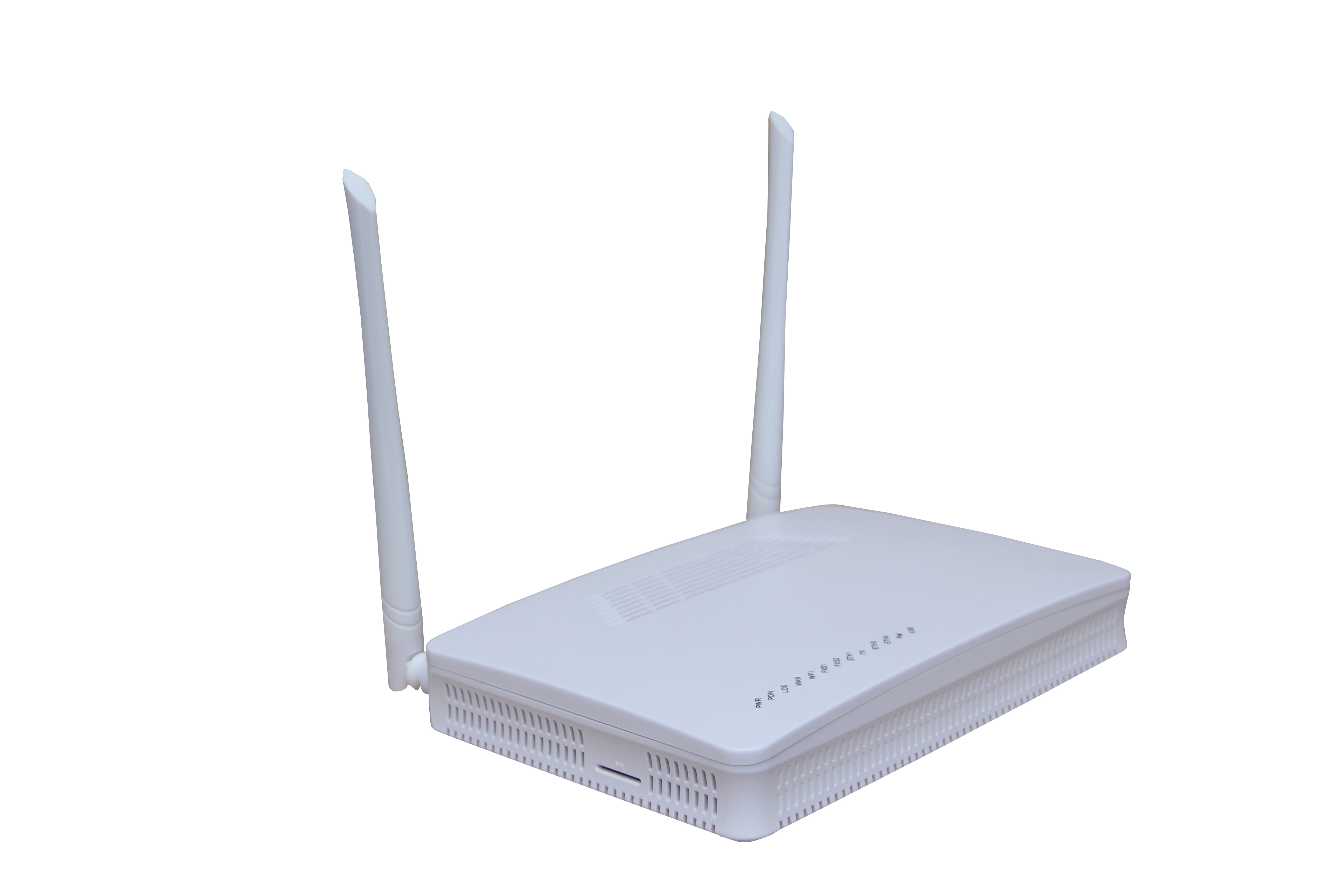

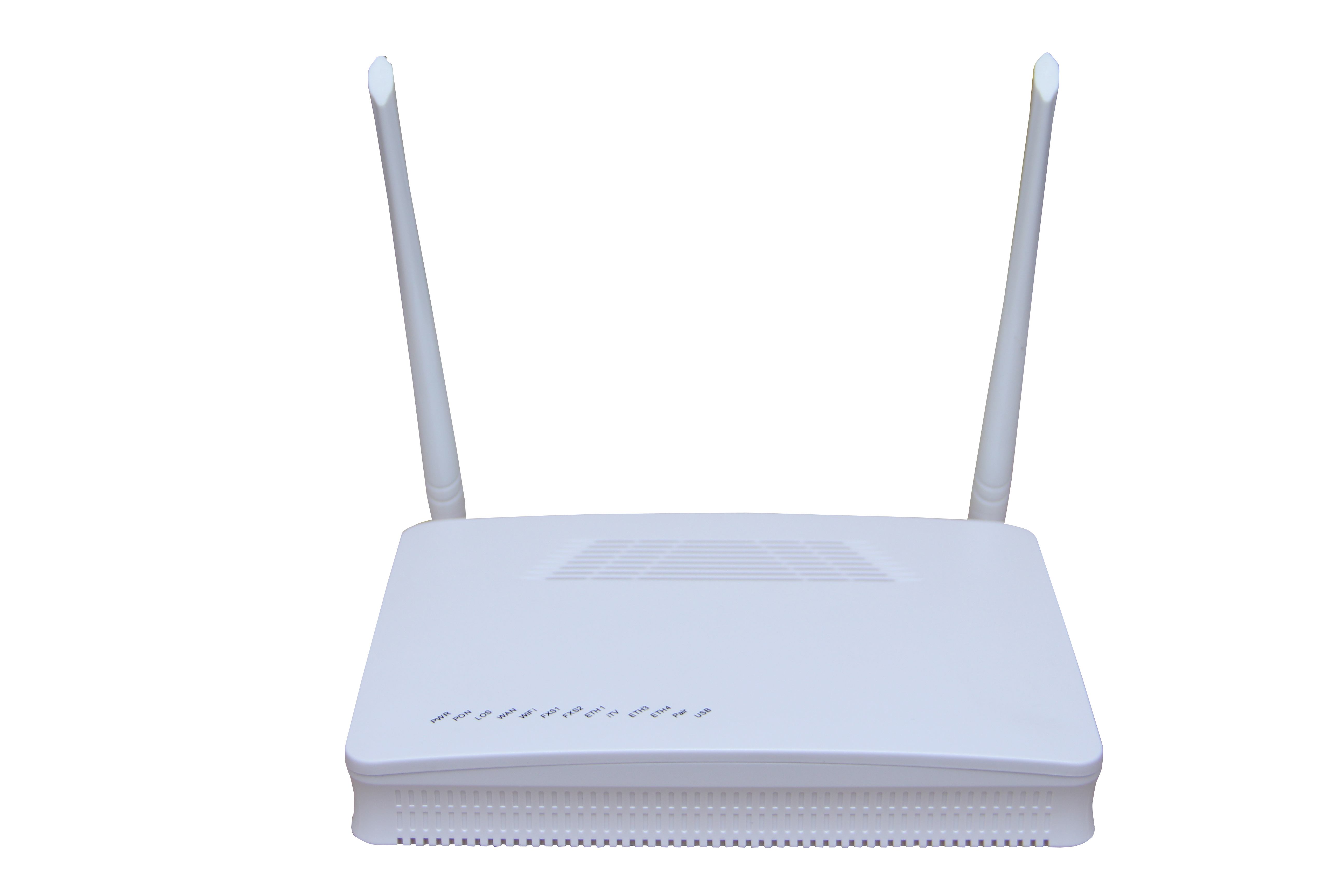

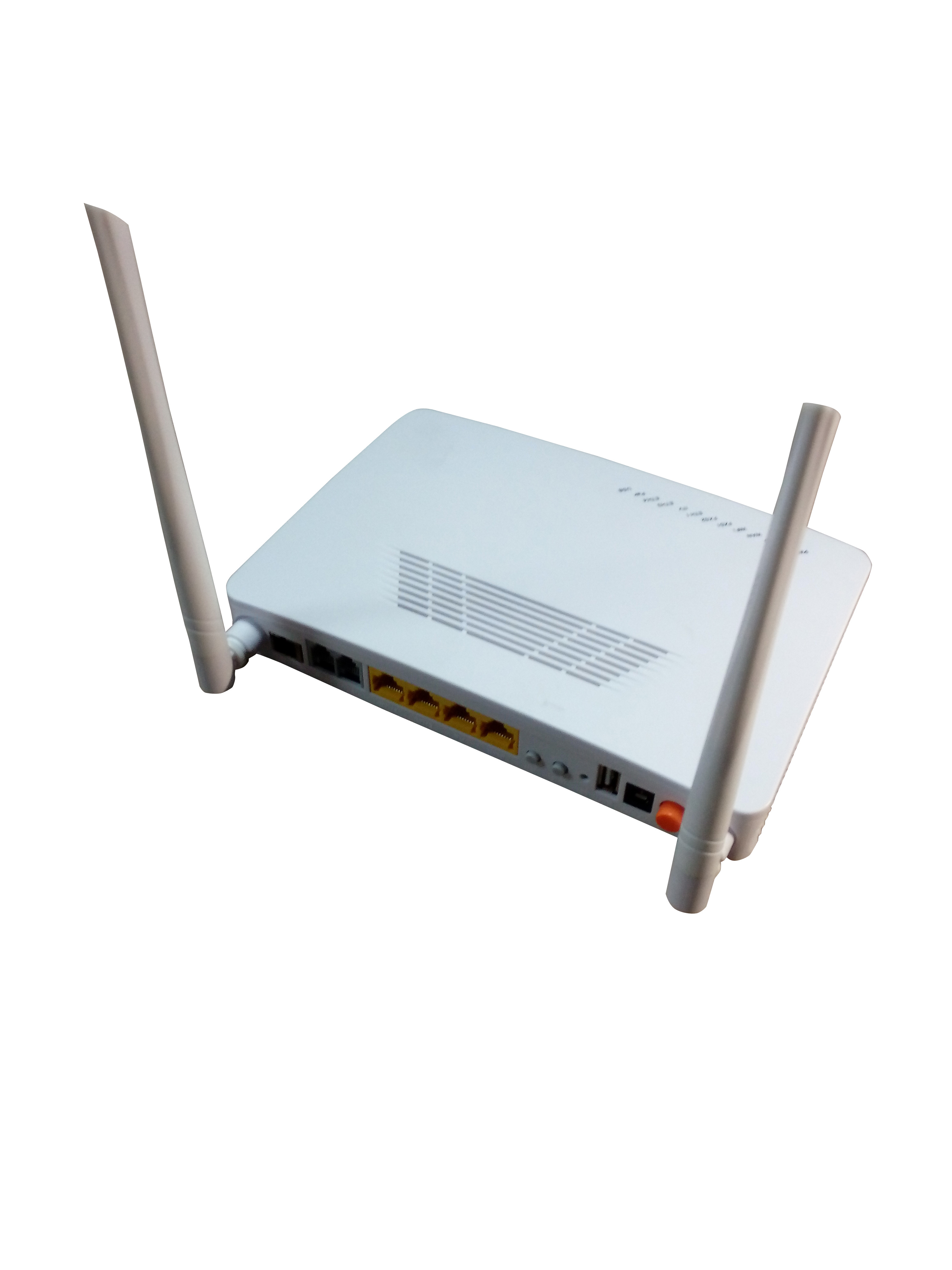

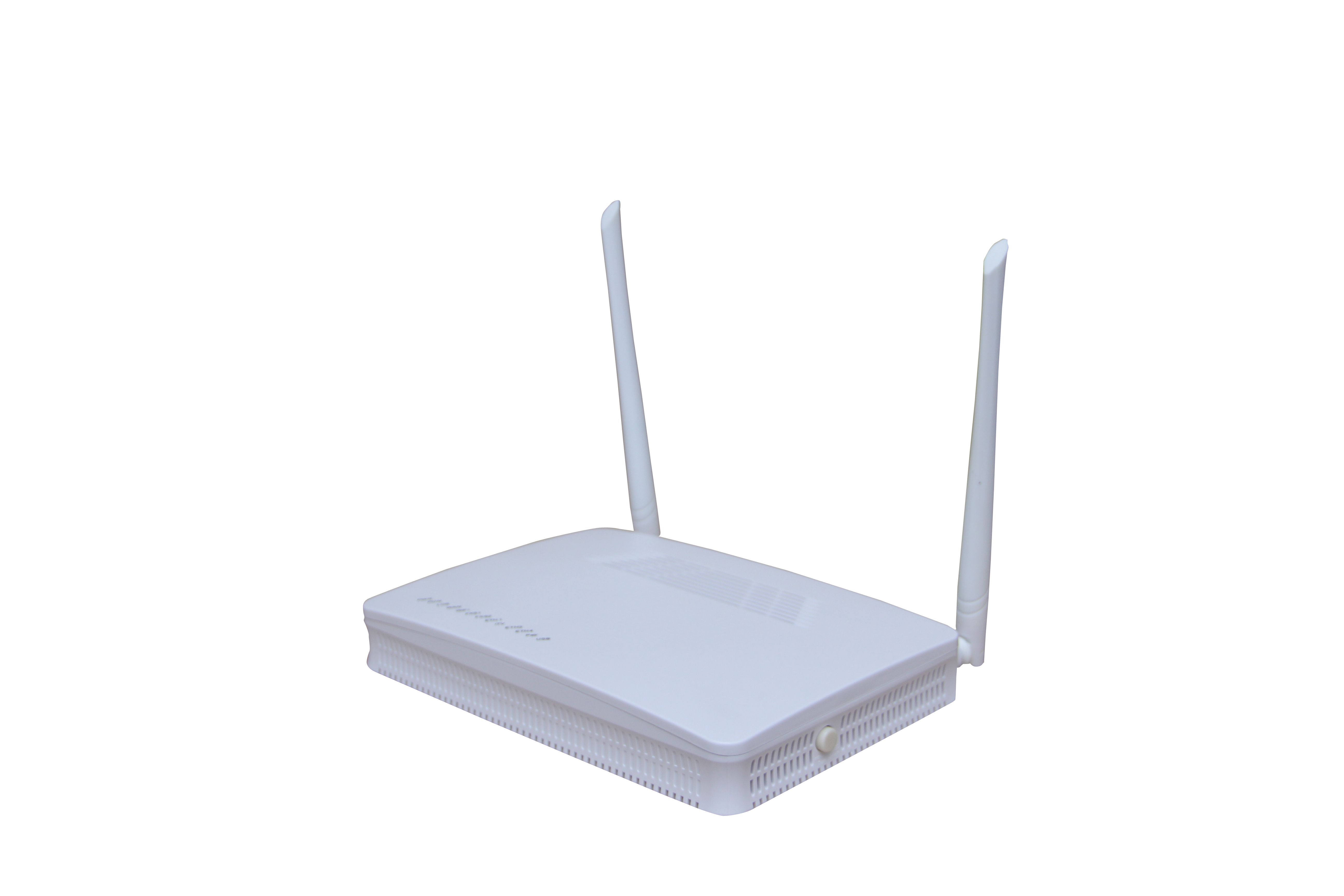

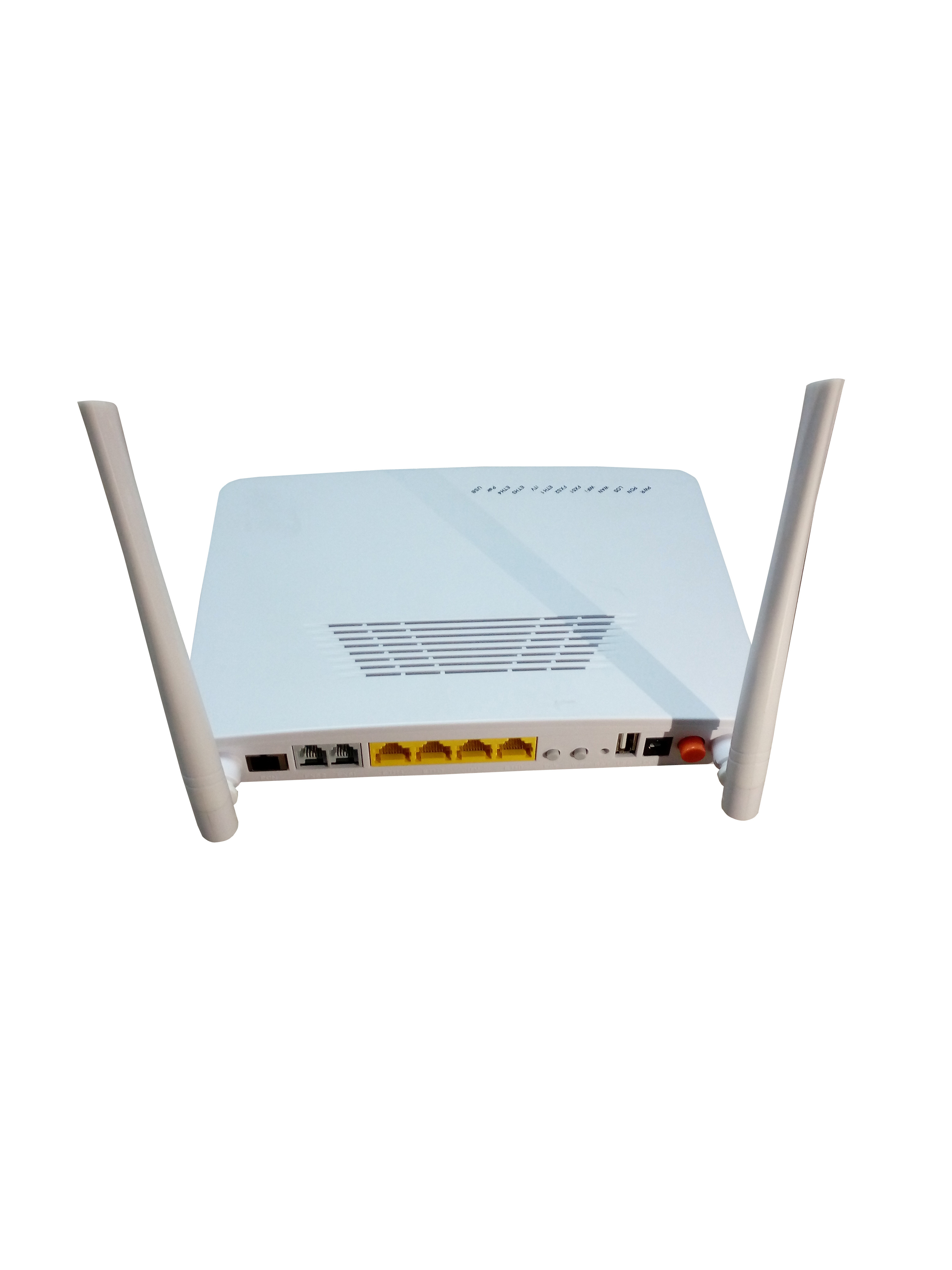

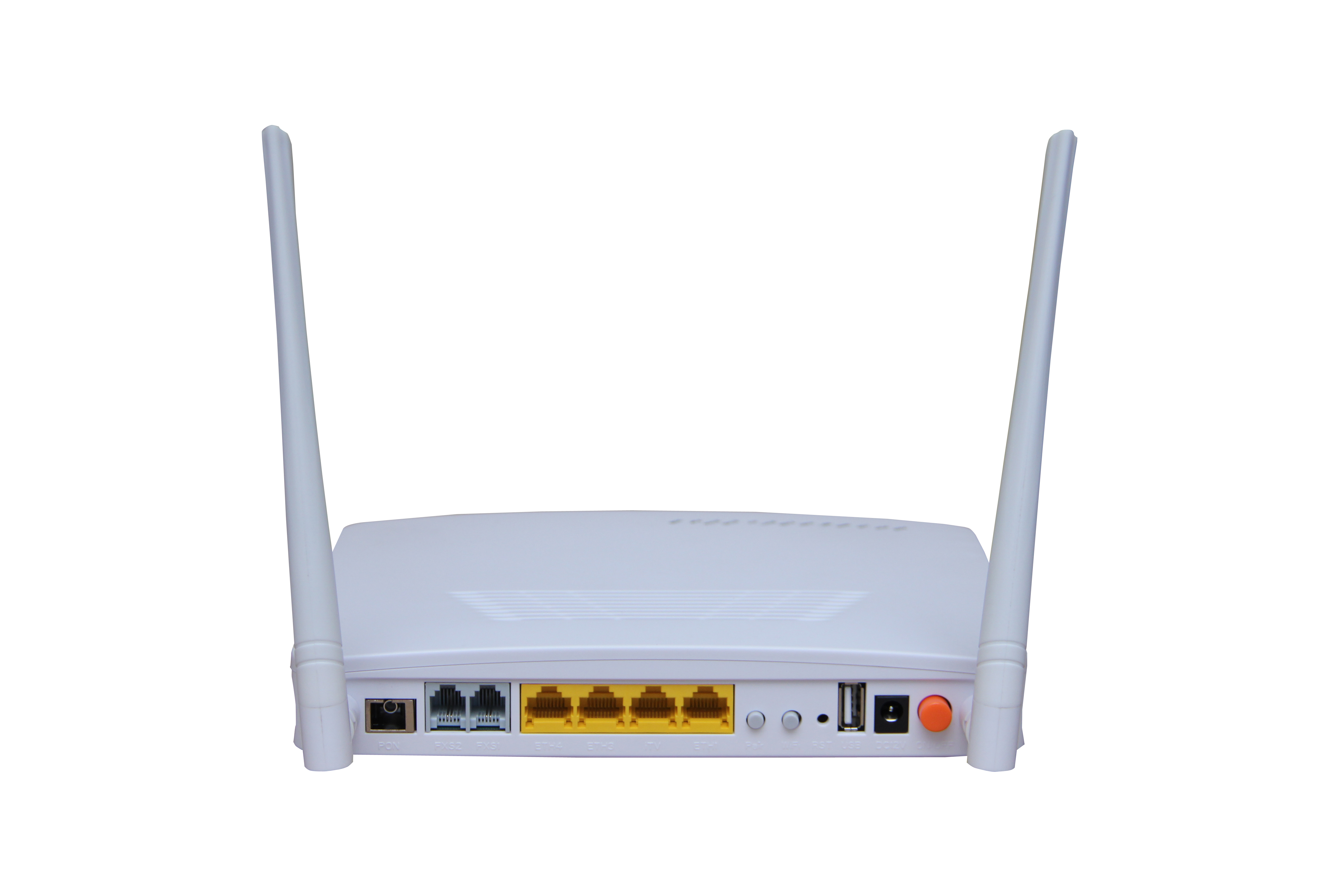

The Flypon 1GE+3FE+2Voice Single Band WiFi XPON ONU is a value-optimized Optical Network Unit designed for subscribers who require dual voice lines alongside essential data and wireless connectivity. Supporting both GPON and EPON modes with intelligent auto-detection, this XPON ONU integrates 1 Gigabit Ethernet port, 3 Fast Ethernet ports, 2 FXS voice ports, and a reliable single-band 2.4GHz WiFi module with 2 external high-gain antennas. It delivers high-speed internet, stable wired IPTV connectivity, dual-line carrier-grade VoIP telephony, and fundamental whole-home wireless coverage—all at a competitive price point that makes it the ideal CPE for budget-conscious SOHO deployments, home offices, and multi-generation households needing flexible voice services without the premium cost of dual-band WiFi .

Key Features :

· XPON Dual Mode – One Device for All PON Networks: Built with an advanced dual-mode chipset that auto-detects and seamlessly switches between GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. A single XPON ONU SKU covers both network architectures, dramatically simplifying inventory management and reducing deployment complexity for operators with mixed PON environments .

· Dual FXS Voice Ports – Two Independent Telephone Lines: Equipped with 2 FXS RJ11 ports, this XPON ONU supports two concurrent, independent telephone connections. Each port can be configured with separate SIP/H.248 credentials, different phone numbers, distinct codec preferences, and even different service providers. Ideal for home offices requiring separate business and personal lines, retail environments needing voice and fax simultaneously, or any subscriber wanting the flexibility of two independent voice circuits from a single device .

· Single-Band 2.4GHz WiFi with 2 External Antennas: Features 2 external 5dBi high-gain antennas delivering stable 2.4GHz single-band WiFi with speeds up to 300Mbps (802.11n). This WiFi XPON ONU employs 2T2R MIMO technology for improved signal quality, extended coverage, and reduced dead zones—perfect for everyday internet activities including web browsing, social media, email, and standard-definition video streaming throughout the home or office .

· Comprehensive Wired Connectivity Suite: The 1GE+3FE XPON ONU provides 1×10/100/1000Mbps GE port for gigabit-capable routers or high-performance devices, plus 3×10/100Mbps FE ports for IPTV set-top boxes, desktop PCs, network printers, or other wired peripherals. Per-port VLAN tagging (802.1Q) and advanced QoS mechanisms ensure strict service isolation and traffic prioritization between data, voice, and video services .

· Carrier-Grade VoIP Telephony: Both FXS ports support SIP and H.248/MEGACO protocols, ensuring plug-and-play interoperability with leading softswitch platforms including BroadSoft, Huawei IMS, ZTE IMS, and Metaswitch. Full-featured voice capabilities include G.711/G.729/G.723/G.726 codecs, T.38/T.30 fax over IP, caller ID, call waiting, call forwarding, call transfer, three-way conferencing, and GR-909 line testing for proactive remote fault diagnosis. Each POTS port is independently configurable for maximum deployment flexibility .

· Advanced Remote Management & Zero-Touch Provisioning: Fully supports standard OMCI (ONT Management and Control Interface) for GPON deployments and OAM for EPON networks, enabling centralized remote configuration, bulk firmware upgrades, real-time performance monitoring, and rapid fault isolation. Optional TR-069 support allows seamless ACS integration for true zero-touch deployment, minimizing operational expenditures .

• Product Feature




  ● Support 4094 VLANs

  ● Support 2K MAC address table, support MAC address limitation

  ● Support port speed limitation, storm control, isolation and loop detection

  ● Support Dying Gasp

  ● Support IGMP Snooping, support CTC controllable multicast

  ● Support 4 priority queues scheduling with SP algorithms

  ● WAN connection support route mode and bridge mode

  ● WAN connection support PPPoE, dynamic IP and static IP configuration at route mode

  ● Support OMCI, CLI and WEB configuration management

•

•

•


•


  	Support web configuration
  	Support OMCI




  · Model:1GE+3FE+2Voice Single Band WiFi XPON ONU – Cost-Effective Dual-Line Triple-Play Fiber Gateway

  · Optical Interface: SC/APC or SC/UPC (Single Fiber)

  · XPON Standards: ITU-T G.984.x GPON / IEEE 802.3ah EPON

  · Data Rate: Up to 2.488 Gbps Down / 1.244 Gbps Up (GPON) / 1.25 Gbps Symmetric (EPON)

  · Wavelength: TX 1310nm, RX 1490nm

  · Optical Budget: Class B+ (28dB typical), Max Distance 20KM

  · User Interfaces:

    · 1 × 10/100/1000M RJ45 (GE Port)

    · 3 × 10/100M RJ45 (FE Ports)

    · 2 × FXS RJ11 (Voice Ports)

  · Wireless Specifications:

    · Standards: IEEE 802.11b/g/n

    · Frequency Band: 2.4GHz Single Band

    · Maximum Speed: Up to 300Mbps (802.11n)

    · Antennas: 2 × 5dBi External High-Gain Antennas

    · MIMO: 2T2R

    · Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

    · Multi-SSID: Up to 4 SSIDs

    · Max Clients: 32 Concurrent Users

  · VoIP Protocols: SIP (RFC 3261) / H.248 / MEGACO

  · Voice Codecs: G.711 a/μ-law, G.729, G.723.1, G.726, G.722

  · Fax Support: T.38 FoIP / T.30 G.711 Pass-through

  · Supplementary Services: Caller ID, Call Waiting, Call Forwarding, Call Transfer, Three-Way Conferencing, Do Not Disturb

  · Management: OMCI (GPON), OAM (EPON), TR-069 (Optional), Web GUI, Telnet, SSH

  · Power Consumption: < 7W

  · Operating Temperature: -5°C to 50°C

  · Operating Humidity: 10% to 90% RH (Non-condensing)

  Looking for an affordable dual-voice XPON ONU that delivers essential connectivity without unnecessary cost? The 1GE+3FE+2Voice Single Band WiFi XPON ONU is the value-driven choice for ISPs targeting price-conscious SOHO and multi-line residential subscribers. [Contact our sales team] today for competitive volume pricing, sample evaluation units, and interoperability documentation.

  FAQ:

  Q: Can the two FXS ports on this XPON ONU operate independently with different phone numbers?

  A: Yes. Each FXS port on this XPON ONU operates as a fully independent SIP/H.248 endpoint. You can configure Port 1 with one phone number and Port 2 with a different number, assign different VoIP server credentials per port, use different codec profiles, and even have one port registered while the other remains idle. This provides maximum flexibility for dual-line home offices and small business applications .

  Q: Does this single-band WiFi XPON ONU provide sufficient coverage for a typical home office?

  A: Yes. With 2×5dBi external high-gain antennas and 2T2R MIMO technology, this WiFi XPON ONU delivers reliable coverage for apartments, home offices, and small business spaces up to approximately 80-100 square meters. The 2.4GHz band also offers excellent wall penetration compared to 5GHz, making it effective for multi-room coverage in standard residential and SOHO layouts. For everyday activities like web browsing, email, VoIP calls, and standard-definition video, this single-band solution provides ample performance .

  Q: Can the voice ports function independently when the ONU is in Bridge Mode?

  A: Absolutely. Even when the data channel is configured for Bridge Mode (where PPPoE authentication is handled by the subscriber's own router), both FXS voice ports operate autonomously and register directly with their respective VoIP softswitches. Voice and data services are logically isolated within the XPON ONU at both Layer 2 and Layer 3, ensuring all services function reliably without cross-interference .

  Q: Is this 1GE+3FE+2Voice XPON ONU compatible with my existing OLT infrastructure?

  A: Yes. This XPON ONU undergoes rigorous interoperability testing with OLTs from all major vendors, including Huawei (MA5600 series), ZTE (C300/C320 series), Nokia (7360 ISAM series), FiberHome (AN5500 series), Calix, ADTRAN, and VSOL. Standard OMCI (GPON) and OAM (EPON) protocols guarantee seamless discovery, configuration, and management in any standards-compliant PON environment .

  Q: What fax capabilities are supported on the dual FXS ports?

  A: Both FXS ports fully support T.38 FoIP (Fax over IP) for reliable fax transmission over IP networks, as well as T.30 G.711 pass-through for compatibility with legacy fax machines. Each port can be independently configured with its own fax settings—for example, Port 1 optimized for a dedicated fax line with T.38, while Port 2 handles voice calls with G.729 compression. This makes the 2-voice XPON ONU ideal for businesses that rely on fax for orders, prescriptions, or legal documents .

  Q: Does this device support IPTV over WiFi, and how is it isolated from other traffic?

  A: Yes. The XPON ONU supports VLAN-to-SSID binding, allowing operators to create a dedicated SSID mapped exclusively to the IPTV VLAN. This enables wireless set-top boxes to receive IPTV streams on a logically separate network path that does not compete with general internet traffic. QoS tagging (802.1p) further ensures video packets receive appropriate priority treatment for smooth playback .

  Q: How does the power consumption of this single-band model compare to dual-band versions?

  A: This single-band WiFi XPON ONU consumes less than 7W under typical operation, compared to 8-10W for dual-band equivalents. This lower power draw translates to reduced electricity costs for subscribers and a smaller carbon footprint—making it an environmentally friendlier choice for mass-market deployments .

•

•

•
