8 Port XGS-PON OLT | Symmetric 10G GPON Optical Line Terminal | ITU-T G.9807.1 Next-Gen Fiber Access
Product Overview

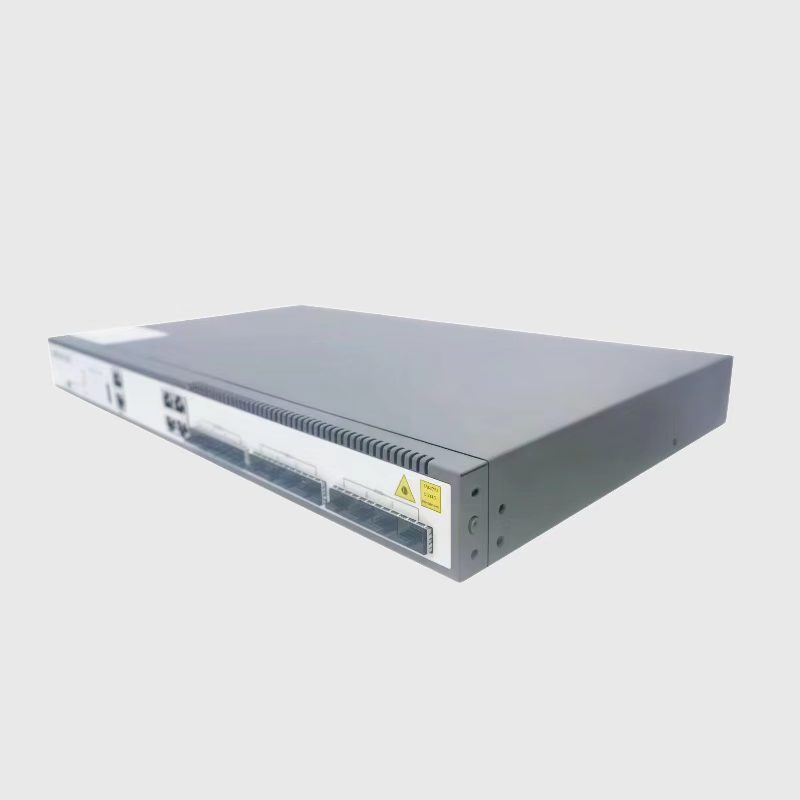

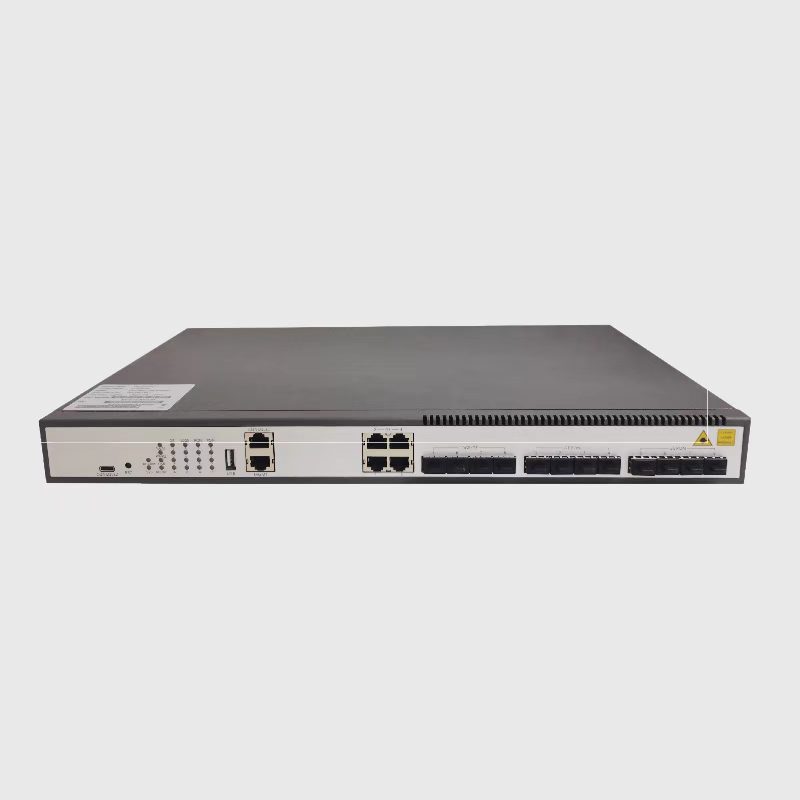

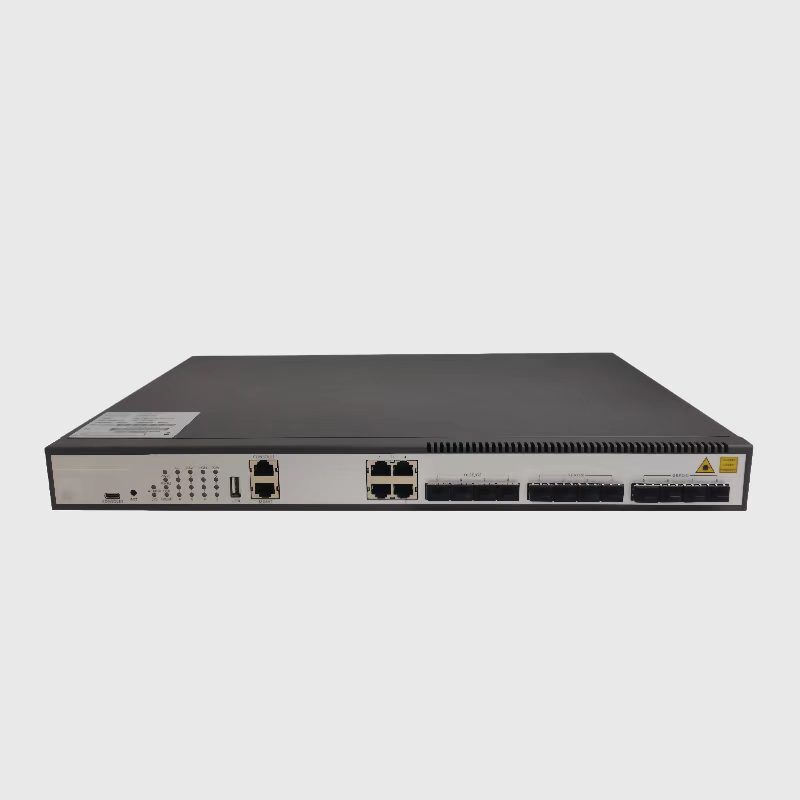

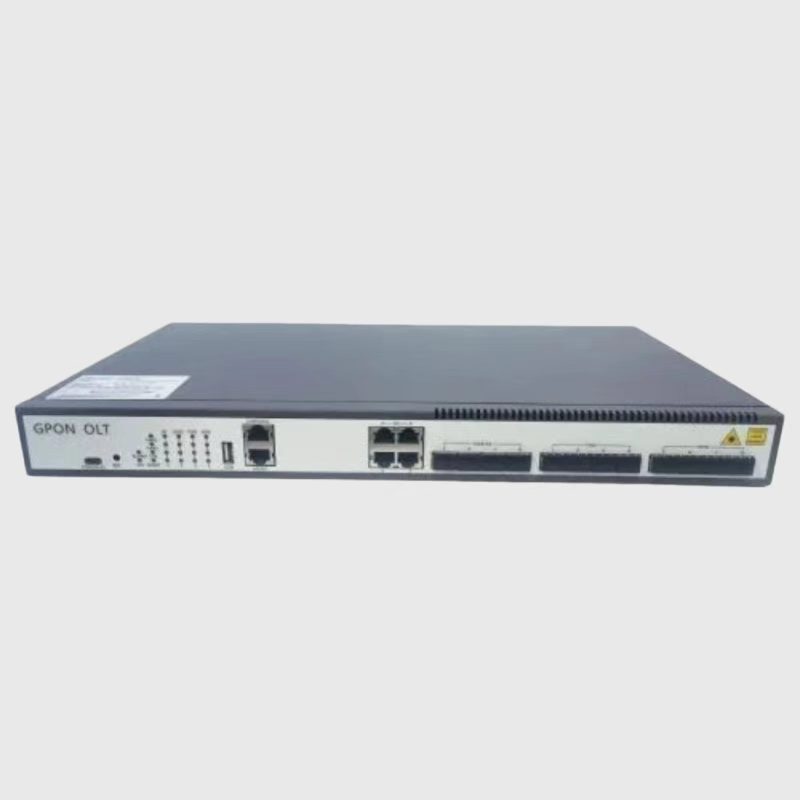

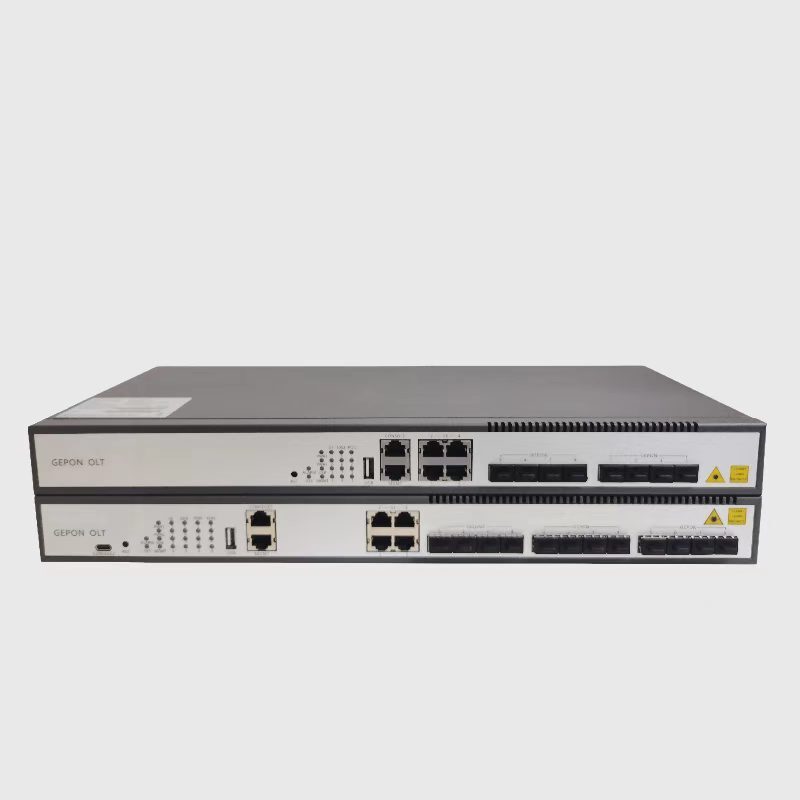

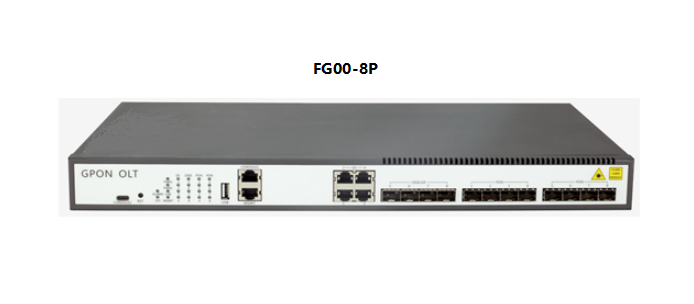

FG00-8P 8 Ports GPON OLT is highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park applications.The product follows the ITU-T G.984/G.988 technical standard，The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators' FTTH access, VPN, government and enterprise park access, campus network access, ETC.
FG00-8P 8 Ports GPON OLT is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONUs, which can save a lot of costs for operators.
The Flypon 8 Port XGS-PON OLT is a high-capacity, next-generation Optical Line Terminal designed to meet the soaring bandwidth demands of modern Fiber-to-the-Home (FTTH), 5G mobile transport, and premium enterprise services. Fully compliant with the ITU-T G.9807.1 XGS-PON standard, this 8 port 10G GPON OLT delivers true symmetric 10 Gbps (9.953 Gbps line rate) in both downstream and upstream directions on each of its eight ports. Capable of supporting up to 128 subscribers per port for a total of 1,024 ONUs, this XGS-PON OLT empowers operators to offer symmetrical ultra-broadband services, cloud computing access, and high-performance backhaul from a compact, carrier-grade platform .
- Main Feature
● Rich Layer 2/3 switching features and Flexible management methods
● Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
● Support RIP、OSPF、BGP、ISIS and IPV6
● Safe DDOS and virus attack protection
● Support Power redundancy backup，Modular power supply
● Support power failure alalm
● Type C management interface
Full ITU-T G.9807.1 XGS-PON Compliance: Built with a dedicated 10G GPON chipset, this XGS-PON OLT 8 port guarantees seamless interoperability with standard XGS-PON ONUs from major vendors like Huawei, ZTE, Nokia, and Calix. It supports advanced features such as XGEM framing, 128-bit AES encryption, and Dynamic Bandwidth Allocation (DBA) optimized for 10G symmetrical flows .
Eight Symmetric 10G Ports – 1024 High-Speed ONUs: Each of the eight XGS-PON ports on this 10G GPON OLT supports a split ratio of up to 1:128, aggregating up to 1024 subscribers per chassis. The symmetric 10G capability ensures that bandwidth-intensive applications—such as 8K video conferencing, multi-cloud synchronization, and 5G eCPRI front-haul—receive unparalleled upload and download performance without bottlenecks .
Flexible High-Capacity Uplink Options: Equipped with a mix of 10GE SFP+ and 40GE/100GE QSFP+ uplink ports, this 8-port XGS-PON OLT seamlessly connects to core IP/MPLS networks. This high-speed backhaul capacity future-proofs your network, easily absorbing aggregated traffic from hundreds of active 10G ONUs .

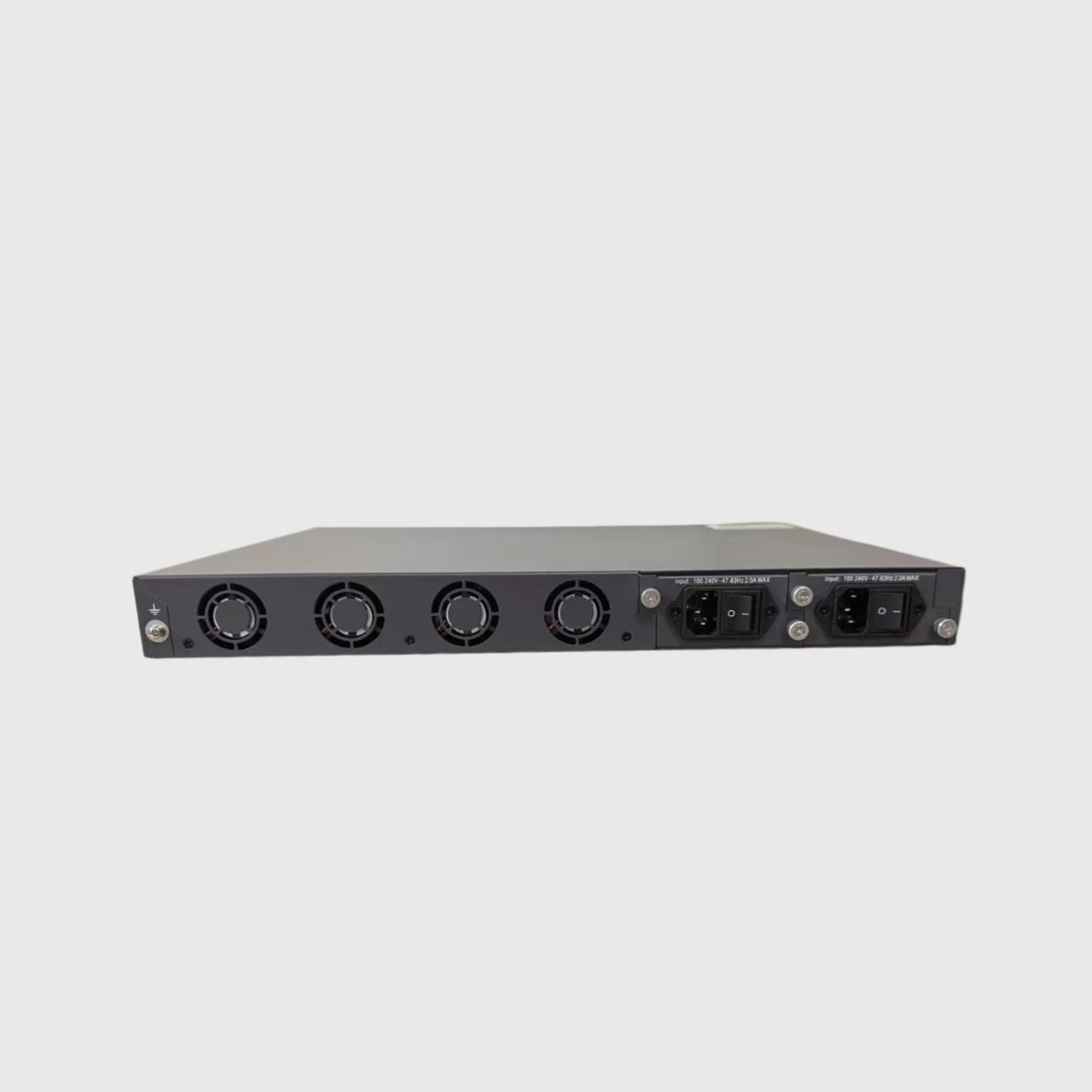

Carrier-Grade Redundancy & Modularity: The XGS-PON Optical Line Terminal features fully hot-swappable, load-sharing redundant power supplies (AC/DC) and fan modules. Service line cards are also hot-swappable, enabling maintenance and upgrades with zero service interruption—a critical requirement for 99.999% availability in central office environments .
Advanced OMCI & NMS Integration: The 10G GPON OLT fully supports standard OMCI (ONT Management and Control Interface) for remote ONU discovery, configuration, performance monitoring, and bulk firmware upgrades. Integrated CLI, SNMP v1/v2/v3, and a modern Web GUI provide comprehensive management, while RADIUS/TACACS+ ensures secure AAA. This allows seamless integration into existing carrier OSS/BSS ecosystems .
Attributes | FG00-8P | ||
Exchange capacity | 104Gbps | ||
Packet forwarding rate | 77.376Mpps | ||
Memory and storage | memory：512MB, storage：32MB | ||
Management port | Console， Type C | ||
Port | 4*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 8*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 16*GPON Port，8*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
PON | Comply with ITU-TG.984/G.988 standard 60KM transmission distance 1:128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade | ||
VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ | ||
MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit | ||
ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection | ||
port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding | ||
Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports | ||
Mirroring | Support port mirroring Support stream mirroring | ||
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. | ||
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR | ||
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection | ||
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP | ||
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute | ||
Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ | ||
environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) | ||
environment friendly | China RoHs,、EEE | ||
weight | FG00-8P-04/08P:≤5kg FG00-8P-16P :≤6.5kg | ||

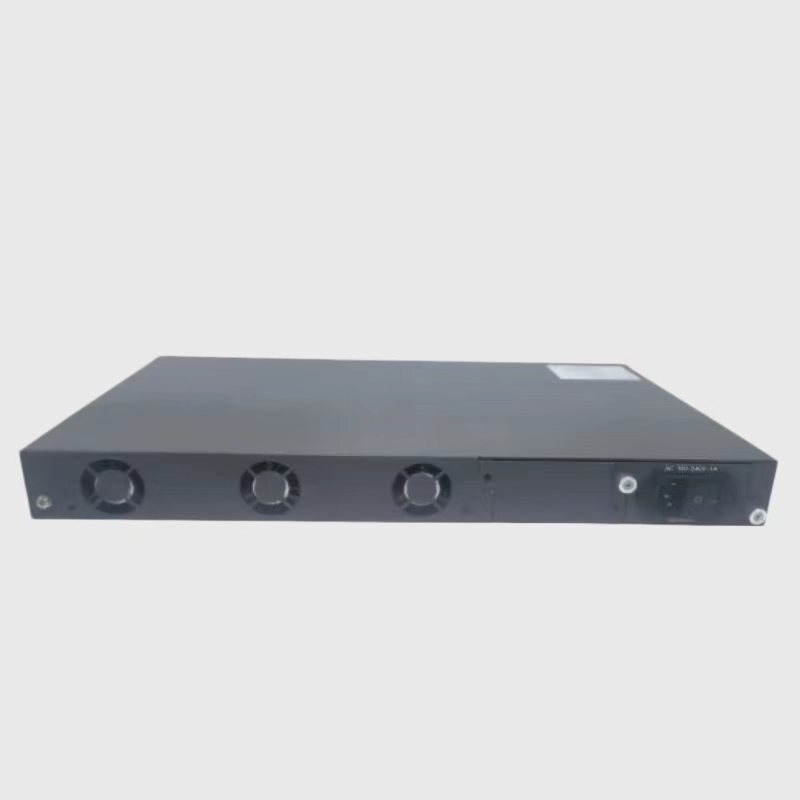

fan | Fixed fans（three fans） | ||
power | AC： 100～240V 47/63Hz； DC： 36V～75V； | ||
Power consumption | FG00-8P-04/08P: 65W FG00-8P-16P : 100W | ||
Dimensions (Width * height * depth) | FG00-8P-04/08P: 440mm*44mm*260mm FG00-8P-16P : 440mm*44mm*320mm | ||
Standards Compliance: ITU-T G.9807.1 XGS-PON, G.988 OMCI
Data Rate per Port: 9.953 Gbps Symmetric (Downstream / Upstream)
Max Split Ratio: 1:128 per Port (1024 ONUs Total)
Transmission Distance: Up to 20KM (N1 Class) / 40KM (N2 Class, optional)
Uplink Ports: 4 × 10GE SFP+ + 2 × 40GE QSFP+ (or 8 × 10GE, model-dependent)
Management Ports: 1 × RJ45 Out-of-Band Management, 1 × RJ45 Console
Switching Capacity: > 320 Gbps Non-blocking
VLAN Features: 802.1Q, QinQ, VLAN Translation, up to 4096 VLANs
Multicast: IGMP v1/v2/v3 Snooping & Proxy, MLD Snooping
QoS: 802.1p/DSCP, per-ONU DBA profiles, 8 queues per port, SP/WRR/DRR
Security: 128-bit AES, ACL (L2/L3/L4), MAC Filtering, DHCP Snooping, ARP Inspection
Redundancy: Dual hot-swap PSUs (AC/DC), redundant hot-swap fan tray
Management: OMCI (G.988), SNMP v1/v2/v3, CLI, Telnet, SSH, Web GUI, RADIUS, TACACS+
Form Factor: 2U 19-inch rack-mountable
Power Supply: AC 100-240V or DC -48V (Redundant)
Power Consumption: < 250W (Typical, fully loaded)
Operating Temperature: 0°C to 50°C

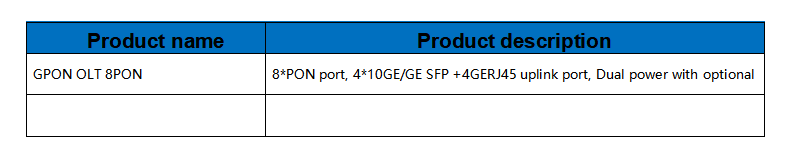

Ordering Information
Deploying true symmetric 10G for your FTTH or 5G network? The 8 port XGS-PON OLT is your future-proof foundation. [Contact our sales team] for detailed technical documentation, competitive pricing, and a live demonstration.
FAQ
Q: How does XGS-PON differ from traditional GPON, and why is it important?
A: Traditional GPON offers 2.5 Gbps down and 1.25 Gbps up—an asymmetric model. XGS-PON, defined in ITU-T G.9807.1, delivers symmetric 10 Gbps (9.953 Gbps). This is critical for modern applications like 5G fronthaul, cloud computing, remote work, and video surveillance, where upload speed is as vital as download. This XGS-PON OLT provides that perfect symmetry without sacrificing density or split ratio .
Q: Can this 8 port XGS-PON OLT coexist with my existing GPON ONUs?
A: Yes, using Combo PON technology. The XGS-PON OLT supports Combo XGS-PON/GPON optical modules (optional), which allow it to simultaneously serve legacy GPON ONUs and new XGS-PON ONUs on the same fiber via WDM. This ensures a smooth, non-disruptive migration from 1G to 10G. Pure XGS-PON modules are also available for greenfield deployments .
Q: What split ratio can I achieve with this OLT over 20km?
A: This 10G GPON OLT supports up to a 1:128 split ratio per port with N1-class optics, allowing a maximum of 1,024 ONUs per chassis over a 20km reach. For higher per-subscriber bandwidth, operators often deploy 1:32 or 1:64 splits, perfectly balancing cost and performance for 300-600 business subscribers per OLT .
Q: Is this XGS-PON OLT suitable for 5G mobile backhaul and fronthaul?
A: Absolutely. Symmetric 10G, ultra-low latency, and precise OMCI-based management make this 8 port XGS-PON OLT ideal for aggregating 5G small cells, distributed units (DUs), and centralized units (CUs). It meets the stringent timing and throughput requirements of O-RAN transport networks, offering a converged fixed-mobile access platform .
Q: How do I manage and provision over a thousand ONUs efficiently?
A: The XGS-PON Optical Line Terminal incorporates a comprehensive OMCI implementation for bulk ONU auto-discovery, configuration, and background firmware upgrades. The CLI and SNMP-based NMS support service templates, enabling you to provision hundreds of ONUs in minutes. Real-time optical diagnostics (DDM) per ONU allow proactive fault identification .
Our Company
Company Profile
Shenzhen Feituo Technology Technology Co., Ltd. was established in 2016 by senior technicians engaged in the optical communication industry and have more than ten years of experience in PON R&D and production. Specializing in providing customers with XGS-PON/XGPON/GPON/EPON ONU and OLT optical communication products R&D, production, sales and technical OEM/ODM services, the main products are: XGS-PON/XGPON/GPON/EPON ONU and OLT, optical fiber transceivers, optical fiber switches, voice gateways, wireless APs, optical fiber patch cords, optical splitters and other passive optical accessories.
Company advantages
The company has many excellent industry senior talents, mature market channels and good business reputation, since our products entered the market, with reliable product quality, reasonable market price, high-quality technical services quickly opened the market, received good feedback from customers, business has spread to Southeast Asia, Europe, America more than 30 countries and regions around the world.
Technology
We provide professional technicians to support customers' pre-sales and after-sales services, one-on-one guidance for customers to debug the computer room networking system, and can debug equipment remotely or on-site for customers, so that customer projects can be carried out smoothly.
service
It can provide one-stop service for passive optical network systems, provide professional consultation and answers to questions about GPON/EPON networking solutions for system integrators, assist customers in optimizing system networking solutions, save procurement time and procurement costs for customers, and get the best quality solutions for engineering projects.
Quality policy
With "perseverance in service, excellent quality and highly competitive cost, to meet customer needs" as its own quality policy, we always adhere to providing customers with high-quality products and services, and strive to obtain 100% customer satisfaction, and become a high-quality supplier worthy of customer trust and choice.
Quality control
The company has a complete testing system, and every equipment that leaves the factory has been tested and inspected. From the incoming material, production, testing, packaging and other processes of the product are quality control, the quality of the factory product is guaranteed to the greatest extent.
Our company's after-sales service has a dedicated line, and the supplier promises to provide free warranty within one year from the date of delivery due to product quality problems (not damage caused by improper use by users), lifelong maintenance (only maintenance costs are charged).
Company evaluation
Delivery Just-in-Time: 100%
Customer satisfaction > 95 points (quarterly)
Product Wholesale Pass-Through Rate>98% (Month)
Customer complaint rate<1% (month)
Corporate culture
Integrity-based, innovation as the soul, step by step, to build a reputable brand, think about what customers think, constantly surpass, and strive for perfection.
With the idea of "the next process is the user", we pay attention to professional ethics and professional responsibility, build a corporate image, create high-quality projects, be responsible for the project, and satisfy customers.

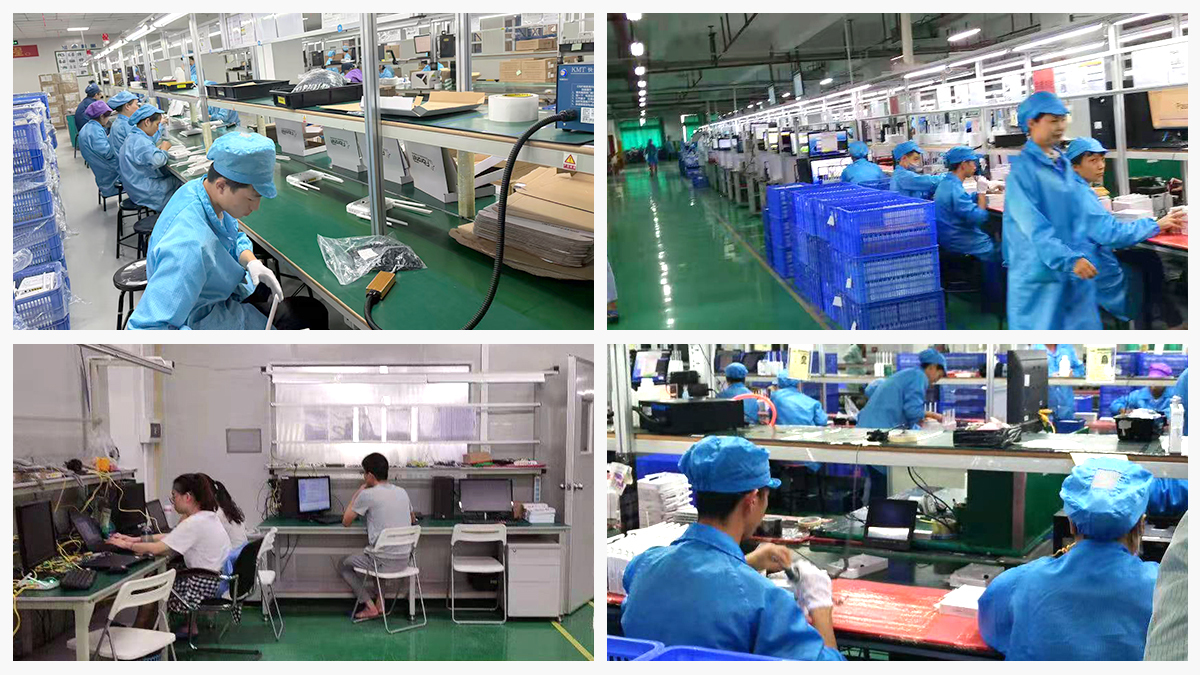

Factory Introduction

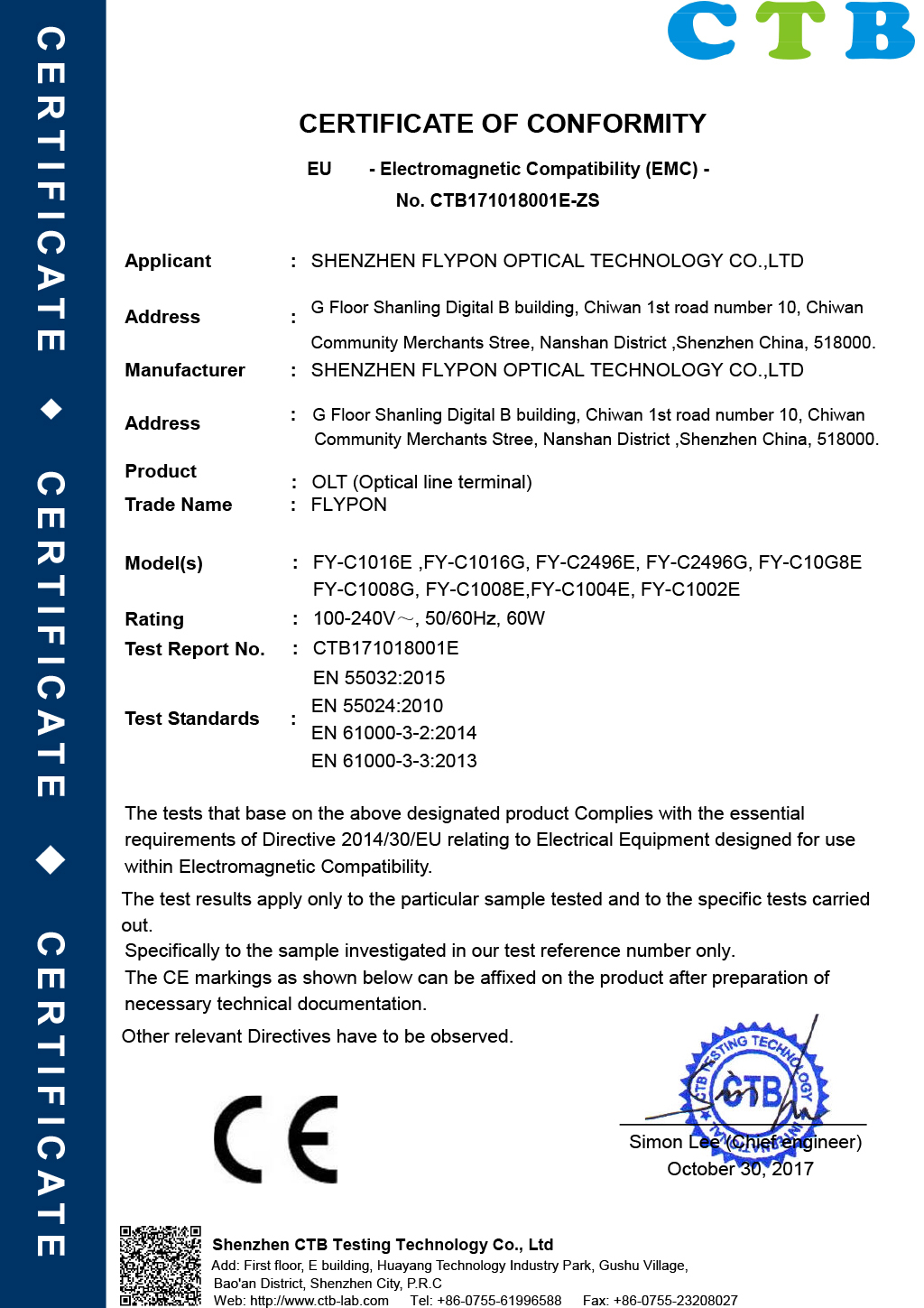

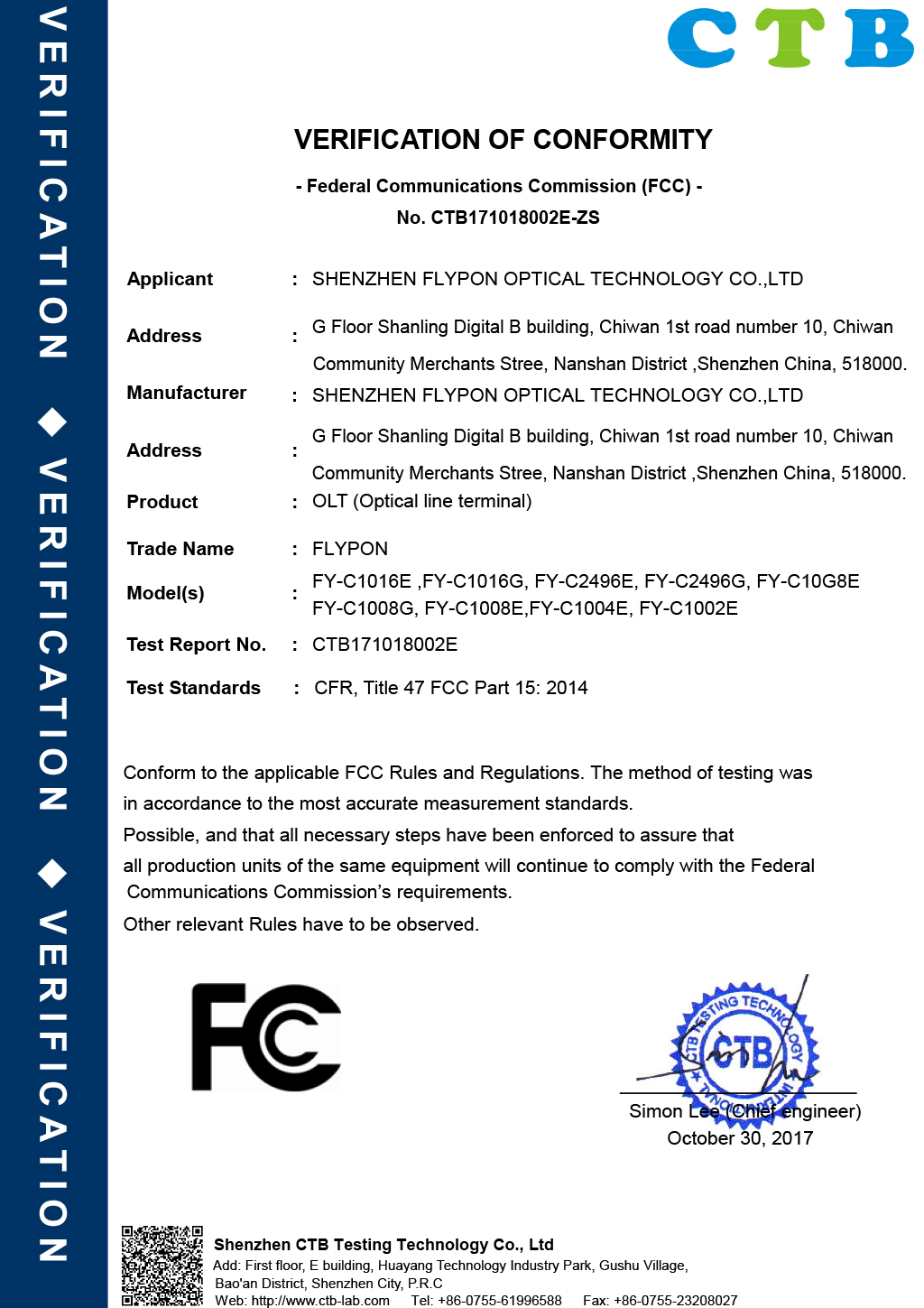

Our Certifications
The company focuses on the research, development, production, and sales of optical communication equipment. With years of experience in the optical communication field, it has a complete manufacturing system and quality control capabilities.

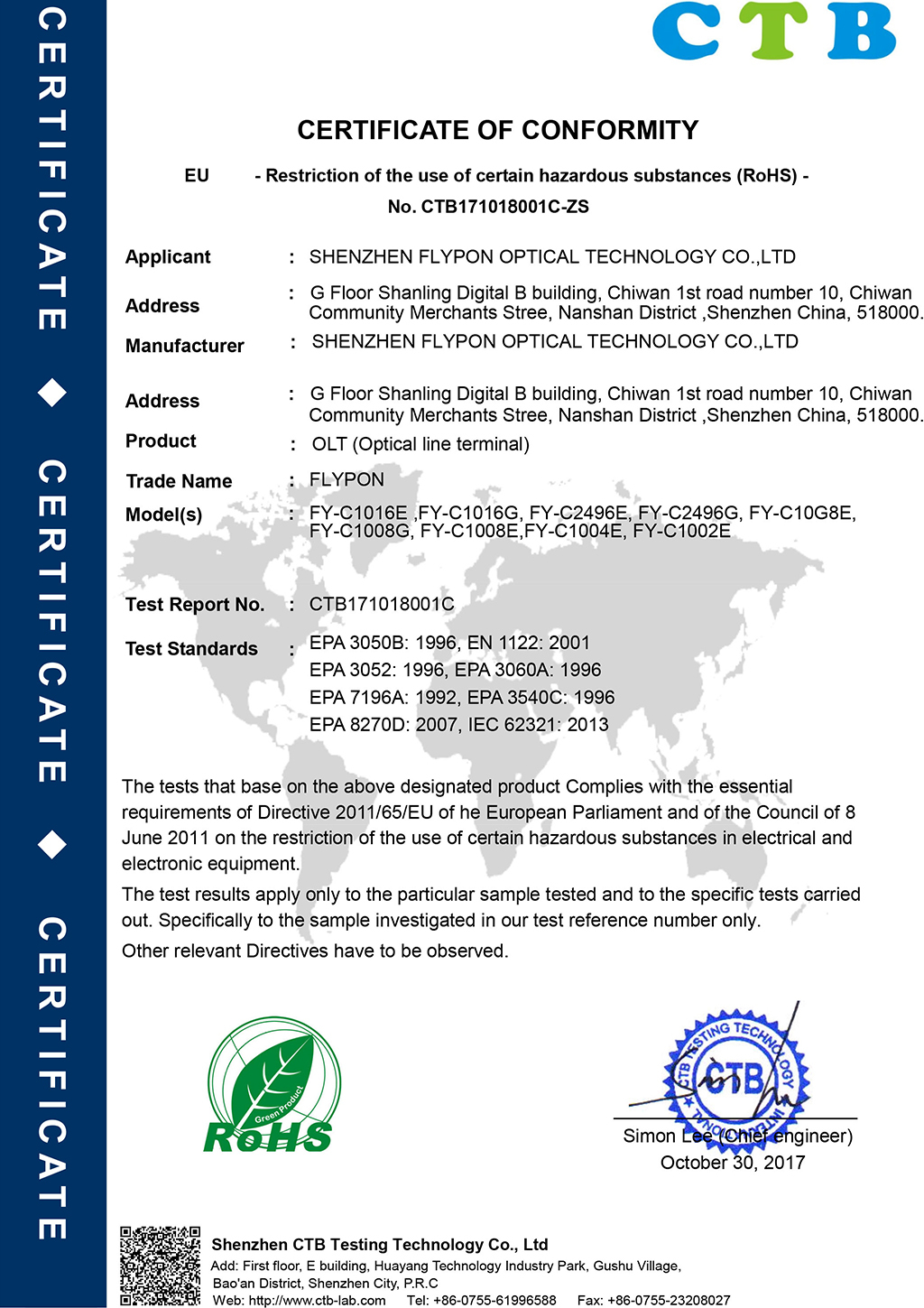

The company strictly adheres to national and international standards, fully obtaining China Compulsory Certification (3C) and other authoritative international certifications such as UL. Its product performance, safety indicators, electromagnetic compatibility, and environmental protection meet industry-leading levels, capable of satisfying market access and large-scale application needs both domestically and internationally.
