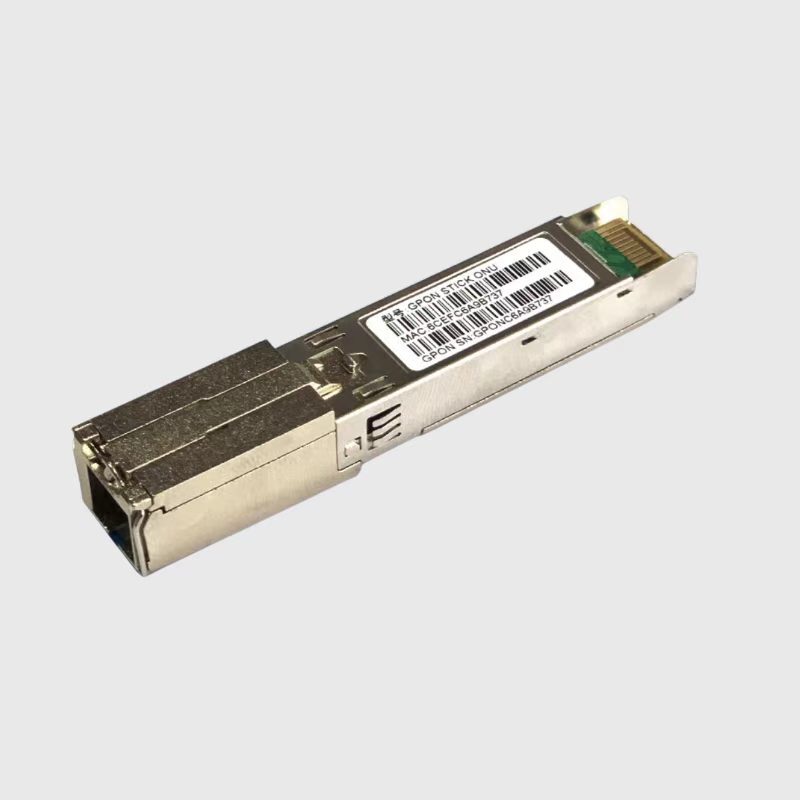

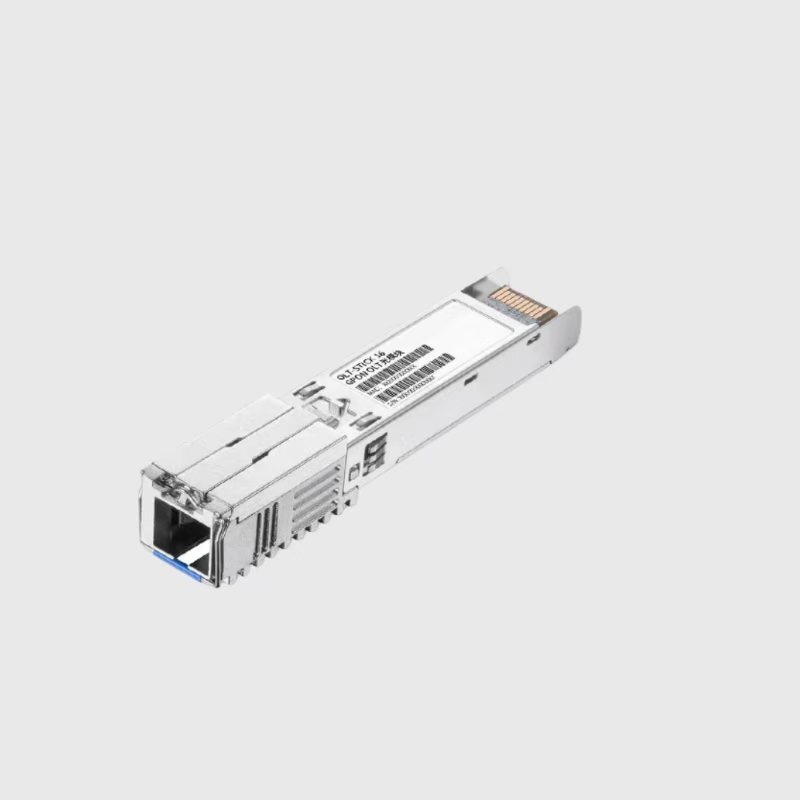

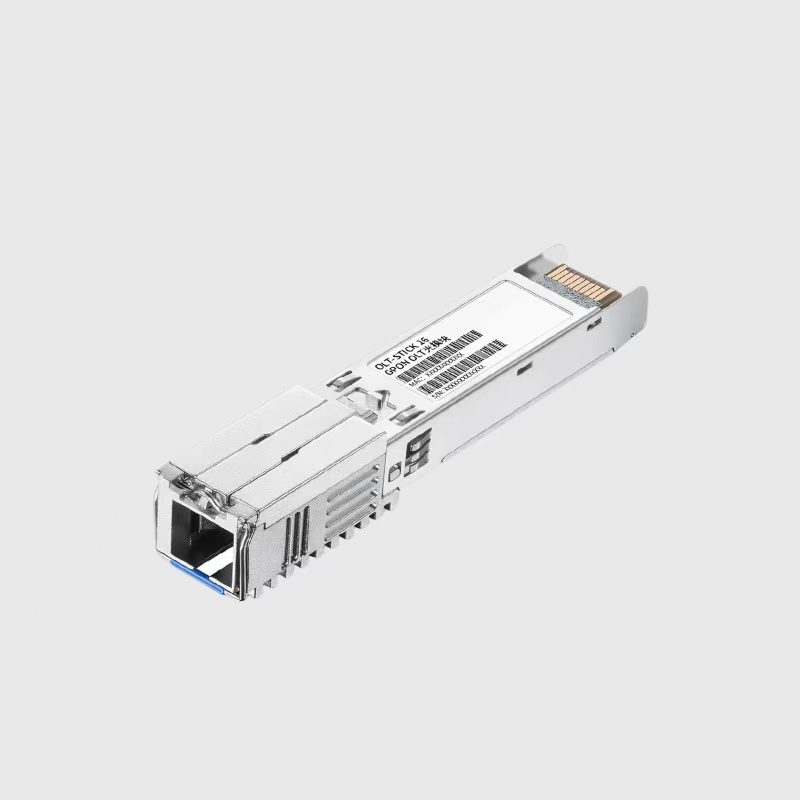

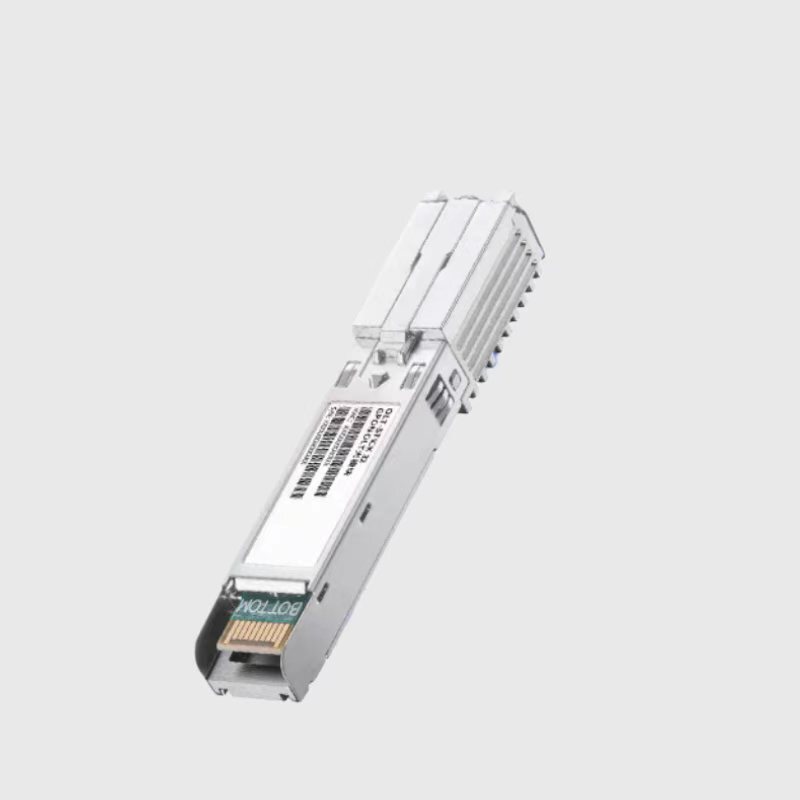

PON Stick SFP Module | GPON/EPON ONU SFP Transceiver | Plug-and-Play Fiber Access Terminal

Summary

The Flypon PON Stick SFP Module is an innovative, all-in-one Optical Network Unit (ONU) condensed into a standard Small Form-factor Pluggable (SFP) package. Designed to replace traditional desktop ONTs/ONUs, this PON Stick integrates a full PON MAC layer, bidirectional optical transceiver, and advanced management protocols within a compact, hot-pluggable module. By simply inserting it into an existing SFP/SFP+ port on a switch, router, or firewall, the host device instantly becomes a fully functional GPON or EPON terminal—eliminating the need for separate power supplies, external enclosures, and complex cabling. It is the ultimate solution for ISPs and enterprises seeking a cost-effective, space-saving method to deliver high-speed fiber broadband while maximizing existing infrastructure investments .

Key Features :

· All-in-One ONU in SFP Form Factor: This SFP ONU Stick fully integrates a complete GPON/EPON ONU—including MAC, optics, and management—into an SFP-compliant housing with an SC/UPC or SC/APC optical connector. By plugging directly into standard SFP cages, it transforms legacy Ethernet equipment into native fiber access terminals without requiring external power adapters or dedicated rack space .

· Dual-Mode GPON/EPON Operation: Built with advanced dual-mode firmware, the GPON/EPON SFP Stick automatically detects and links with both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) OLTs. This ensures maximum deployment flexibility and simplifies inventory management for operators managing mixed or migrating PON environments .

· Plug-and-Play Simplicity with Comprehensive OLT Interoperability: The PON Stick Module is designed for zero-touch provisioning. Once inserted, it auto-negotiates with the OLT and supports standard OMCI (ONT Management and Control Interface) for GPON and OAM for EPON. It is extensively tested for compatibility with major OLT vendors including Huawei, ZTE, Nokia, FiberHome, and Calix .

· Remote Management & Digital Diagnostics Monitoring (DDM): Fully compliant with SFF-8472 MSA, this module supports real-time Digital Diagnostics Monitoring (DDM). Network administrators can remotely monitor critical parameters such as optical Tx/Rx power, module temperature, laser bias current, and supply voltage—enabling proactive fault detection and reducing Mean Time To Repair (MTTR) .

· Ultra-Low Power & Industrial-Grade Reliability: With typical power consumption under 1.5W-2.5W (drawn directly from the host SFP port), this SFP ONU Stick significantly reduces energy costs compared to external ONUs (typically 5-10W). Available in both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges, it ensures reliable operation in harsh, uncontrolled environments like outdoor cabinets and base stations .

· Flexible Configuration & Customization: Features a built-in Web GUI and Telnet/SSH interface for manual configuration of parameters such as Serial Number, MAC address, and VLAN settings. This allows operators to customize the module for specific network policies and subscriber identification without specialized programming tools .

• Product Feature




  ●  Be provided with asymmetric TX 1244mbps / RX 2488mbps GPON ONU application function of single fiber bidirectional data link with GPON mac, single fiber bidirectional data link asymmetric TX 1250mbps / RX 1250mbps EPON ONU application function, EPON MAC built inside, with SC/UPC connector. Plug and play through auto discovery and configuration.
  ● 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver.
  ● 3.3V single power supply.
  ● Digital diagnosis monitor interface compatible with SFF-8472.
  ● Digital diagnosis monitor can be retrieved remotely through OLT.
  ● Meet SFP MSA.
  ● Low EMI and excellent ESD protection.
  ● Class I laser safety standard in accordance with IEC-60825.
  ● Meet RoHS
  ● It complies with the SFF-8074i protocol (MSA)
  ● Meet IEEE802.3AH
  ● Meet ITUT-T G.984.2，G.984.2.
  ● It conforms to the specification of ITU g.988 ONU management and control interface (OMCI).

•

•

•


Parameter

· Model: PON Stick SFP Module – Miniaturized ONU for Direct Fiber Access Over Existing SFP Slots

· Form Factor: SFP (Small Form-factor Pluggable), MSA Compliant

· Connector Type: SC/UPC or SC/APC (Single Fiber)

· PON Standards:

  · GPON: ITU-T G.984.x, G.988 OMCI

  · EPON: IEEE 802.3ah, OAM

· Data Rate (GPON): 1.244 Gbps Upstream / 2.488 Gbps Downstream

· Data Rate (EPON): 1.25 Gbps Symmetric

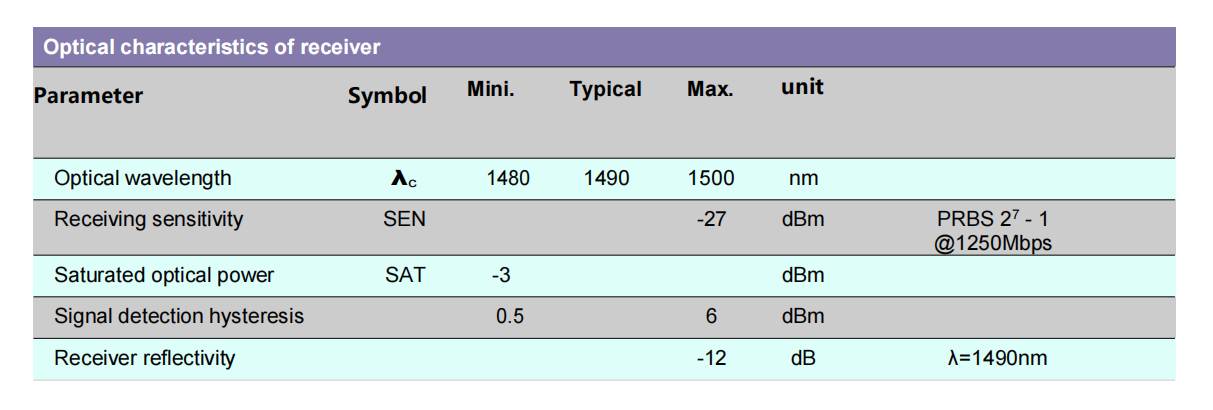

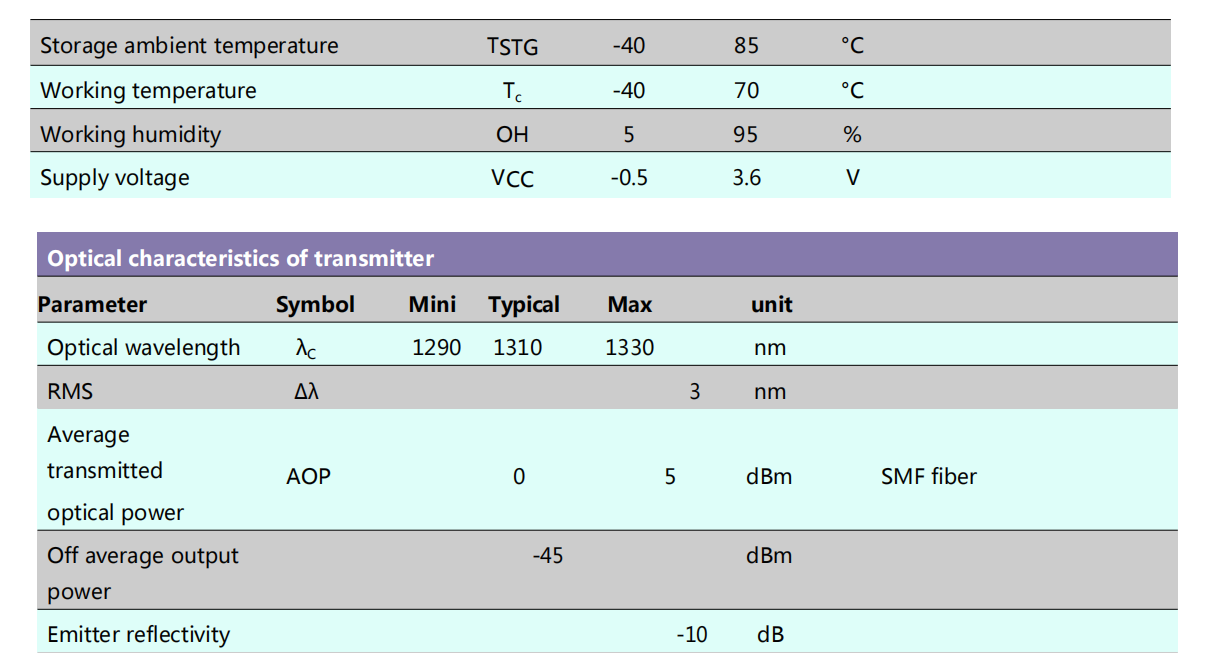

· Wavelengths: TX 1310nm (Burst-Mode DFB) / RX 1490nm (Continuous-Mode APD/TIA)

· Optical Budget: Class B+ (28dB typical)

· Transmission Distance: Up to 20KM

· Split Ratio: Up to 1:128 (GPON) / 1:64 (EPON)

· Digital Diagnostics: SFF-8472 DDM (Tx/Rx Power, Temperature, Vcc, Bias)

· Management: OMCI (GPON), OAM (EPON), Web GUI, Telnet, SSH

· VLAN/QoS: 802.1Q Tag/Untag, 802.1p Priority, Rate Limiting

· Multicast: IGMP Snooping v1/v2/v3

· Security: 128-bit AES Encryption (GPON), MAC Filtering

· Power Supply: 3.3V from Host SFP Port

· Power Consumption: < 2.5W (Typical)

· Operating Temperature (Commercial): 0°C to 70°C

· Operating Temperature (Industrial): -40°C to 85°C

· Operating Humidity: 10% to 90% RH (Non-condensing)

· Dimensions (W×D×H): 13.7mm × 56.5mm × 11.8mm (Standard SFP)

· Net Weight: ~20g

· Certifications: CE, FCC, RoHS

FAQ:

Q: What exactly is a PON Stick SFP Module, and how does it differ from a standard SFP transceiver?

A: A standard SFP transceiver (e.g., 1000BASE-LX) only performs optical-to-electrical conversion and requires an external device (like a switch or router with its own MAC) to handle all network protocols. A PON Stick SFP Module is fundamentally different: it contains a full integrated PON MAC layer. This means the module itself acts as a complete ONU, handling MPCP (Multi-Point Control Protocol), OMCI/OAM management, AES encryption, and DBA. It directly terminates the PON protocol, allowing the host device to simply see native Ethernet traffic without needing any PON-specific software or hardware capabilities .

Q: Can I use this PON Stick in any switch with an SFP port?

A: The module is compliant with the SFP MSA (Multi-Source Agreement) standard and fits physically into standard SFP and most SFP+ cages. However, the host device must be configured to accept a third-party SFP module and should be set to a compatible speed (typically 1Gbps, though the SFP+ port may need to be forced to 1G speed). It works reliably with a wide range of managed and unmanaged switches, routers, and wireless access points from vendors like MikroTik, Cisco, Ubiquiti, and TP-Link, but we recommend checking our compatibility list for specific host device support .

Q: Will this PON Stick work with my ISP's OLT (Huawei, ZTE, Nokia)?

A: Yes, this GPON/EPON SFP Stick is designed for broad interoperability and is extensively tested with major OLT vendors including Huawei, ZTE, Nokia (Alcatel-Lucent), FiberHome, Calix, and Dasan. It supports standard OMCI (for GPON) and OAM (for EPON) management protocols to ensure seamless registration and provisioning. For specific ISP configurations (e.g., LOID/PLOAM password, Serial Number authentication), the module's Web GUI allows you to manually enter these credentials .

Q: How do I configure the Serial Number, LOID, or MAC address on the PON Stick?

A: The SFP ONU Stick features a built-in Web GUI accessible via the host device's management IP or by temporarily assigning an IP to the module's interface. Through this interface (or Telnet/SSH), you can manually change the GPON Serial Number, LOID (Logical ONU ID), password, and other provisioning details required for OLT authentication. This allows the module to be customized for "bring your own device" (BYOD) ISP scenarios or for specific operator network policies .

Q: What are the power and cooling requirements for this module?

A: This PON Stick Module is exceptionally energy-efficient. It draws power directly from the host device's SFP port (3.3V), with a typical power consumption of less than 2.5W. This eliminates the need for an external power adapter, reduces electricity costs by up to 60% compared to traditional ONUs, and simplifies power backup—a single UPS for the host switch protects the entire fiber termination .

Q: Can I monitor the optical signal strength of this module remotely?

A: Absolutely. The module features built-in Digital Diagnostics Monitoring (DDM) compliant with SFF-8472. Using standard commands on the host switch/router or via SNMP monitoring tools, you can read real-time values for optical Tx power, Rx power, module temperature, laser bias current, and supply voltage. This is crucial for proactive maintenance, allowing operators to identify degrading fiber links before they cause service outages .

Q: Does this module support 10G XGS-PON?

A: This specific model is designed for GPON (2.5G/1.25G) and EPON (1.25G/1.25G) networks. For operators and enterprises requiring 10G symmetrical speeds, we offer an advanced XGS-PON SFP+ Stick (compliant with ITU-T G.9807.1) that delivers 10G downstream and upstream in the same compact form factor. Please inquire about our 10G PON Stick solutions for next-generation fiber deployments .
