86 Panel XPON ONU | Wall Plate Fiber ONT | 86-Type Dual Mode GPON/EPON Terminal /The Flush-Mount Fiber Terminal for Modern FTTR & FTTH

Description

 The 86 panel XPON ONU is a flush-mount wall plate ONT designed for standard 86-type boxes. This compact 86mm XPON ONU panel supports dual-mode GPON and EPON for FTTR and hotel fiber deployments, delivering carrier-grade performance.

The 86 panel XPON ONU is a next-generation wall plate ONT engineered for seamless in-wall fiber installation. Designed to fit perfectly into standard 86-type wall boxes, this 86 panel XPON ONU eliminates desktop cable clutter by delivering fiber connectivity directly from the wall. Whether deploying in luxury hotels, campus networks, or FTTR (Fiber-to-the-Room) residences, this 86-type panel ONU delivers a premium, unobtrusive connectivity experience.

Why Choose an 86-Type Wall Plate XPON ONU for FTTR?

Traditional desktop ONUs often create messy cabling and an unpleasant aesthetic. In contrast, the 86 panel XPON ONU acts as a faceplate-mounted fiber terminal. By integrating the ONT into the wall directly, this wall plate XPON ONU improves installation efficiency by over 40% compared to conventional enclosures. As a true 86mm panel type ONU, it features a compact 86mm×86mm form factor ensuring quick plug-and-play retrofit into existing wall boxes. This 86-type ONU panel is the preferred choice for operators and system integrators standardizing on invisible, high-speed whole-home fiber solutions.

Key Features of the 86mm Wall Plate XPON ONU

· Dual-Mode XPON ONU Panel: This XPON ONU 86-type ONT supports both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) dual-mode auto-adaptation, ensuring compatibility with a wide range of OLTs from Huawei, ZTE, and FiberHome.

· Gigabit & Multi-Gigabit Interfaces: The 86mm wall plate ONU comes with flexible port configurations (1GE, 2.5GE, or VoIP), meeting various triple-play service demands from a single 86 panel ONU.

· Carrier-Grade Management: This 86-type XPON wall ONT supports full OMCI/OAM for remote provisioning and monitoring, ensuring that the 86 panel XPON ONU can be centrally managed right from the NMS.

· Clean & Secure Design: The faceplate XPON ONU protects the fiber pigtail inside the 86-type box, preventing damage and maintaining a flawless interior appearance—perfect for this 86mm panel type ONU.

 Technical Specifications of the 86 Panel XPON ONU

Parameter Specification for 86 Panel XPON ONU

Product Type 86 Panel XPON ONU / Wall Plate ONT

Dimensions 86mm × 86mm × 33.3mm (Standard 86-Type)

PON Interface 1× XPON Port (SC/UPC) supporting GPON Class B+ & EPON PX20+

User Interface (Variant) Options: 1GE + 2.5GE + 1POTS / 1GE + WiFi 4 VoIP

Managed Protocols OMCI, OAM, Telnet, WEB, TR069

Power Supply AC 100–240V, suitable for global 86-type wall outlets

Installation Flush-mount into standard 86-type wall boxes

Ideal Installations for the 86-Type Wall Mount Fiber ONU

· Hotel Guest Rooms: Deliver ultra-fast fiber without visible clutter using the 86 panel ONU; the hotel wall plate ONT integrates the power socket and fiber port in one sleek panel.

· FTTR Home Networks: Deploy 86-type XPON ONU panels in each room for seamless whole-home roaming; the in-wall fiber ONU panel blends perfectly with any interior decor.

· Campus & Office: Retrofit existing 86-type wall boxes in campus offices and educational facilities with our 86mm panel type ONU to upgrade to gigabit fiber instantly.

  Frequently Asked Questions

Q: Can this 86 panel XPON ONU be retrofitted into an existing 86-type wall box?

A: Yes. The 86-type panel ONU is specifically designed to replace a standard power socket or blank faceplate. Its dimensions (86mm×86mm) allow direct installation into existing 86-type wall boxes.

Q: Is the 86mm wall plate ONU compatible with Huawei or ZTE OLTs?

A: Absolutely. This XPON ONU 86-type terminal supports standard OMCI/OAM and has been tested for compatibility with major OLTs from Huawei, ZTE, FiberHome, and VSOL, ensuring seamless interoperability in both GPON and EPON modes.

■ H2: Upgrade Your Connectivity with the 86 Panel XPON ONU

Transform your fiber termination from a nuisance into an architectural asset. The 86 panel XPON ONU unites high-speed multi-gigabit fiber and sleek design into one 86-type faceplate ONT. Contact our team today for a bulk quote on the 86mm wall mount XPON ONU, and discover why integrators globally are choosing the 86 panel ONU for their premium FTTR and hotel connectivity projects.

• Product Specification




  Product Dimensions	86mm×86mm×49mm(L×W×H)
  Net weight	N/A
  Running Status	Operating temperature: -30 ~ +70°C Operating humidity: 10 ~ 90% (non-condensing)
  Storage Status	Storage temperature: -30 ~ +70°C Storage humidity: 10 ~ 90% (non-condensing)
  Power Supply	100 ~ 240V AC, 50/60Hz
  Interface	1GE

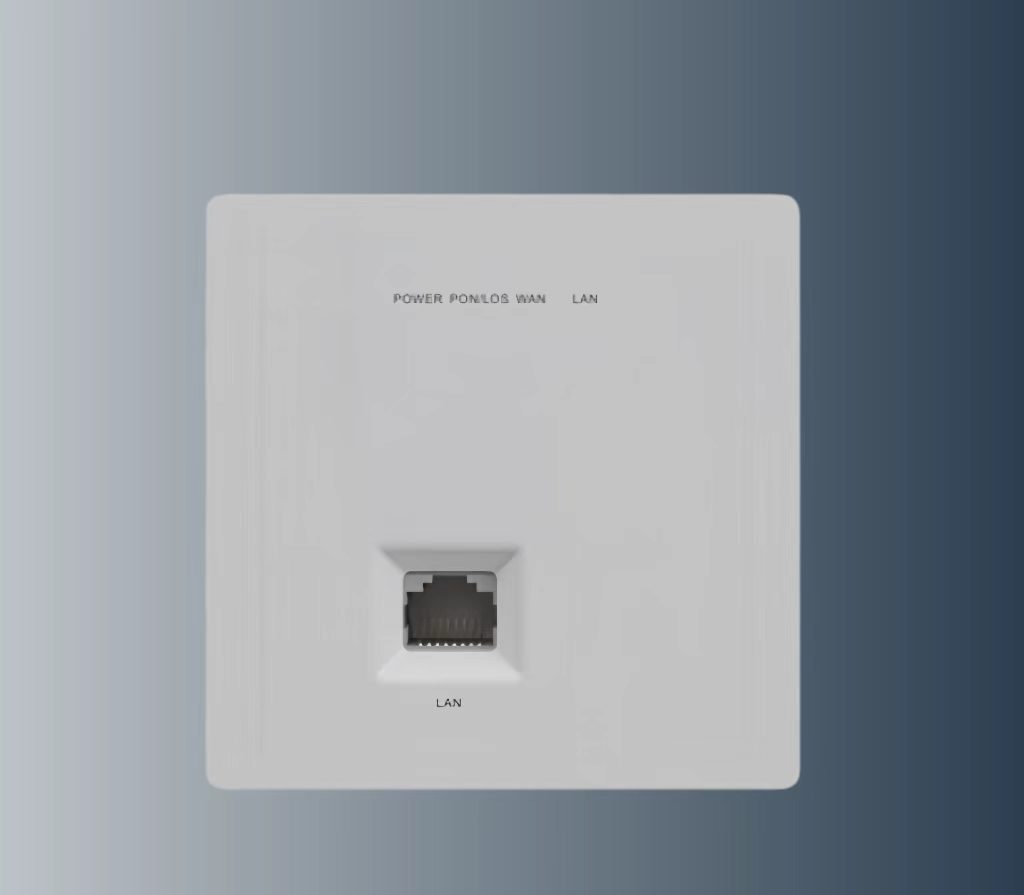

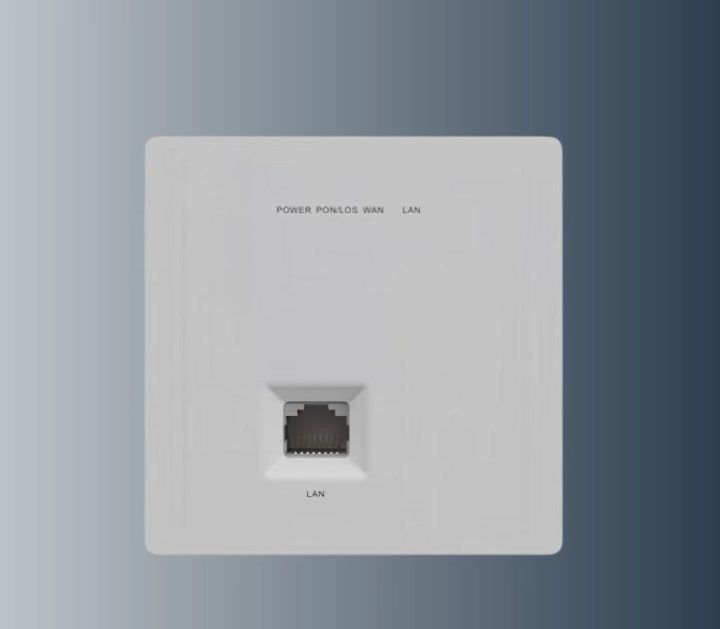

  Indicator Lights	PWR, PON, LOS, LAN1
  PON Port	•1 XPON port (EPON PX20+ and GPON Class B+) •SC single-mode, optical interface: SC/UPC connector •Transmit optical power: 0～+4dBm •RX sensitivity: -27dBm •Overload optical power: -3dBm (EPON) or -8dBm (GPON) •Transmission distance: 20KM •Optical wavelength: TX 1310nm, RX 1490nm
  User Interface	•1×GE adaptive Ethernet interface, RJ45 connector
  XPON Mode	Dual-mode technology, automatically connects to EPON/GPON OLT
  Uplink Mode	Bridge and routing modes
  Anomaly Protection	Detecting an unauthorized ONU and issuing a hardware fault warning.
  Firewall Technology	Supports DDoS attacks and supports filtering based on ACL/MAC/URL.
  Basic Functions	• Supports MPCP discovery and registration • Supports Mac/Loid/Mac+Loid authentication • Supports Triple Churning • Supports DBA bandwidth •Supports automatic detection, automatic configuration, and automatic firmware upgrades •Supports SN/Psw/Loid/Loid+Psw authentication
  Alarm	• Supports hardware failure alarms • Supports port loop detection alarms • Supports port connection loss alarms
  LAN	• Supports port rate limiting • Supports loop detection • Supports flow control • Supports storm control
  VLAN	• Supports VLAN Tags • Supports VLAN Transparent • Supports VLAN Trunk (maximum 8 VLANs) • Supports VLAN 1:1 Translation (maximum 8 VLANs) • Supports Automatic VLAN Detection
  Multicast	• Supports IGMPv1/v2/Snooping • Supports listening to up to 8 multicast VLANs • Supports listening to up to 64 multicast groups
  QOS	• Supports 4 queues • Supports SP and WRR • Supports 802.1P
  L3	• Supports IPv4/IPv6 • Supports DHCP/PPPoE/Static IP • Supports static routing • Supports NAT
  Manage	• Supports CTC OAM 2.0 and 2.1 • Supports ITU-T 984.x OMCI • Supports TR069/WEB/TELNET/CLI
